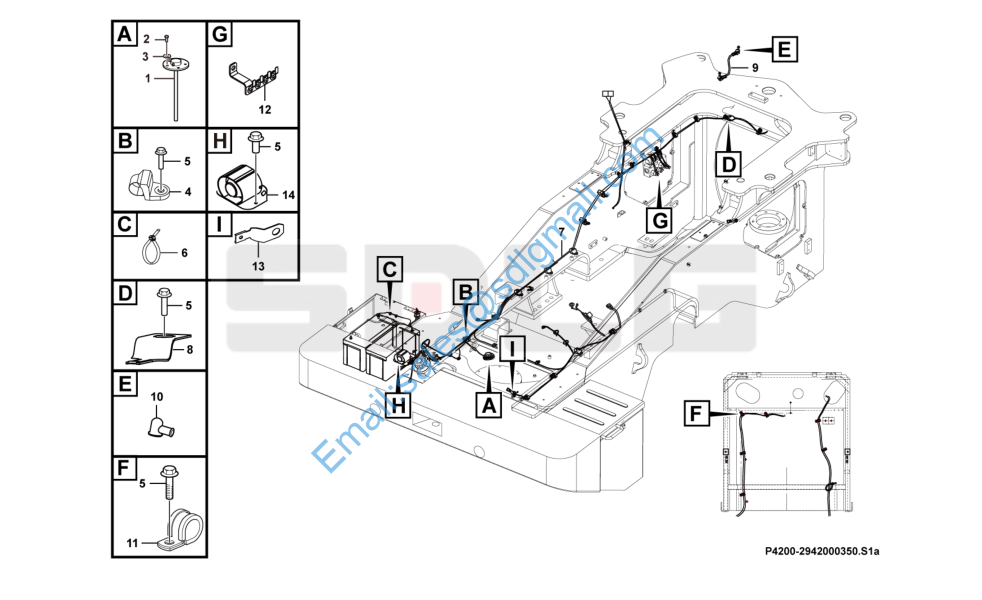

L978F 后车架电气总成 Rear frame electric assembly P4200-2942000350

1 4130001096 油位传感器RG2266型-M70 Fuel level sensor Y 1

2 4014000523 螺钉GB818-M5*16flZnyc-4.8-480 Screw Y 5

3 4015000431 垫圈GB97.1-5flZnyc-300HV-480 Washer Y 5

4 14400342 扎带 Strip clamp Y 24

5 4011001297 螺栓GB16674.1-M8*16flZnyc-8.8-480 Screw Y 38

6 4190000020 扎丝LG13-ZS4*250 Cable tie Y 12

7 29420003512 后车架线束 Wiring harness Y 1

8 4130001006 CLIP 1027-003-1200 Clip Y 3

9 4045000043 电瓶线LGB340-15*400P1L8L10-4 Battery cable Y 1

10 26370002441 黑电瓶线护套 Cable sleeve Y 3

11 4041002410 管夹LGB169-A12*10 Clamp Y 6

12 29420001301 支板 Plate Y 1

13 26370002011 接插件固定卡 Clip Y 1

14 4130000121 倒车蜂鸣器KSHM-12F4 Buzzer Y 1
