WD10G220E23 4110001014 空压机组件612600130496 Air compussor assembly

1 4110001755045 进气接头612600130499 Nipple N 1
2 4110001755044 水冷单缸空压机612600130497 Compressor N 1
3 4110001755043 排气接头612600130425 Nipple N 1

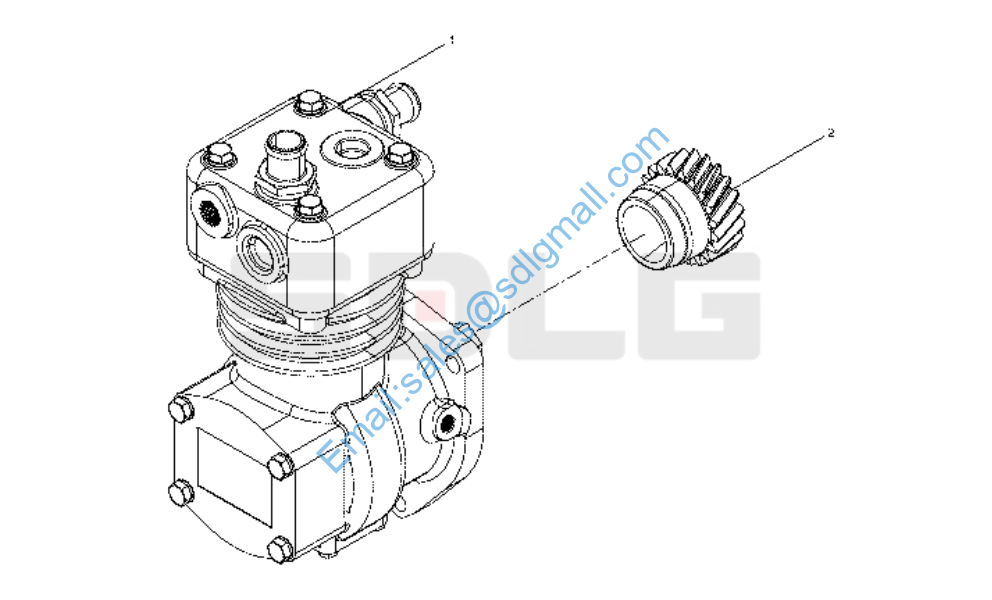

WD10G220E23 4110001014 空压机总成612600130651 Air compussor assembly

1 4110001015033 水冷单缸空压机总成612600130496 Air compressor Y 1
2 4110000924182 空压机齿轮612600130309 Gear Y 1

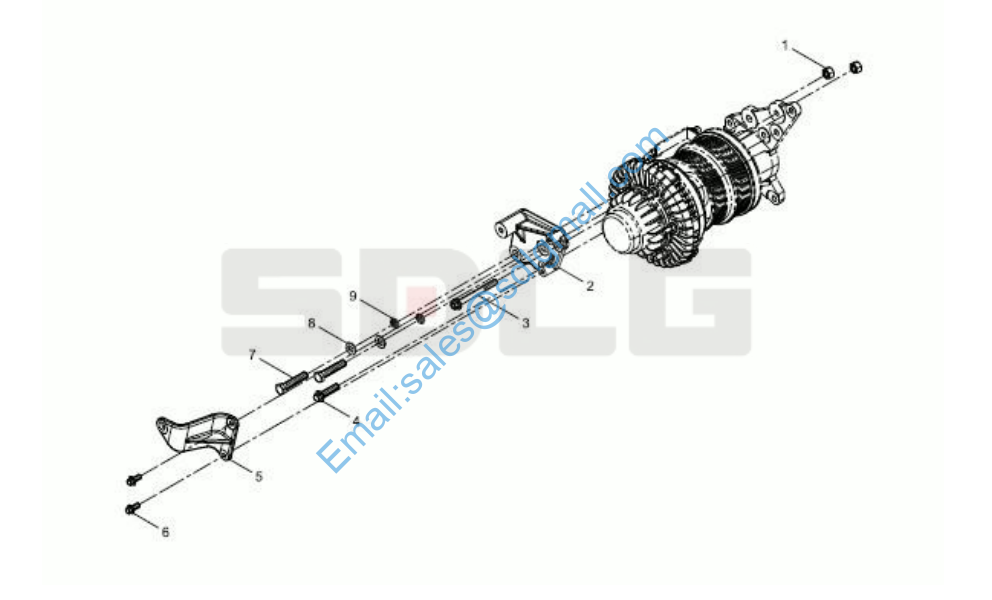

WD10G220E23 4110001014 发电机支架结合组 Alternator bracket

1 4110000924115 1型六角螺母90012210004 Nut Y 2
2 4110001015027 发电机支架612600090680 Bracket Y 1
3 4110000924124 六角法兰面承面带齿螺栓612600061713 Screw Y 1
4 4110000924129 六角法兰面承面带齿螺栓90011430036 Screw Y 1
5 4110000113010 固定板612600090442 Bracket Y 1
6 4110001014005 六角法兰面承面带齿螺栓90011430016S Screw Y 2
7 4110000924101 六角头螺栓90003802655 Screw Y 2
8 4110001016009 平垫圈90014040009 Plain washer Y 2
9 4110000924114 弹簧垫圈90003931142 Spring washer Y 2
