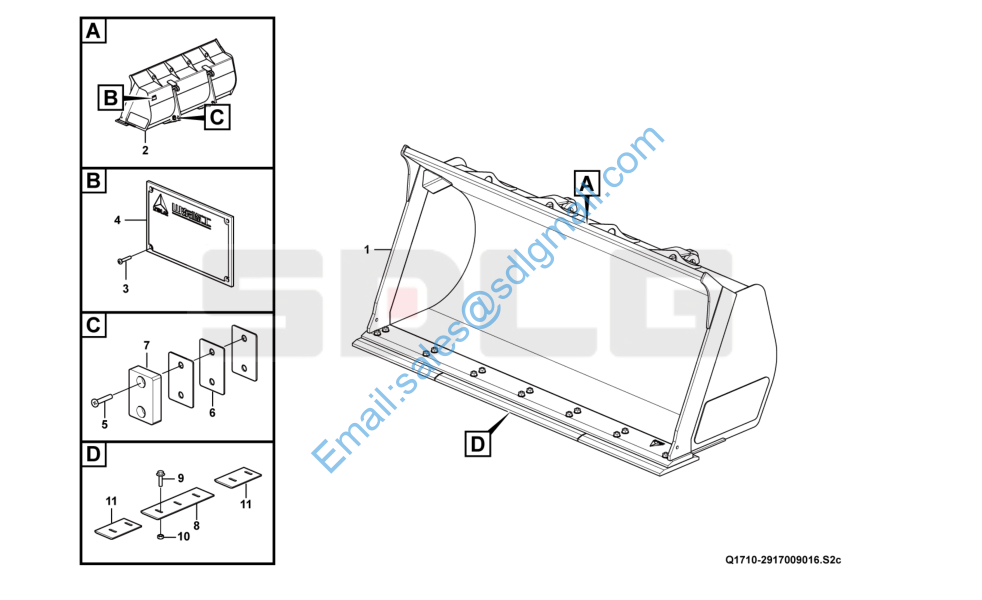

LG936L Q1710-2917009016 铲斗总成 Bucket

LG936L Q1710-2917009016 铲斗总成 Bucket

1 29170090162 铲斗总成 Bucket Y 1
2 29170077322 铲斗 Bucket Y 1
3 4019000012 铆钉GB827-35-BL2 Rivet Y 4

4 29170112941 铲斗铭牌 Name plate N 1

5 4011000448 螺钉GB70.1-M830EpZn-8.8 Screw Y 4
6 29170031751 垫片 Shim Y 6
7 29170031761 定位板 Retaining plate Y 2
8 29170096481 中耐磨板 Wear plate Y 1
9 4040000007 螺栓LGB002-M16*70 Bolt Y 14
10 4013000350 螺母GB6177.1-M16EpZn-10 Nut Y 14
11 29170096471 耐磨板 Wear plate Y 2

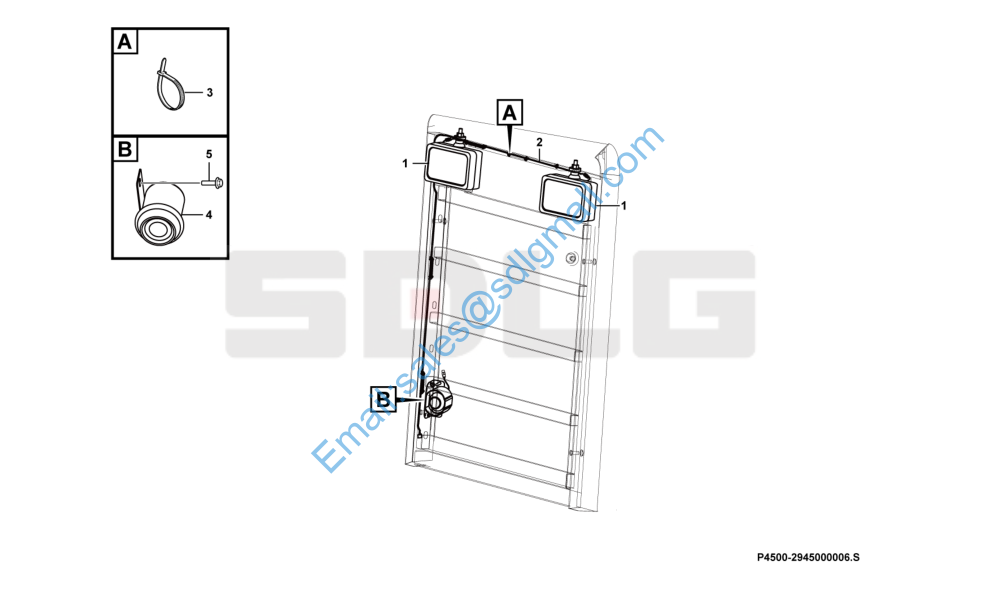

LG936L P4500-2945000006 机罩电气总成 Engine hood electric system

1 4130001685 工作灯14886-H3-24V Lamp Y 2

2 29450000072 后罩线束 Wiring harness Y 1

3 4190001839 扎丝LG13-ZS4160 Cable tie Y 10
4 4130000121 倒车蜂鸣器KSHM-12F4 Buzzer Y 1
5 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 2

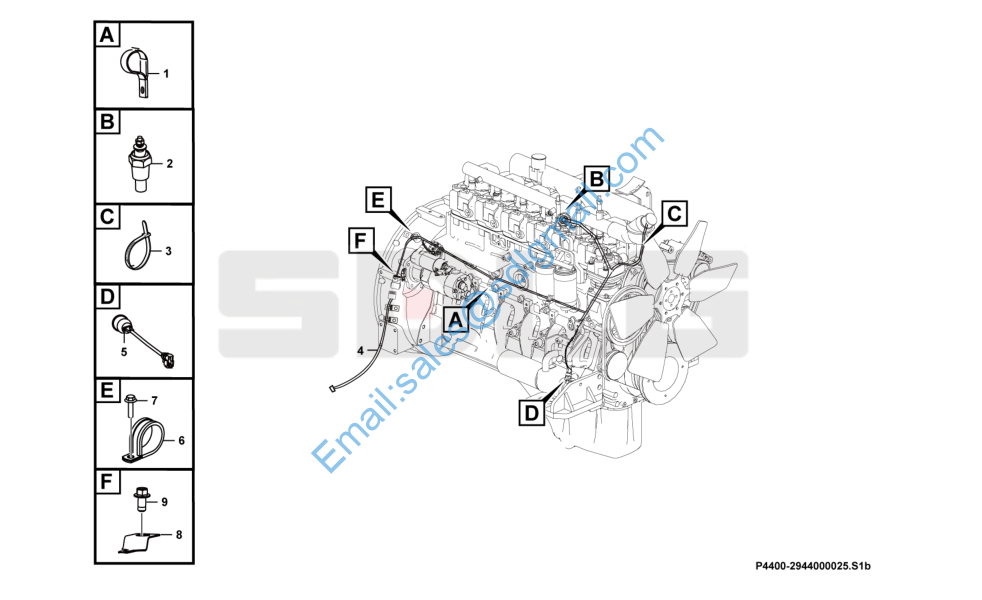

LG936L P4400-2944000025 Engine electric system

LG936L P4400-2944000025 Engine electric system

1 29370018651 管夹Φ12 Clamp Y 2
2 4130000202 温度传感器WDG1371 Temperature sensor Y 1
3 4190001832 扎丝RTGB-200ST Cable tie Y 7
4 29440000261 发动机线束 Wiring harness N 1
5 4130001296 机油压力开关YK208B1 Pressure switch Y 1
6 26370001911 管夹 Clamp N 1
7 4011000488 螺栓GB16674-M1016EpZn-8.8 Bolt Y 1

8 4130001450 CLIP 1027-005-1200 Clip Y 1

9 4011000137 螺栓GB16674-M1220EpZn-8.8 Bolt Y 1
