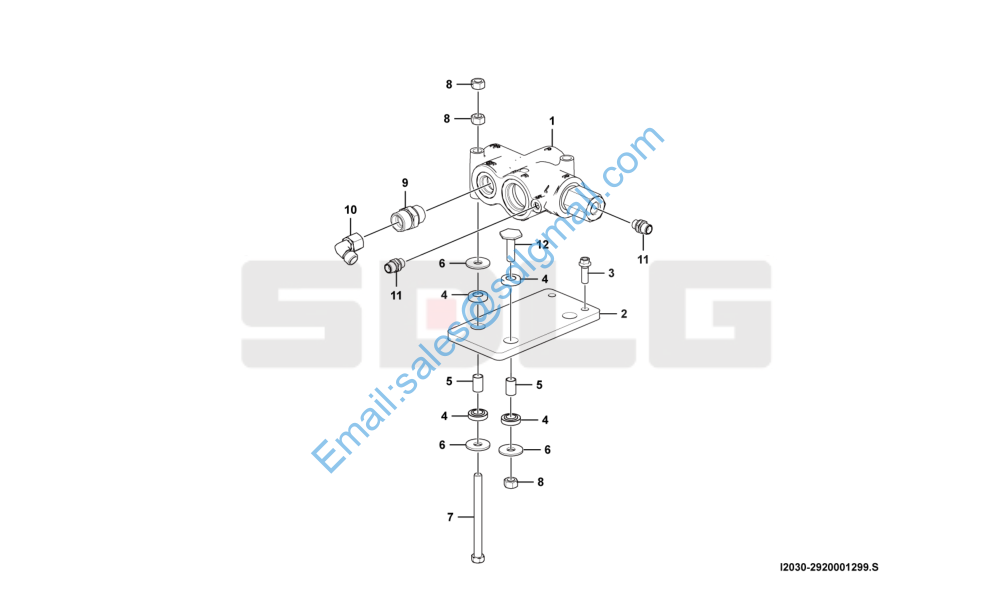

L989F I2030-2920001299 优先阀VLH-240部装 Priority valve

1 4120002730 优先阀VLH-240 Priority valve Y 1

2 29200013001 板 Plate Y 1

3 4011001375 螺栓GB16674.1-M12*30flZnyc-8.8-480 Bolt Y 2

4 11220538 减震垫 Damper mat Y 6

5 29200013011 钢套 Thimble Y 3

6 4015000427 垫圈GB96.1-12flZnyc-300HV-480 Washer Y 5

7 4011001335 螺栓GB5782-M12*130flZnyc-8.8-480 Screw Y 2

8 4013000368 螺母GB6170-M12flZnyc-8-480 Nut Y 5

9 4120002993 接头GE20S11/16UNOMDCF Nipple Y 1

10 4120004090 变径接头RED20S/18LOMDCF Nipple Y 1

11 4120003023 接头GE08L7/16UNFOMD Nipple Y 2

12 29200013071 支撑螺钉 Support screw Y 1

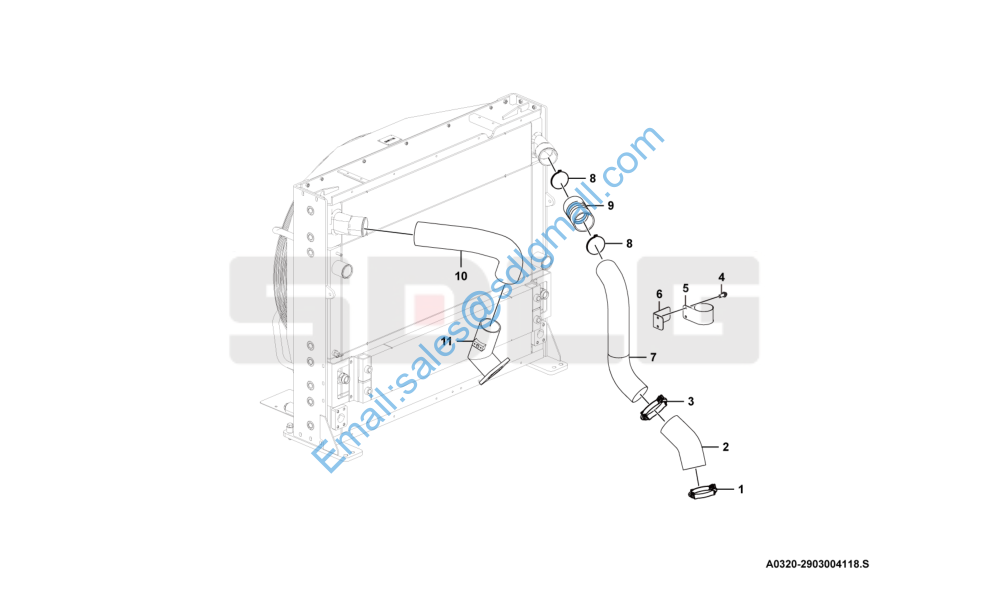

L989F A0320-2903004118 Assembly compound

1 4110002210 V型抱箍φ107.7 V-band clamp Y 1
2 29030017201 V型中冷连接管φ100 Hose Y 1
3 4110000906 T型抱箍φ105.6(+2.4-5.6mm) Clamp Y 2
4 4011001247 螺栓GB5783-M8*20flZnyc-8.8-480 Screw Y 4
5 29030017261 管夹D89 Clamp Y 1
6 29030017241 支架 Bracket Y 1
7 29030041351 中冷进气钢管 Pipe Y 1
8 4019000074 T型抱箍φ95(+2.5-6mm) Clamp Y 3
9 29030036791 中冷波纹管D80 Hose Y 1
10 29030041361 中冷出气胶管 Hose Y 1
11 29030017161 中冷出气过渡管 Pipe Y 1

LG968N 铲斗总成 Bucket assembly Q1710-2917007552

1 29170075522 铲斗总成 Bucket Y 1
2 29170057251 铭牌 Decal N 1
3 4019000012 铆钉GB827-3*5-BL2 Rivet Y 4
4 29170068271 耐磨板 Wear plate Y 7
5 29170075532 铲斗 Bucket Y 1
6 29170018731 销 Stud Y 8
7 29170018741 锁销圈 Lock ring Y 8
8 29170045111 齿套 Bucket tooth Y 8
9 4013000021 螺母GB6170-M24EpZn-8 Nut Y 14
10 4015000003 垫圈GB1230-24EpZn-45 Washer Y 14
11 29170025411 螺栓 Bolt Y 14
