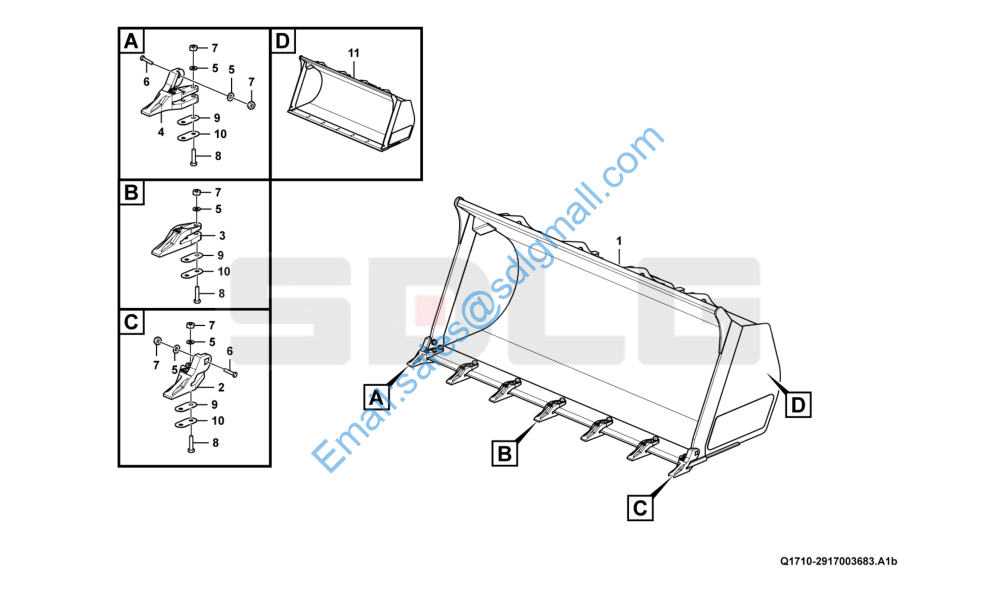

LG933L Q1710-2917003683 铲斗总成 Bucket assembly

LG933L Q1710-2917003683 铲斗总成 Bucket assembly

1 29170036831 铲斗总成 Bucket Y 1
2 29170036982 左边齿 Bucket tooth Y 1
3 29170036972 斗齿 Bucket tooth Y 5
4 29170036962 右边齿 Bucket tooth Y 1
5 4015000001 垫圈GB1230-16EpZn-45 Washer Y 16
6 4043000337 螺栓LGB002-M1650 Bolt Y 2

7 4013000016 螺母GB6170-M16EpZn-8 Nut Y 16

8 4040000032 螺栓LGB002-M1680 Bolt Y 14
9 29170049661 斗齿调整垫 Shim Y 7
10 29170049671 斗齿调整垫 Shim Y 7
11 29170036841 铲斗 Bucket body Y 1

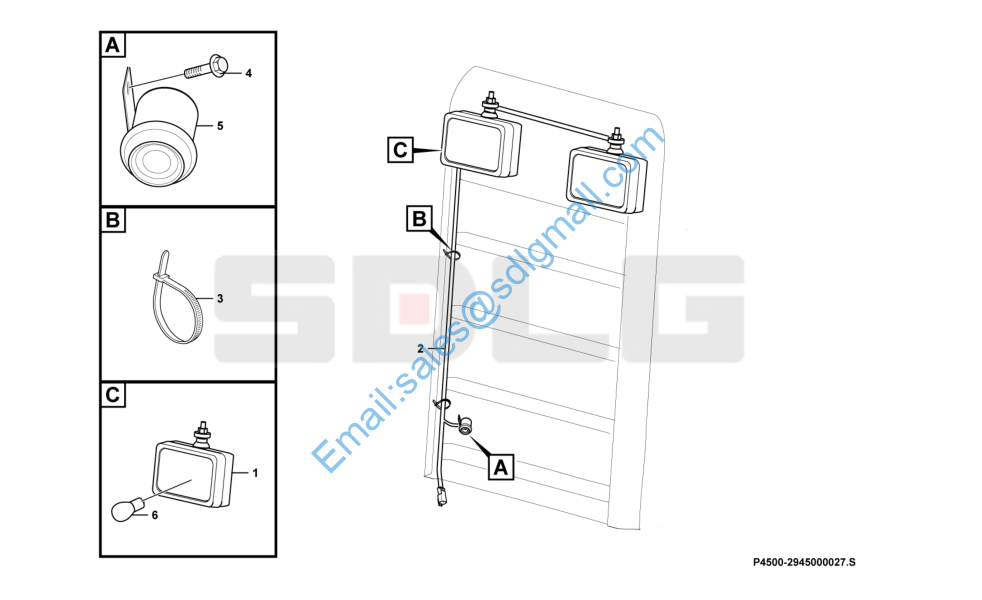

LG933L P4500-2945000027 机罩电气总成 Electric assembly-hood

LG933L P4500-2945000027 机罩电气总成 Electric assembly-hood

1 4130000544 后大灯SPH4-1031 Lamp Y 2
2 29450000281 后罩线束 Wiring harness Y 1
3 4190001839 扎丝LG13-ZS4160 Cable tie Y 1 4 4011000461 螺栓GB16674-M816EpZn-8.8 Bolt Y 1
5 4130001290 倒车蜂鸣器FM211C Buzzer Y 1
6 4130000914 灯泡PHILIPS 13620(24V 55W/50W) Bulb N 1

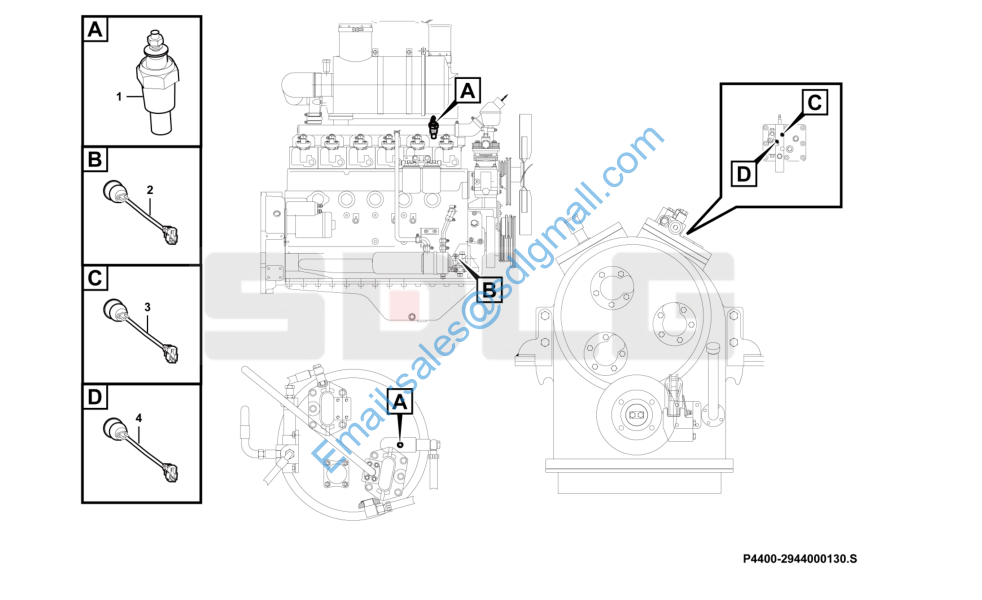

LG933L P4400-2944000130 发动机电气总成 Electric equipment

LG933L P4400-2944000130 发动机电气总成 Electric equipment

1 4130000202 温度传感器WDG1371 Temperature sensor Y 2
2 4130001296 机油压力开关YK208B1 Pressure switch Y 1
3 4130001294 隔膜式压力开关310-LGK1 Pressure switch Y 1
4 4130001300 压力开关YK215B1 Pressure switch Y 1
