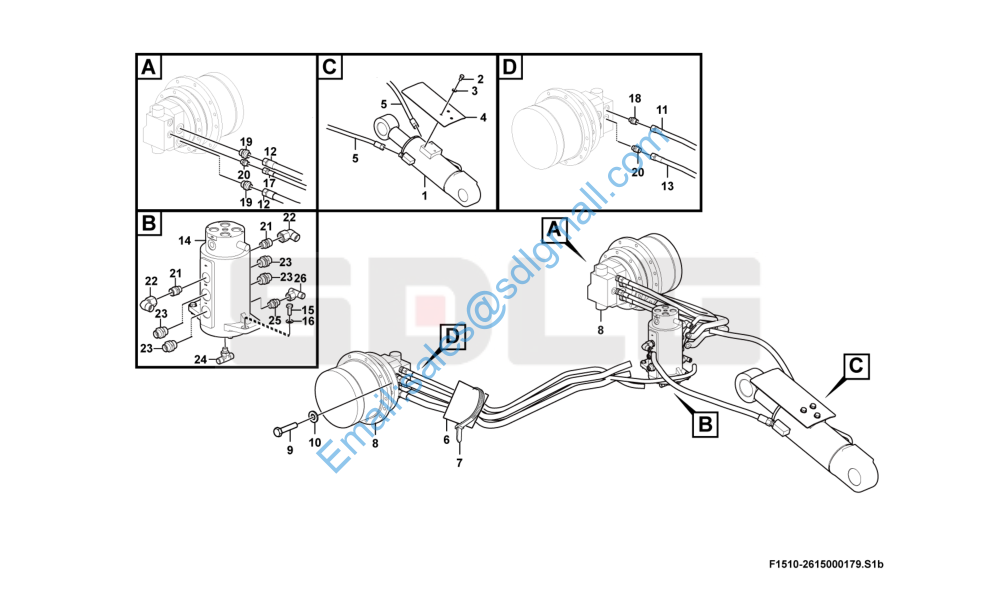

E635F 2615000179 行走液压总成 Travel hydraulic system

E635F 2615000179 行走液压总成 Travel hydraulic system

1 4120006311 推土油缸HSGL-100*60*130-495 Cylinder Y 1

2 4011000081 螺栓GB5783-M10*20EpZn-8.8 Bolt Y 3

3 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 3

4 26150001801 护板 Protecting plate Y 1

5 4120006287 回转接头ZH0821A101 Center passage Y 1

6 4011000917 螺栓GB5783-M8*25EpZn-10.9 Bolt Y 4

7 4015000072 垫圈GB97.1-8EpZn-300HV Washer Y 4

8 4120006511 胶管F372CACE121206-720-SG800 Hose assembly Y 2

9 4120006486 胶管F372CACE121206-1040 Hose assembly Y 4

10 4120006520 胶管F481CACE080804-1020 Hose assembly Y 1

11 26370002891 自扎帆布套 Tarpaulin cover Y 2

12 4190001834 扎丝LG13-ZS8*370 Cable tie Y 6

13 4120006288 行走马达GM04VA Hydraulic motor Y 2

14 4011001205 螺栓GB5783-M12*35flZnyc-10.9-480 Screw Y 18

15 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 18

16 4120006518 胶管F481CACE100805-1060 Hose assembly Y 2

17 4120006519 胶管F481CACE080804-1340 Hose assembly Y 1

18 4190000318 接头GEO10LR1/4OMDA3C Nipple Y 2

19 4190000361 接头GEO12LR1/2OMDA3C Nipple Y 4

20 4190000202 接头GEO08LR1/4OMDA3C Nipple Y 2

21 4190000147 接头GE12L9/16UNFOMDA3C Nipple Y 2

22 4190000141 接头EW12LOMDA3C Nipple Y 2

23 4190000149 接头GE12L3/4UNFOMDA3C Nipple Y 4

24 4120006516 三通接头TEE08L7/16UNFOMDCF 3-way nipple Y 1

25 4190000201 接头GE08L9/16UNFOMDA3C Nipple Y 1

26 4190000204 三通接头ET08LOMDA3C Three-way nipple Y 1

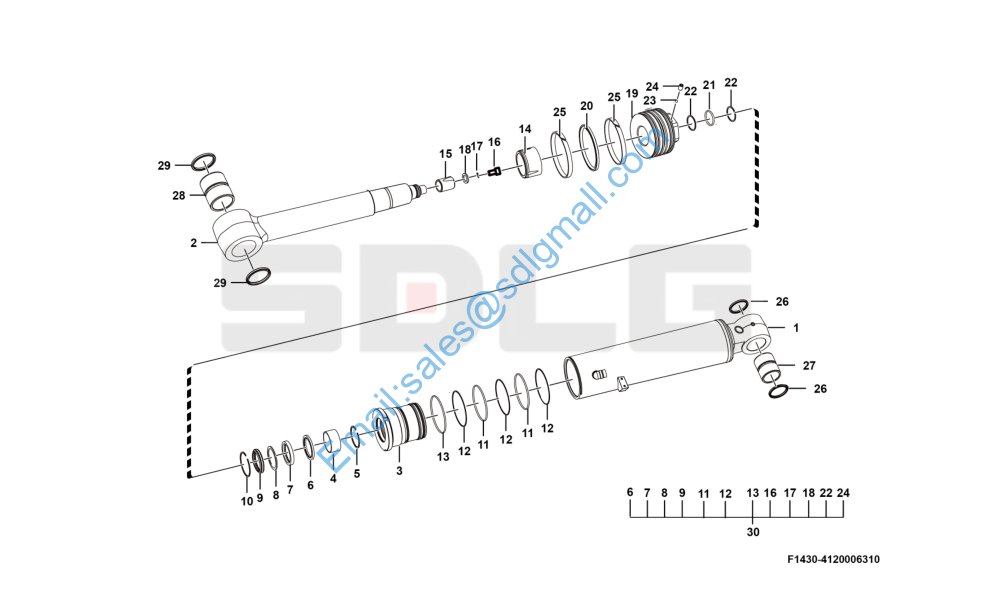

E635F 4120006310 摆动油缸(3713CH) Steering cylinder

E635F 4120006310 摆动油缸(3713CH) Steering cylinder

4120006310001 缸筒总成24A031850 Cylinder tube Y 1
2 4120006310002 活塞杆总成24A010680 Piston rod Y 1
3 4120006310003 缸盖24A070411 Cover Y 1
4 4120006310004 衬套24S145301 Bushing Y 1
5 4120005871005 钢丝挡圈-孔用24C001050 Retaining ring Y 1
6 4120006310005 密封件-缓冲24H004515 Sealing ring N 1
7 4120006310006 密封件-活塞杆24F204504 Sealing ring N 1
8 4120006603008 挡圈-U形圈24E004515 Sealing ring N 1
9 4120006603009 密封件-防尘24D204502 Sealing ring kit N 1
10 4120000560512 钢丝挡圈-孔用24C001060 D61*2t Retaining ring Y 1
11 4120006310007 O形圈24K10750A O-ring N 2
12 4120006310008 挡圈-O形圈24M10800F Retaining ring N 3
13 4120006310009 O形圈24K308001 O-ring N 1
14 4120006310010 缓冲套24A052400 Rubber sleeve Y 1
15 4120006310011 缓冲套24A052410 Rubber sleeve Y 1
16 4120006308007 螺钉24T510205 Screw Y 1
17 4120006308008 垫圈24T401002 Piston washer Y 1
18 4120006308006 挡环24A052580 Retaining ring Y 1
19 4120006310015 活塞24A080500 Piston Y 1
20 4120006310016 密封件-活塞24P208002 Sealing ring N 1
21 4120006310017 O形圈24K10300A O-ring N 1
22 4120006310018 挡圈-O形圈24M30350A Retaining ring N 2
23 4090000168 钢球GB308-5-GCr6 Ball Y 1
24 4120006308010 螺钉24T908121 Screw Y 1
25 4120006310020 支撑环25G208026 Back-up ring N 2
26 4120006310022 销边防尘24R304061 Sealing ring N 2
27 4120006310021 轴套24C066050 Bushing Y 1
28 4120006309008 轴套24C066030 Bushing Y 1
29 4120006310024 销边防尘24R304021 Sealing ring N 2
30 4120006310025 密封件维修包24A000540S Sealing kit Y 1

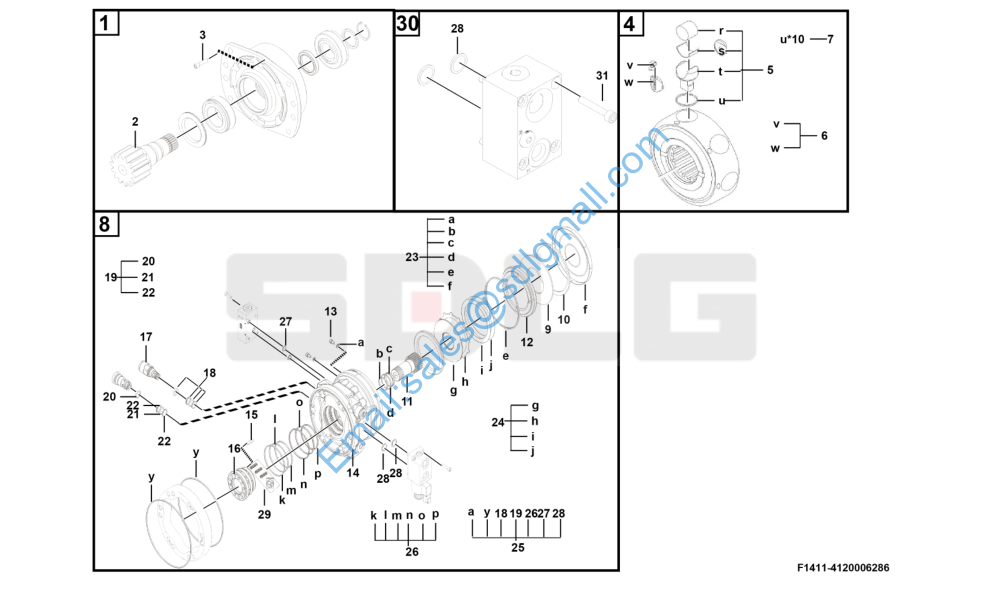

E635F 4120006286 回转马达(110026) Swing motor

E635F 4120006286 回转马达(110026) Swing motor

1 4120006286001 输出轴总成A48557E Output shaft Y 1
2 4120006286002 输出轴B02370A Output shaft N 1
3 4120006286003 螺钉A34353Q Screw Y 12
4 4120006286004 缸体A19295X Inner cylinder Y 1
5 4120006286005 径向活塞A36712E Piston Y 8
6 4120006286006 维修包A36715H Repair kit Y 1
7 4120006286007 维修包A44468K Repair kit Y 1
8 4120006286008 回转马达主体B11263R Swing motor Y 1
9 4120006286009 垫片000834908J Gasket Y 1
10 4120006286010 卡环000036267V Retaining ring Y 1
11 4120006286011 齿轮轴A41156K Shaft Y 1
12 4120006286012 制动活塞A34307Q Brake piston Y 1
13 4120006286013 螺钉000932912K Screw Y 2
14 4120006286014 壳体B11264S Cover N 1
15 4120006286015 定位销000836036K Locating pin Y 1
16 4120006286016 分配阀A43530Q Valve Y 1
17 4120006286017 压力控制阀A44574A Control pressure valve Y 2
18 4120006286018 密封包B01473A Sealing kit Y 1
19 4120006286019 维修包B15060T Repair kit N 1
20 4120006286020 密封圈B01375T Lip seal N 1
21 4120006286021 密封圈B01376U Lip seal N 1
22 4120006286022 密封圈B01419R Lip seal N 2
23 4120006286023 维修包B10853V Repair kit N 1
24 4120006286024 维修包B11068E Repair kit N 1
25 4120006286025 密封包B11070G Sealing kit N 1
26 4120006286026 密封包005549611L Sealing kit Y 1
27 4120006286027 密封圈001230430Z Lip seal Y 1
28 4120006286028 密封圈001130462N Lip seal Y 2
29 4120006286029 密封包A28569D Sealing kit Y 1
30 4120006286030 多功能阀A42953N Valve Y 1

31 4120006286031 螺钉000632918E Screw Y 4
