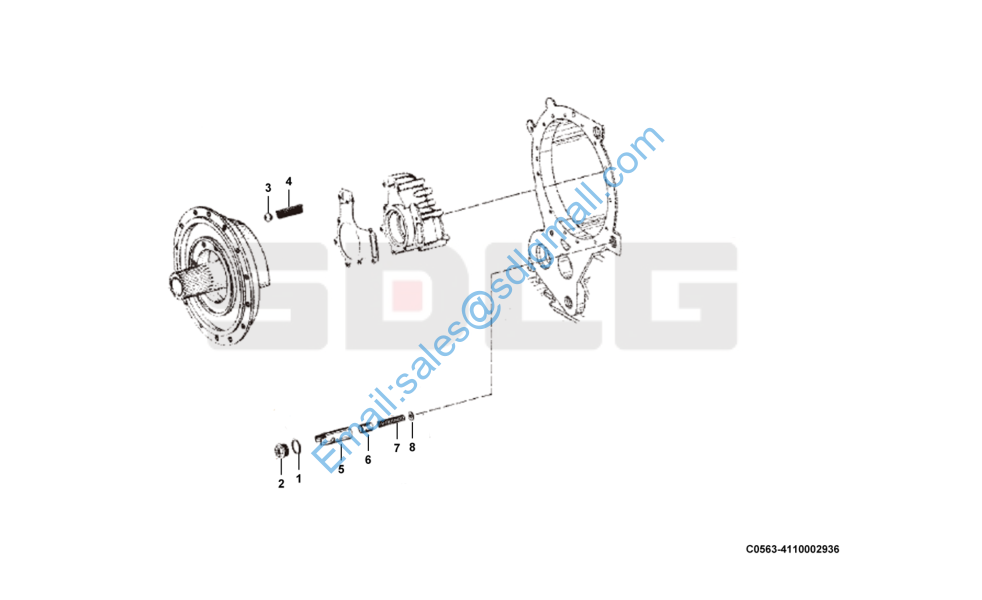

L959F 调压阀 Pressure regulator C0563-4110002936

L959F 调压阀 Pressure regulator C0563-4110002936

1 7200001433 O形圈(272)0634303283 O-ring Y 1

2 7200001524 螺塞(CM301.5)0636305024 Three-way nipple Y 1
3 7200001525 钢球0635460029 Ball Y 1
4 7200001526 压力弹簧0732041352 Spring Y 1
5 7200001527 阀套4644320042 Sleeve Y 1
6 7200001528 阀杆4644320034 Valve rod Y 1
7 7200001529 压力弹簧0732042251 Spring Y 1
8 7200001530 垫圈(15)0630001017 Washer Y 1

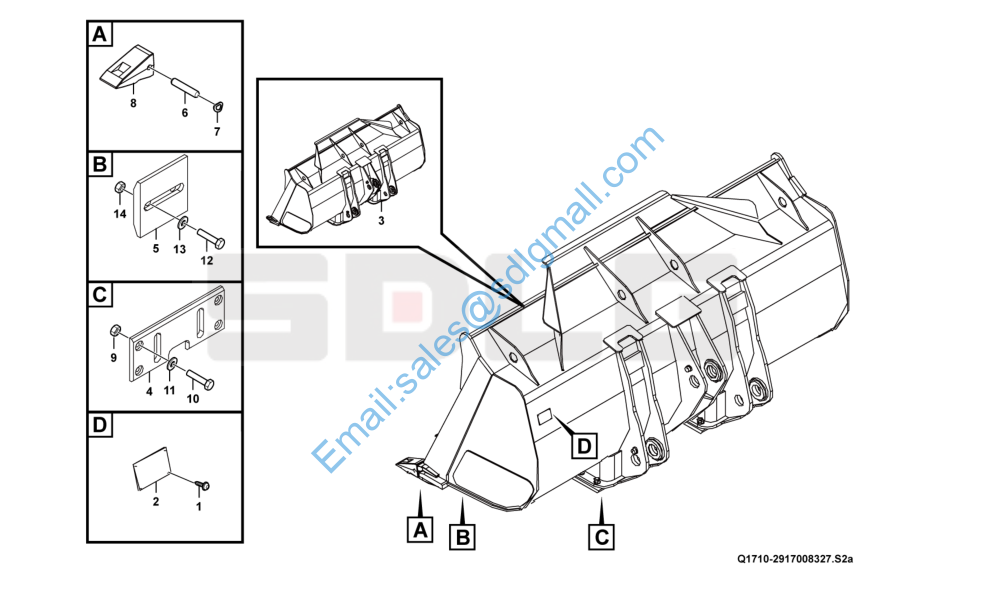

L978F 铲斗总成 Bucket Q1710-2917008327

L978F 铲斗总成 Bucket Q1710-2917008327

1 4019000012 铆钉GB827-35-BL2 Rivet Y 4

2 29170105791 铲斗铭牌 Name plate N 1

3 29170083283 铲斗4.23320 Bucket Y 1
4 29170053001 耐磨板 Wear plate Y 2
5 29170075901 耐磨板 Wear plate Y 7
6 29170018731 销 Stud Y 8
7 29170018741 锁销圈 Lock ring Y 8
8 29170075801 齿套 Bucket tooth Y 8
9 29170062641 螺母 Nut Y 8
10 29170062631 螺栓 Bolt Y 8
11 4015000003 垫圈GB1230-24EpZn-45 Washer Y 8
12 29170030401 螺栓 Bolt Y 14
13 4015000201 垫圈GB1230-30EpZn-45 Washer Y 14
14 4013000173 螺母GB6170-M30EpZn-8 Nut Y 14

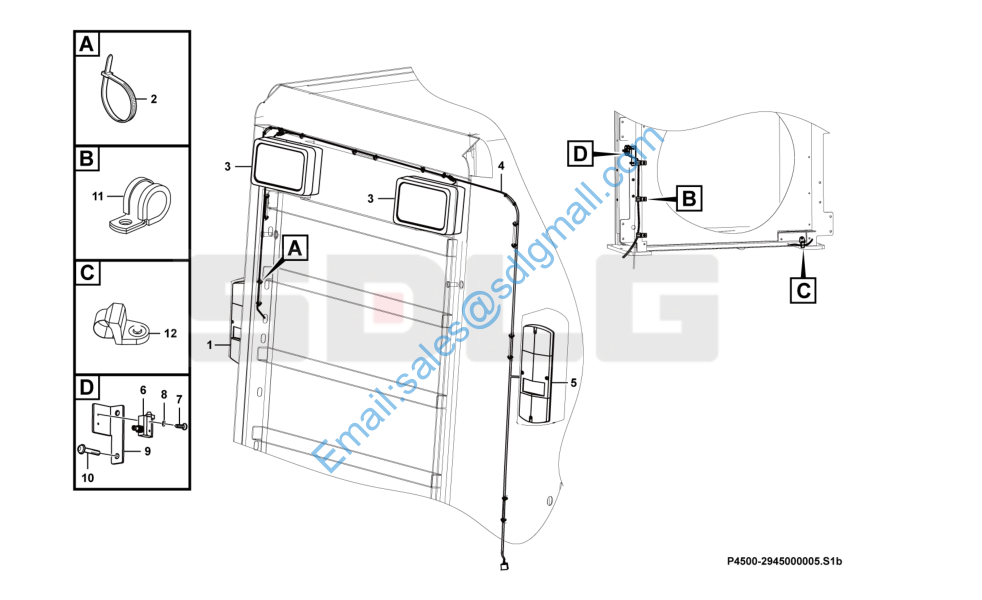

L978F 机罩电气总成 Engine hood electric system P4500-2945000005

L978F 机罩电气总成 Engine hood electric system P4500-2945000005

1 4130001049 后尾灯122 689 051AL Tail light Y 1

2 4190001839 扎丝LG13-ZS4*160 Cable tie Y 20

3 4130000544 后大灯SPH4-1031 Lamp Y 2

4 29370016901 后罩线束 Wiring harness Y 1

5 4130001050 后尾灯122 689 051AR Tail light Y 1

6 4130001118 限位开关SL-A Position switch Y 1

7 4014000613 螺钉GB818-M4*30flZnyc-4.8-480 Screw Y 2

8 4015000432 垫圈GB97.1-4flZnyc-300HV-480 Washer Y 2

9 29370017041 板 Bracket Y 1

10 4011001337 螺栓GB16674.1-M12*20flZnyc-8.8-480 Screw Y 2

11 4041002410 管夹LGB169-A12*10 Clamp Y 3

12 14400342 扎带 Strip clamp Y 1
