LG920 2917011288 铲斗总成 Bucket assembly

1 29170112881 铲斗总成 Bucket Y 1
2 29170105791 铲斗铭牌 Name plate N 1
3 4019000012 铆钉GB827-3*5-BL2 Rivet Y 4
4 29170039951 左边齿 Bucket tooth Y 1
5 29170039941 斗齿 Bucket tooth Y 4
6 29170112891 铲斗 Bucket Y 1
7 29170039961 右边齿 Bucket tooth Y 1
8 4015000176 垫圈GB97.1-20EpZn-300HV Washer Y 14
9 4013000020 螺母GB6170-M20EpZn-8 Nut Y 14
10 29170019711 螺栓 Bolt Y 12
11 29170020531 斗齿调整垫 Shim Y 6
12 29170019701 螺栓 Bolt Y 2

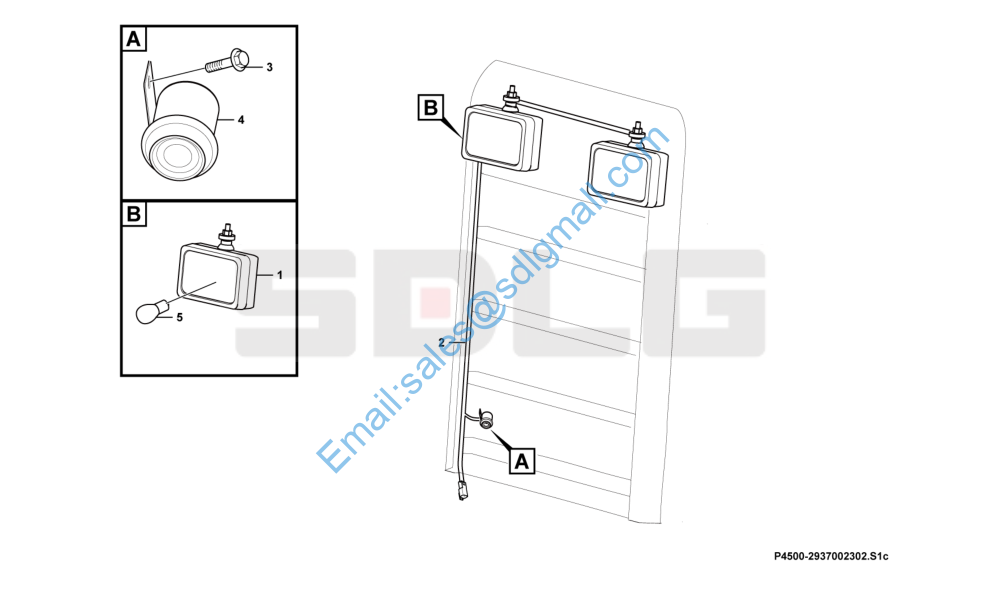

LG920 2937002302 机罩电气总成 Engine hood electric system

1 4130000270 后大灯SP-1031 Lamp Y 2
2 29370019881 后罩线束 Wire N 1
3 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 1
4 4130001290 倒车蜂鸣器FM211C Buzzer Y 1
5 4130000914 灯泡PHILIPS 13620(24V 55W/50W) Bulb N 2

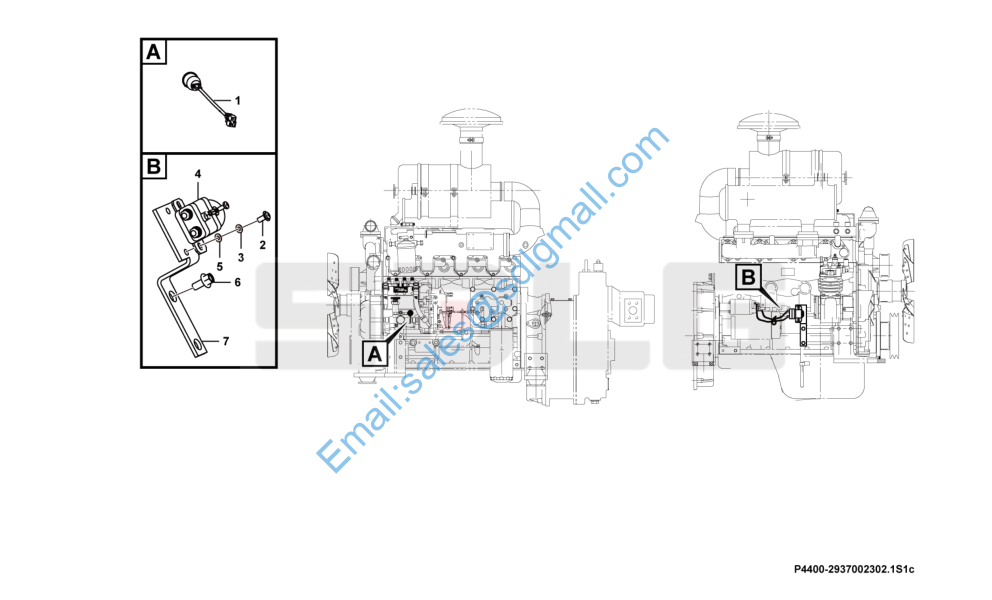

LG920 2937002302 发动机电气总成 Engine electric system

1 4130001296 机油压力开关YK208B1 Pressure switch Y 1

2 4014000026 螺钉GB818-M6*16EpZn-4.8 Screw Y 2

3 4015000207 垫圈GB97.1-6EpZn-300HV Washer Y 2

4 4130001080 启动继电器JD231A-LG01 Relay Y 1

5 4015000035 垫圈GB93-6-65Mn Spring washer Y 2

6 4011000137 螺栓GB16674-M12*20EpZn-8.8 Bolt Y 2

7 29370015531 启动继电器固定板 Bracket Y 1
