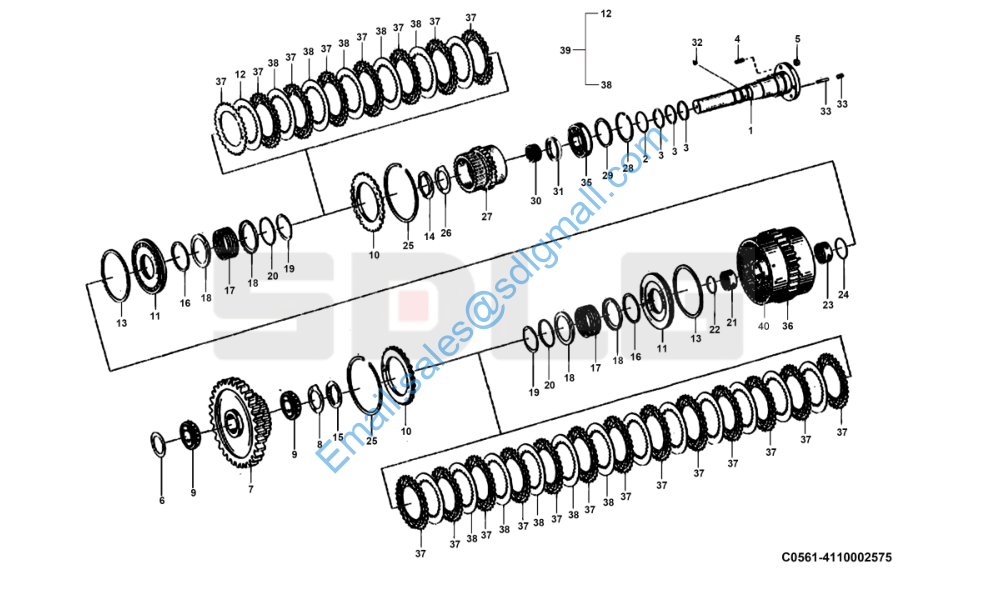

G9165 4110002575 离合器部件YD13-151 Clutch parts

1 4110000076360 轴 YD13 351 008(151) Shaft Y 1
2 4030000707 O形圈GB1235-553.1 O-ring Y 1 3 4110000076050 搭扣密封环 0734 401 106 Sealing ring Y 3 4 4012000042 螺柱GB898-M818-8.8 Stud Y 3
5 4013000162 螺母GB6170-M8-8 Nut Y 3
6 4110000076270 调整垫片0769120468 Shim Y 1
7 4110000076287 齿轮 YD13 351 006(KV/R) Z=50 Gear Y 1
8 4110000076246 承磨垫 0730 150 774 DUP Washer Y 1
9 4110000076053 轴承 YD13 351 007 WTB356438 Bearing Y 1
10 4110000076190 承压板4642308185 Anchor plate Y 2
11 4110000076324 活塞 4644 353 051 Cylinder piston Y 2
12 4110000076069 内摩擦片 4642 308 332 S=2.0 Friction disc Y 1
13 4110000076352 异形密封环 0750 112 141 Sealing ring Y 2
14 4110000076199 止动片4644351094 Extension bar Y 1
15 4110000076191 止动片4642308555 Extension bar Y 1
16 4110000076353 异形密封环 0750 112 140 Sealing ring Y 2
17 4110000076251 压力弹簧0732041183 Tension spring Y 2
18 4110000076189 导向环4642308083 Retaining ring Y 4
19 4110000076298 挡圈 0630 531 346 AV55 Retaining ring Y 2
20 4110000076302 导向环 4642 308 084 Retaining ring Y 2
21 4110000076060 滚针轴承 0750 115 182 354220 Needle bearing Y 1
22 4110000076294 弹性挡圈 0730 513 610 Retaining ring Y 1
23 7200001639 滚针轴承0635303204 Needle bearing Y 1
24 4110000076295 弹性挡圈 0730 513 611 Retaining ring Y 1
25 4110000076296 弹性挡圈0769 124 115 Retaining ring Y 2
26 4110000076247 承磨垫 0730 150 779 DUP Washer Y 1
27 4110000076288 齿轮 YD13 351 011 (K1) Z=25 Gear Y 1
28 4110000076212 孔用挡圈 0630 502 037 75*2,5 Retaining ring Y 1
29 4110000076271 调整垫片0769120556 Shim Y 1
30 4110000076104 滚针组O750115109 Needle Y 1

31 4110002230037 衬套4644 351 029 Bushing Y 1
32 7200002550 钢球5-GB/T308-2002 Ball Y 2
33 4110000076192 圆柱销4642351015 Pin Y 2
34 4014000192 螺钉GB79-M12×20-45H Screw Y 2
35 4110000367111 球轴承6009 MAC3 457516 0750 116 Bearing Y 1
36 4110000076328 离合器组件 YD13 251 001 Clutch kit Y 1
37 4110000076067 外摩擦片 0501 309 329 S=2,0 Friction disc Y 22
38 4110000076068 内摩擦片 4642 308 330 S=1.5 Friction disc Y 11
39 4110000076074 内摩擦片 0769 129 011 S=1,5/2,0/2,5 Friction disc N 2
40 4110000145087 球阀4642 208 107 Ball valve Y 1
