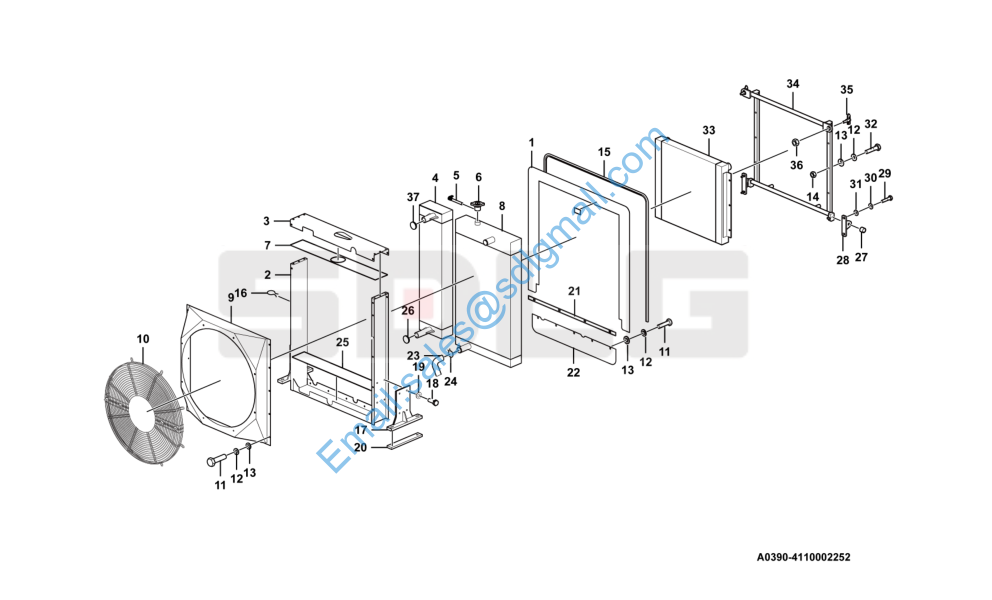

LG956L 4110002252 散热器总成（321002） Cooling unit

1 4110002252001 挡风板部件LY-LG958L-3-00-004 Wind deflector N 1

2 4110002252002 框架焊接部件LY-LG958L-3-37-020 Radiator bracket N 1

3 4110002252003 盖板部件LY-LG958L-3-37-030 Cover plate N 1

4 4110002252006 液压油散热器LY-LG958L-3-36-01 Hydraulic oilcooler Y 1

5 4110001182002 泄气软管（L=1500）QG2 Hose N 1

6 4110001929 Ⅱ型90Kpa复式加水口盖FG2 Cap Y 1

7 4110002252005 上减震垫LY-LG958L-3-0-007 Damper mat N 1

8 4110002252004 水散热器LY-LG958L-3-37-010 Radiator Y 1

9 4110002252007 导风罩LY-LG958L-3-00-001 Fan shroud Y 1

10 4110002252008 防护网LY-LG958L-3-00-002 Fan guard Y 1

11 4011000105 螺栓GB5783-M8*20EpZn-8.8 Bolt Y 50

12 4015000321 垫圈GB97.2-8-300HV Washer Y 56

13 4015000036 垫圈GB93-8-65Mn Spring washer Y 56

14 4013000151 P-螺母PGB6170-M8-8 Nut N 6

15 4110002466017 密封条LY-LG953L-2H（AL）-00-004 Sealing collar Y 1

16 4110001205014 管夹GJ4 Clamp N 2

17 4110002286110 支架焊接部件LY-LG958L-3-37-040 Radiator bracket N 2

18 4011000087 螺栓GB5783-M12*20EpZn-8.8 Screw Y 8

19 4015000026 垫圈GB93-12-65Mn Spring washer Y 10

20 4110000478012 减震垫LY-LG956-2A-00-003 Rubber mat Y 4

21 4110002252009 下压板LY-LG958L-3-00-006 Plate N 1

22 4110002252010 下挡风板LY-LG958L-3-00-005 Wind deflector N 1

23 4110002165013 橡胶软管(L=800)QG3 Rubber tube N 1

24 4110001182007 管夹GJ5 Clamp N 1

25 4110002252011 下减震垫LY-LG958L-3-00-008 Damper mat N 1

26 4110001577008 进出水管封盖SKFG-1 N=Φ63.5 Cover N 1

27 4110002531023 轴套 LY-LG946L-3-00-009 Sleeve Y 2

28 4110002466021 底座LY-LG946L-3-00-004 Plate N 2

29 4011001139 螺栓GB5783-M10*35-8.8 Screw Y 6

30 4015000319 垫圈GB97.2-10-300HV Washer Y 6

31 4015000025 垫圈GB93-10-65Mn Spring washer Y 6
32 4011001098 P-螺栓GB5783-M840-8.8 Bolt gb5783-m840-8.8 N 6
33 4110002252012 传动油散热器LY-LG958L-3-36-02 Oil cooler Y 1
34 4110002485011 油散安装支架LY-LG958L-3-00-003 Bracket N 1
35 4110002466014 锁扣部件LY-LG946L-3-00-003 Lock Y 2
36 4013000011 螺母GB6170-M12EpZn-8 Nut Y 2
37 4110001577007 进出水管封盖SKFG-1 N=Φ50 Cover N 1
