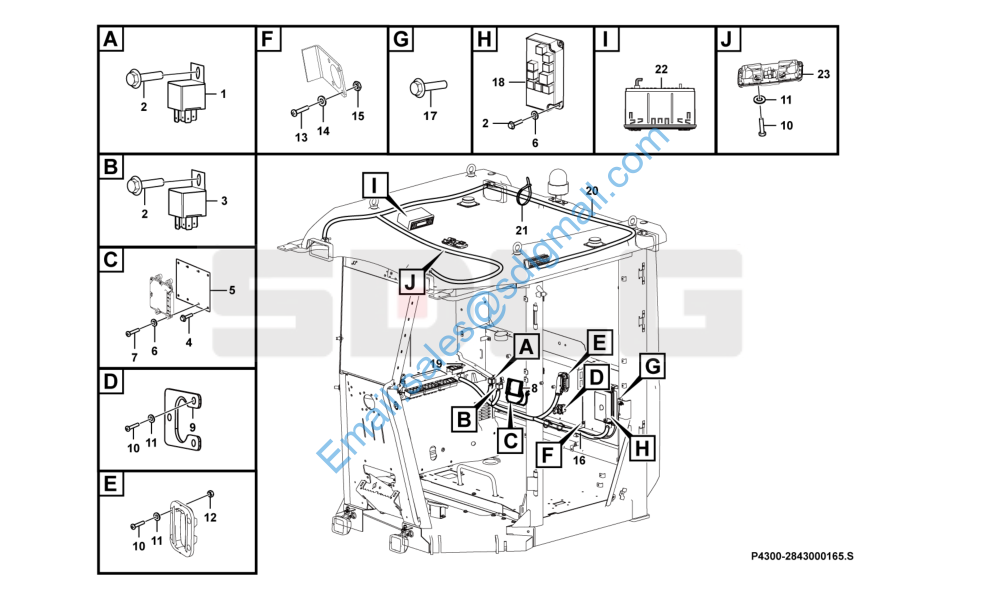

G9220 2843000165 驾驶室内置电气 Cab electric system

1 4130000912 蓄电池继电器024-1H2T-80A Relay Y 1

2 4011000153 螺栓GB16674-M6*16EpZn-8.8 Bolt Y 6

3 4130000869 中间继电器024-1Z6GD2 Relay Y 1

4 4011000458 螺栓GB16674-M8*20EpZn-8.8 Bolt Y 4

5 28320004131 E-ECU固定板 Plate Y 1

6 4015000207 垫圈GB97.1-6EpZn-300HV Washer Y 8

7 4014000174 螺钉GB70.1-M6*25-8.8 Screw Y 4

8 28430000122 81针ECU线束 Cable harness Y 1

9 28430000741 固定支架 Bracket Y 1

10 4014000088 螺钉GB818-M5*16EpZn-4.8 Screw Y 9

11 4015000110 垫圈GB97.1-5EpZn-300HV Washer Y 9

12 4013000118 螺母GB6170-M5EpZn-8 Nut Y 4

13 4014000267 螺钉GB818-M3*10EpZn-4.8 Screw Y 4

14 4015000200 垫圈GB97.1-3EpZn-300HV Washer Y 4

15 4013000159 螺母GB6170-M3EpZn-8 Nut Y 4

16 28430000133 仪表台线束 Cable harness Y 1

17 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 1

18 4130001899 中央电器控制盒L1-24F17R1402 Fuse and relay unit Y 1

19 4130000700 点烟器插头8EZ008022-011 Cigarette lighter Y 1

20 28320003861 驾驶室线束 Wiring harness N 1

21 4190000020 扎丝LG13-ZS4*250 Cable tie Y 70

22 29370015871 收音机总成 Radio Y 1

23 4130001413 室内灯24-6212-24V Lamp Y 1
