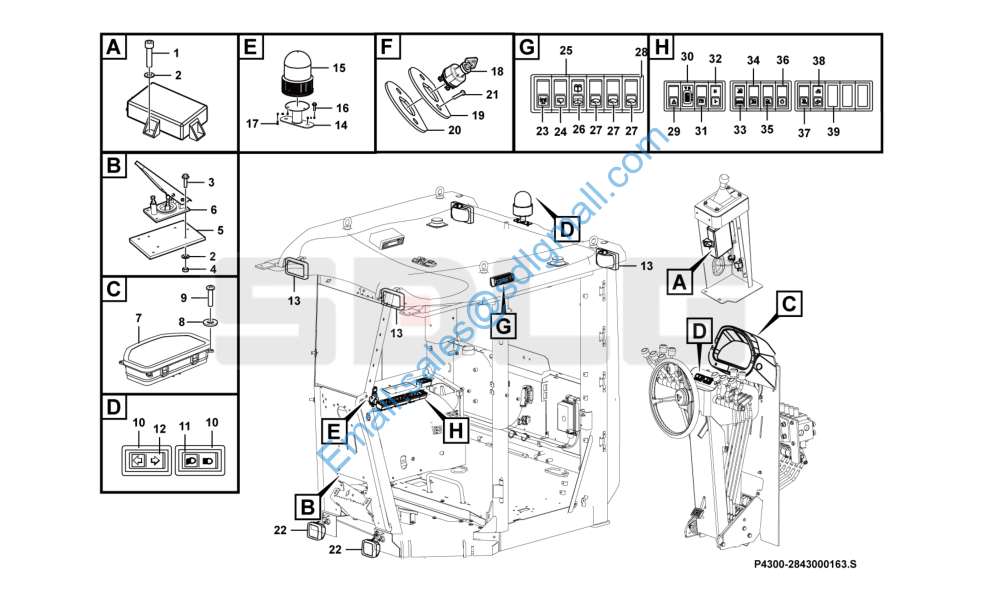

G9220 2843000163 驾驶室外置电气 Cab electric system

1 4014000237 螺钉GB70.1-M6*16-8.8 Screw Y 3

2 4015000207 垫圈GB97.1-6EpZn-300HV Washer Y 10

3 4011000153 螺栓GB16674-M6*16EpZn-8.8 Bolt Y 7

4 4013000028 螺母GB6170-M6EpZn-8 Nut Y 4

5 28440000161 过渡板 Plate Y 1

6 4130001081 电子油门踏板WL400244 Accelerator pedal Y 1

7 28320003872 组合仪表盘SDLG-9-SPEED-OIL TEP Display panel Y 1

8 4015000110 垫圈GB97.1-5EpZn-300HV Washer Y 4

9 4014000088 螺钉GB818-M5*16EpZn-4.8 Screw Y 4

10 4130000572 独立单框架JK931-01DKJ Switch panel Y 2

11 4130001955 前大灯开关JK931-01QDD-H Rocker switch Y 1

12 4130001954 转向开关JK931-01ZX-H Rocker switch Y 1

13 4130001685 工作灯148*86-H3-24V Lamp Y 4

14 29370023121 旋转警示灯支架 Bracket Y 1

15 11215524 旋转警示灯 Rotating beacon Y 1

16 4014000037 自攻螺钉GB845-ST4.2*19-C-H Screw Y 3

17 4011000455 螺栓GB16674-M8*25EpZn-8.8 Bolt Y 2

18 11217633 启动开关 Starter switch Y 1

19 28320004221 板 Bracket Y 1

20 28320004241 底板 Bracket Y 1

21 4014000302 螺钉GB819.1-M5*12EpZn-4.8 Screw Y 2

22 4130001101 工作灯A0782A606400 Work lamp Y 2

23 4130000593 警顶灯开关JK931-01JDD Rocker switch Y 1

24 4130001836 后刮雨器开关JK931-01HGYQ Rocker switch Y 1

25 4130000497 中间单框架JK931-01ZKJ Switch panel Y 12

26 4130001835 前后喷水开关JK931-01PS Rocker switch Y 1

27 4130000493 刮雨器开关JK931-01GYQ Rocker switch N 3

28 4130000498 侧边单框架JK931-01CKJ Switch panel Y 10

29 4130000492 警示灯开关JK931-01JSD Rocker switch Y 1

30 4130002655 多态开关3735075-BD01 Switch Y 1

31 4130001894 PTO开关JK931-01PTO Rocker switch Y 1
32 4130002651 PTO转速增减开关JK931-01PTOZJ Rocker switch Y 1
33 4130001877 前后工作灯开关JK931-01NGZD Rocker switch Y 1
34 4130001896 铲刀灯开关JK931-01CDD Rocker switch Y 1
35 4130000491 后照灯开关JK931-01HZD Rocker switch N 1
36 4130000489 背光灯开关JK931-01BGD Rocker switch Y 1
37 4130001052 静音开关JK931-01JY Rocker switch Y 1
38 4130001897 锁紧油缸开关JK931-01SJYG Rocker switch Y 1
39 4130000496 盖板JK931-01GB Cover plate Y 6
