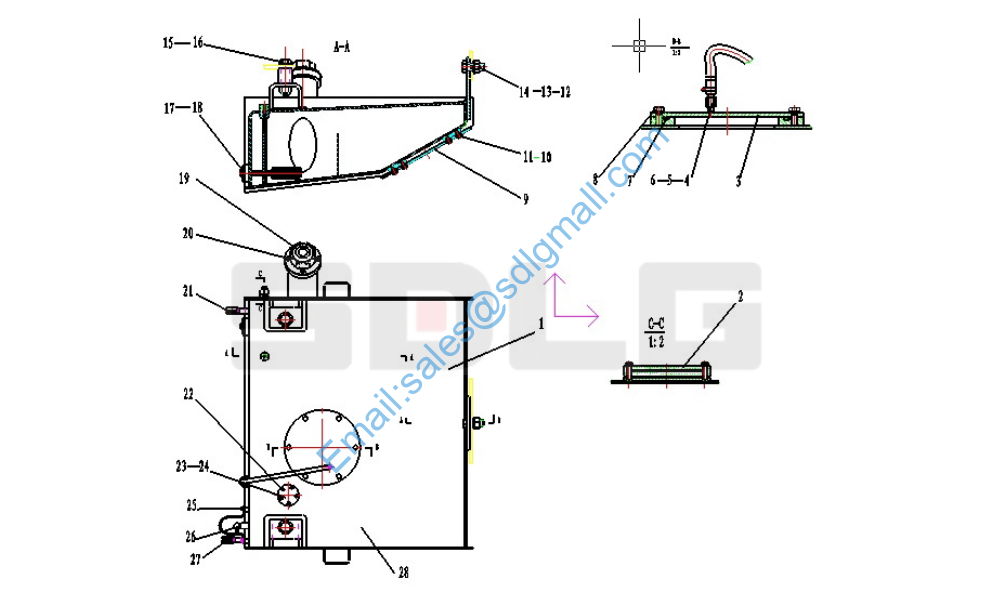

LG920 2902000981 Fuel tank assembly

1 29020009821 燃油箱体 Fuel tank N 1

2 4120000093 液位计YWZ-200 Water level gauge Y 1

3 29020006571 盖板 Cover plate Y 1

4 29020006561 透气钢管 Tube Y 1

5 4120000046 胶管JB8406-A10*560 Hose assembly Y 1

6 4017000010 喉箍JB8870-d20 Clamp Y 1

7 4030000022 O形圈GB3452.1-200*7.00G O-ring Y 1

8 4011000447 螺栓GB16674-M10*20EpZn-8.8 Bolt Y 8

9 29020009971 护板 Protecting plate N 1

10 4011000080 螺栓GB5783-M10*16EpZn-8.8 Bolt Y 12

11 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 12

12 4011000114 螺栓GB5785-M20*2*60EpZn-8.8 Bolt Y 1

13 4013000040 螺母GB6171-M20*2EpZn-8 Nut Y 1

14 4015000176 垫圈GB97.1-20EpZn-300HV Washer Y 1

15 4011000446 螺栓GB5785-M24*2*120EpZn-8.8 Screw Y 2

16 4015000187 垫圈GB96.1-24EpZn-300HV Washer Y 2

17 29020006581 滤油器总成 Fuel filter Y 1

18 29020007931 垫圈 Washer Y 1

19 4110000612 加油滤清器QL8 Fuel filter Y 1

20 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 4

21 26370001222 管夹 Clamp N 2

22 4014000047 螺钉GB818-M5*8EpZn-4.8 Screw Y 5

23 29020006841 法兰盖 Cover plate Y 1

24 29020006851 垫片 Spacer Y 1

25 4011000455 螺栓GB16674-M8*25EpZn-8.8 Bolt Y 2

26 4120000099 球阀MBS216-1/2″ Valve Y 1

27 29020006591 护板 Protecting plate Y 1

28 29020009811 燃油箱总成 Fuel tank N 1
