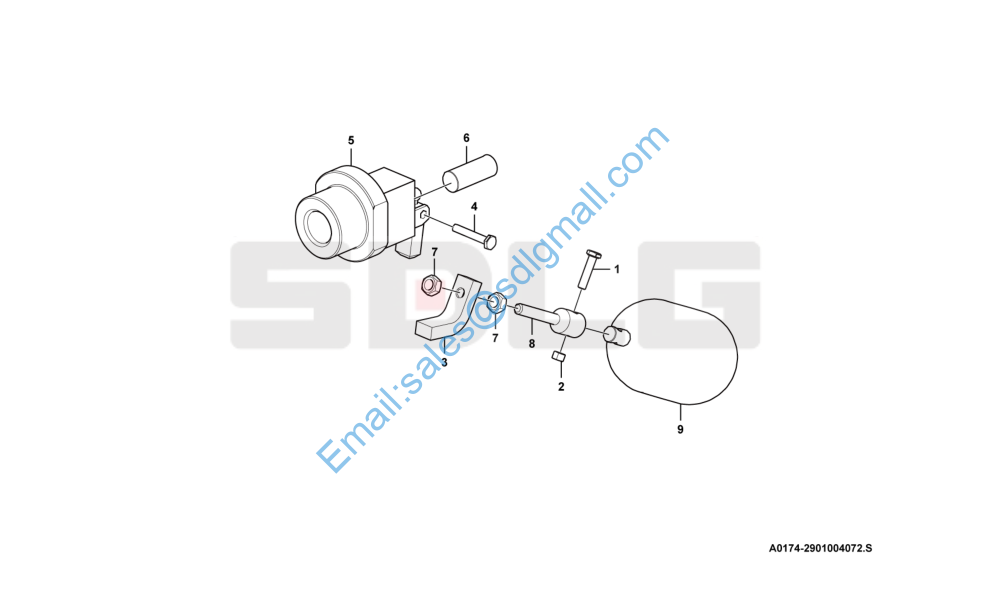

LG920 2901004072 浮球阀 Ball valve

1 4011001135 螺栓GB5783-M630-A2-70 Screw Y 1 2 4013000326 螺母GB6170-M6-A2-70 Nut Y 4 3 29010038461 连接杆 Attaching member N 1 4 4011001136 螺栓GB5783-M635-A2-70 Screw Y 1
5 29010020621 阀体 Valve Y 1
6 29010020591 阀杆 Valve rod Y 1
7 4013000327 螺母GB6170-M8-A2-70 Nut Y 2
8 29010040701 浮球杆 Rod Y 1
9 29010040711 浮球 Ball Y 1
