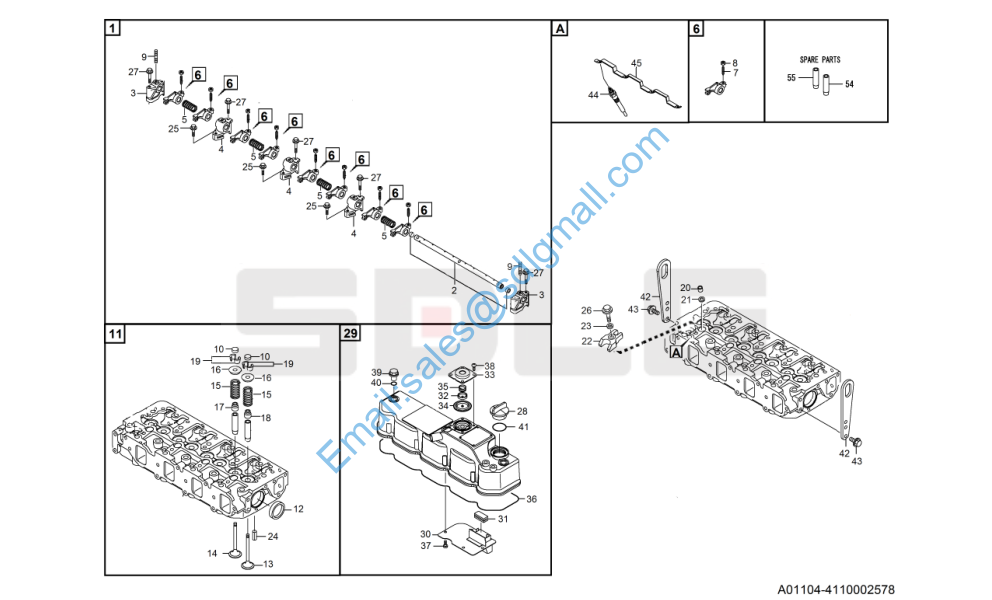

E635F 4110002578 缸头及外罩 Cylinder head & bonnet

1 4110002578056 轴总成129601-11241 Rocker arm kit Y 1
2 4110002578057 轴129601-11251 Rocker arm shaft Y 1
3 4110002578058 支架119802-11260 Support Y 2
4 4110002578059 支架119802-11270 Support Y 3
5 4110002578060 弹簧129150-11280 Valve spring Y 4
6 4110002578191 摇臂总成129004-11650 Rocker arm kit Y 8
7 4110000129082 螺钉129150-11230 Screw Y 8
8 4110000129065 螺母M8XP1.0 129150-11750 Nut Y 8
9 4110002578053 螺栓26226-080182 Screw Y 3
10 4110002578054 油箱盖129150-11370 Cap Y 8
11 4110002578055 缸头总成129604-11700 Cylinder head Y 1
12 4110000129057 销40 27241-400000 Plug Y 2
13 4110002578046 气门129005-11100 Air shutter Y 4
14 4110002578047 气门129100-11112 Air shutter Y 4
15 4110002578048 弹簧129795-11120 Valve spring Y 8
16 4110002578049 支架129795-11180 Valve support Y 8
17 4110002578050 阀杆密封121400-11340 Sealing collar Y 4
18 4110002578051 阀杆密封124460-11340 Sealing collar Y 4
19 4110002578052 开口销27310-080001 Split pin Y 8
20 4110000129070 油嘴保护套119802-11870 Protective sleeve Y 4
21 4110000129071 油嘴座119625-11880 Support Y 4
22 4110002578044 支架129004-11900 Support Y 4
23 4110002578045 垫圈120270-54410 Washer Y 4
24 4110000129011 弹簧销6X12 22351-060012 Pin Y 2
25 4110000129115 螺栓M8X25 26106-080252 Screw Y 3
26 4110000129105 螺栓M8X35 26106-080352 Screw Y 4
27 4110002578028 螺栓26106-080502 Screw Y 7
28 4110000129038 盖124160-01751 Filler cap Y 1
29 4110002578036 外罩总成129601-11350 Valve cover Y 1
30 4110002578037 托板129004-03010 Cover Y 1

31 4110002578038 调节阻板129150-03070 Baffle Y 1
32 4110002578039 托板119802-03110 Baffle plate Y 1
33 4110002578040 盖板119802-03121 Cover Y 1
34 4110002578041 隔膜片119802-03130 Baffle plate Y 1
35 4110002578042 弹簧119802-03141 Valve spring Y 1
36 4110002578043 垫片129601-11310 Washer Y 1
37 4110000129098 螺钉5X10 22857-500100 Screw Y 4
38 4110000129098 螺钉5X10 22857-500100 Screw Y 4
39 4110000129099 按钮124160-11360 Screw Y 3
40 4110000129074 O形圈1A P12.0 24311-000120 O-ring Y 3
41 4110000129039 O形圈1AP-32.0 24311-000320 O-ring Y 1
42 4110002405034 升降机构 129900-07900 Lifting bracket Y 2
43 4110000129033 螺栓M8X16 26106-080162 Screw Y 4
44 4110002578032 喷油器129008-77800 Injector Y 4
45 4110002578033 接头129604-77821 Attaching plate Y 1
46 4110002578034 导片120130-11860 Rod Y 4
47 4110002578035 导片129150-11810 Rod Y 4
