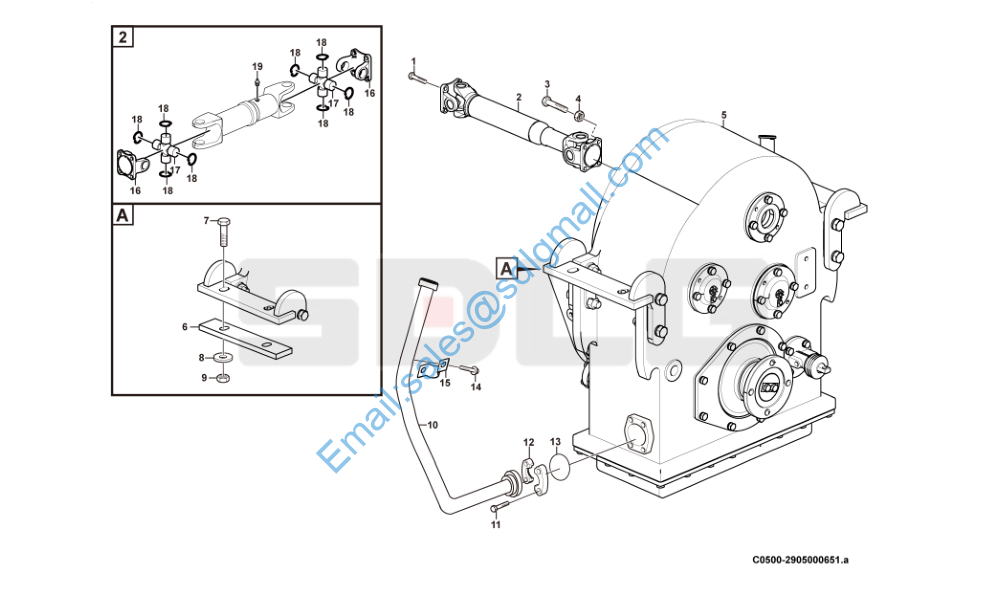

LG918 2905000651 Transmission system

1 29050006521 螺栓 Screw Y 4

2 29050006531 主传动轴 Drive shaft Y 1

3 29050006541 螺栓 Screw Y 4

4 4013000072 螺母GB889.2-M12*1.25EpZn-10 Lock nut Y 8

5 4110000218 变速箱BD05N1 Transmission Y 1

6 29050006551 橡胶垫 Rubber plate Y 2

7 4011000499 螺栓GB5785-M16*1.5*70EpZn-8.8 Bolt Y 4

8 4015000181 垫圈GB97.1-16EpZn-300HV Washer Y 4

9 4013000129 螺母GB889.2-M16*1.5EpZn-8 Lock nut Y 4

10 29050006562 加油管 Hose assembly Y 1

11 4011000481 螺栓GB16674-M8*30EpZn-8.8 Bolt Y 4

12 29050006571 压盖 Cover Y 1

13 4030000152 O形圈GB3452.1-25.0*2.65G O-ring Y 1

14 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 2

15 29050006581 管夹 Clamp Y 1

16 2908000653001 突缘叉130-2201023B Link yoke Y 1

17 2908000652002 万向节十字轴总成6700-33093 Spider Y 1

18 2908000653002 卡簧2201061N Lock ring Y 1

19 4110002086003 油杯M6 JB/T7940.1-1995 Grease cup N 1
