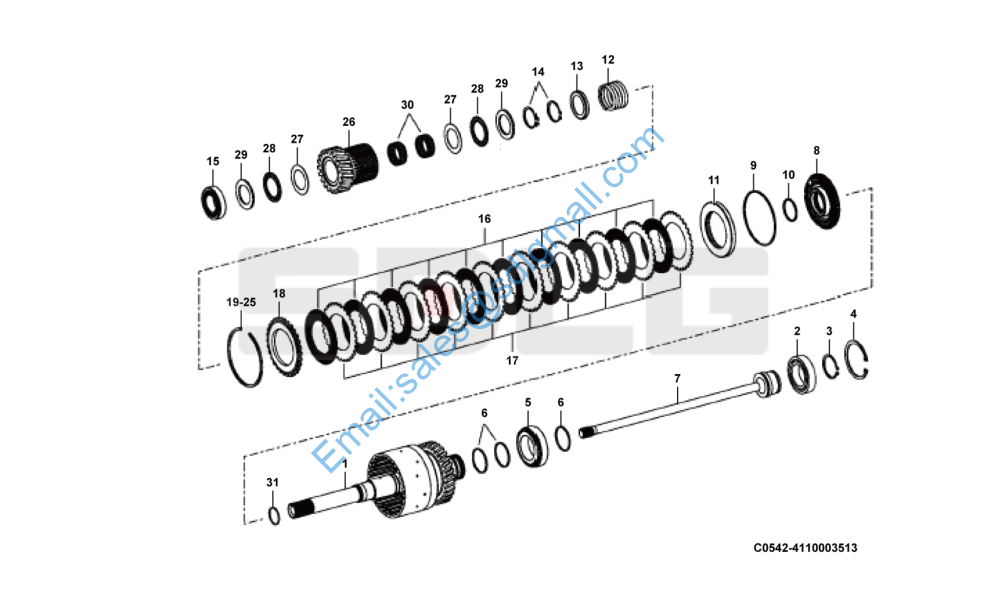

B876F C0542-4110003513 输入装置4661.102.007 Transmission input shaft

1 4110003513006 输入轴4661.202.004 Input shaft N 1
2 4110003513007 滚珠轴承0635.331.390 Ball bearing Y 1
3 7200001671 卡环(451.75)0630501033 Lock ring Y 1

4 7200001563 卡环(752.5)0630502037 Lock ring Y 1
5 4110003513010 滚轴轴承4661.201.005 Roller bearing Y 1
6 4110003513011 密封圈0734.401.309 Sealing ring N 3
7 4110003513012 轴4661.302.002 Shaft N 1
8 4110003513013 活塞4661.375.019 Piston N 1
9 4110003513014 O型圈0634.313.005 O-ring Y 1
10 4110003513015 O型圈0634.313.395 O-ring Y 1
11 4110003513016 垫板4661.202.026 Gasket N 1
12 4110003513017 压缩弹簧0732.042.926 Compression spring N 1
13 4110003513018 弹簧座4661.302.005 Spring brace N 1
14 7200001475 卡环0630501031 Lock ring Y 2
15 4110003513020 滚轴轴承4661.202.016 Roller bearing Y 1
16 4110003513021 内摩擦片0501.232.652 Friction disc Y 10
17 4110003513022 外摩擦片0501.321.410 Friction disc Y 10
18 4110003513023 受压盘0501.321.411 Pressure plate N 1
19 4110003513024 固位环h=2,50 0730.514.792 Snap ring Y 1
20 4110003513025 固位环h=2,75 0730.514.793 Snap ring Y 1
21 4110003513026 固位环D-TEIL*h=3,00 0730.514.794 Snap ring Y 1
22 4110003513027 固位环h=3,25 0730.514.795 Snap ring Y 1
23 4110003513028 固位环h=3,50 0730.514.796 Snap ring Y 1
24 4110003513029 固位环h=3,75 0730.514.797 Snap ring Y 1
25 4110003513030 固位环h=4,00 0730.514.798 Snap ring Y 1
26 4110003513032 齿轮总成4661.376.001 Gear N 1
27 4110003513033 止推垫片0635.290.035 Thrust washer N 2
28 4110003513034 滚针轴承0635.302.034 Needle bearing N 2
29 4110003513035 定位环0635.290.063 Locating ring N 2
30 4110003513036 滚针轴承0735.321.579 Needle bearing N 2

31 4110003513037 密封圈0734.401.308 Sealing ring N 1
