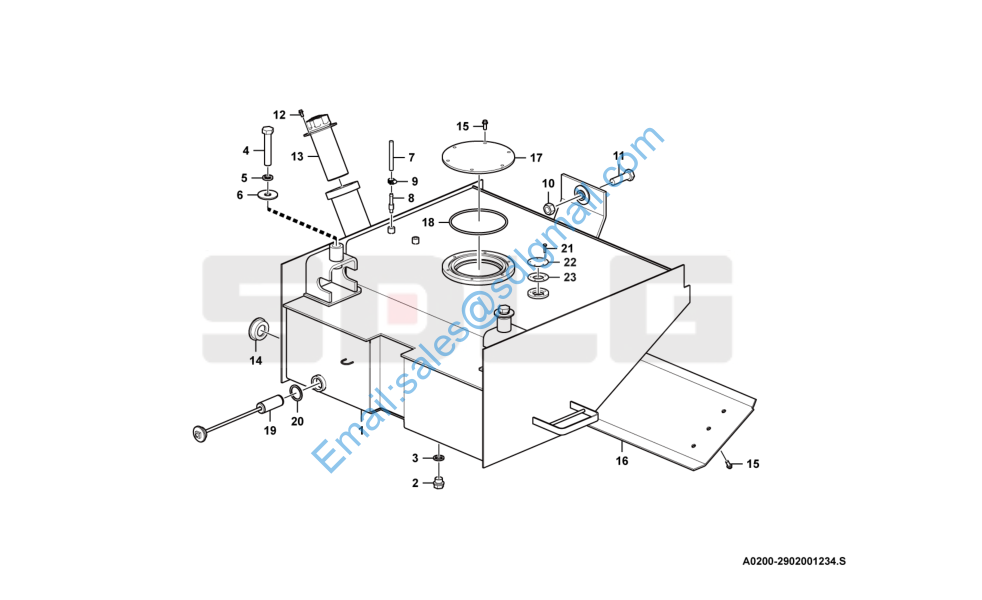

LG956L A0200-2902001234 燃油箱总成 Fuel tank system

1 29020012431 燃油箱体 Fuel tank N 1

2 4030000143 螺塞JB1000-M27*2EpZn-35 Plug Y 1

3 4015000091 垫圈JB982-27 Washer Y 1

4 4011000529 螺栓GB5785-M24*2*130EpZn-8.8 Bolt Y 2

5 4015000031 垫圈GB93-24-65Mn Spring washer Y 3

6 4015000187 垫圈GB96.1-24EpZn-300HV Washer Y 3

7 4120000388 胶管JB8406-B10*800 Hose assembly Y 1

8 29020006561 透气钢管 Tube Y 1

9 4017000010 喉箍JB8870-d20 Clamp Y 1

10 4013000042 螺母GB6171-M24*2EpZn-8 Nut Y 1

11 4011000567 螺栓GB5785-M24*2*80EpZn-8.8 Bolt Y 1

12 4011000102 螺栓GB5783-M8*16EpZn-8.8 Bolt Y 4

13 4110000613 带锁加油滤清器QL8 Fuel filter Y 1

14 4110000807 圆形油标YB-M42*1.5 Level gauge Y 2

15 4011000474 螺栓GB16674-M10*25EpZn-8.8 Bolt Y 12

16 29020008251 护板 Protecting plate Y 1

17 29020000041 盖板 Cover plate Y 1

18 4030000084 O形圈GB3452.1-600*7.00G O-ring Y 1

19 29020008421 滤油器总成 Fuel filter Y 1

20 29020000062 垫圈 Washer N 1

21 4014000047 螺钉GB818-M5*8EpZn-4.8 Screw Y 5

22 29020006841 法兰盖 Cover plate Y 1

23 29020006851 垫片 Spacer Y 1
