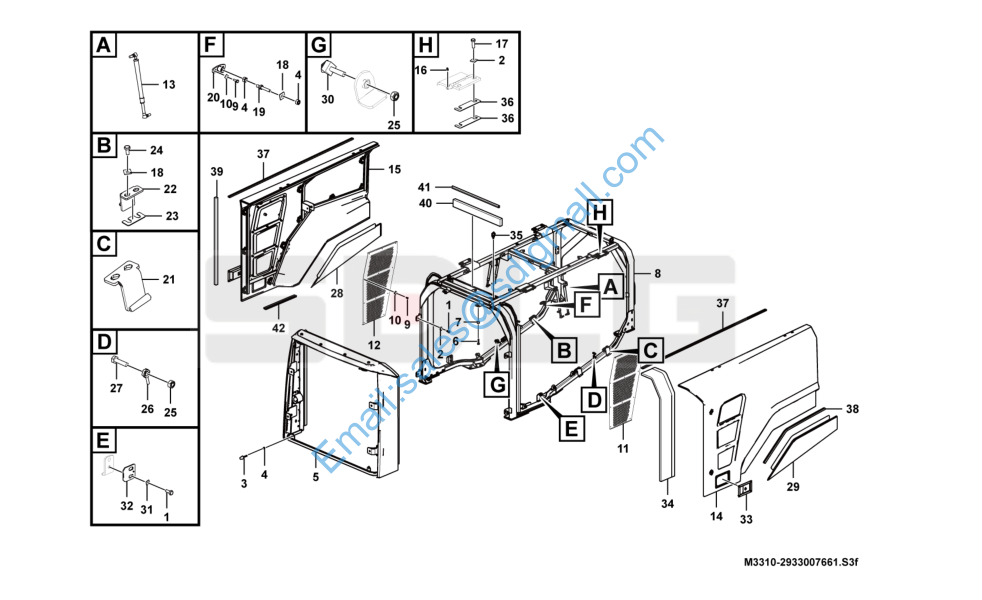

LFT26 M3310-2933007661 发动机罩 Bonnet

1 4011001241 螺栓GB5783-M12*25flZnyc-8.8-480 Screw Y 8

2 4015000427 垫圈GB96.1-12flZnyc-300HV-480 Washer Y 12

3 11210576 缓冲器 Bolt Y 2

4 4013000370 螺母GB6170-M10flZnyc-8-480 Nut Y 6

5 29330076621 后罩 Bonnet N 1

6 4011001251 螺栓GB5783-M12*45flZnyc-8.8-480 Screw Y 2

7 4043001970 防松套LGB331-12*24*16flZnyc-45 Attaching sleeve Y 2

8 29330086211 L956F机罩框架(三阶段) Frame N 1

9 4011001285 螺栓GB5783-M6*16flZnyc-8.8-480 Screw Y 26

10 4015000437 垫圈GB96.1-6flZnyc-300HV-480 Washer Y 26

11 29330077451 右衬网 Protecting grating Y 1

12 29330077421 左衬网 Protecting grating Y 1

13 4041002547 气弹簧LGB171-12-80-370(B-B)1000 Gas spring Y 4

14 29330068731 右侧门总成 Cover Y 1

15 29330068721 左侧门总成 Cover Y 1

16 4030000535 油杯JB7940.1-M6 Lubricating nipple Y 8

17 4011001243 螺栓GB5783-M12*35flZnyc-8.8-480 Screw Y 8

18 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 12

19 29330074891 球头螺栓 Ball stud Y 2

20 29340036401 橡胶座 Rubber frame Y 2

21 29330086691 铰接座 Rotor shaft N 2

22 29330086671 铰接座 Rotor shaft N 2

23 29330085431 开口垫片-2*13*70*30*2 Spacer Y 4

24 4011001238 螺栓GB5783-M10*20flZnyc-8.8-480 Screw Y 8

25 4013000373 螺母GB6170-M8flZnyc-8-480 Nut Y 10

26 29330085261 钢丝绳限位带 Lock strip N 2

27 4011001500 螺栓GB5783-M8*30flZnyc-8.8-480 Screw Y 4

28 29330073352 左下挡板总成 Cover N 1

29 29330073372 右下挡板总成 Cover N 1

30 4043002807 缓冲块LGB345-A8*31 Rubber block Y 8

31 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 4
32 29330086731 门锁卡板 Lock plate Y 2
33 4190003748 机罩门锁总成NBS504LG-1 Lock Y 2
34 29330074682 海绵 Sponge Y 2
35 4014000139 螺钉GB825-M12EpZn-20 Screw Y 4
36 29330075891 垫片 Spacer Y 8
37 29330077461 卡子胶条 Sealing strip Y 2
38 4043000956 卡子胶条LGB320-S930 Sealing strip Y 2
39 29330073611 海绵9302525 Sponge Y 2
40 29330076401 海绵 Sponge Y 1
41 4043002572 卡子胶条LGB320-S640 Sealing strip Y 1
42 29330077471 卡子胶条 Sealing strip Y 4
