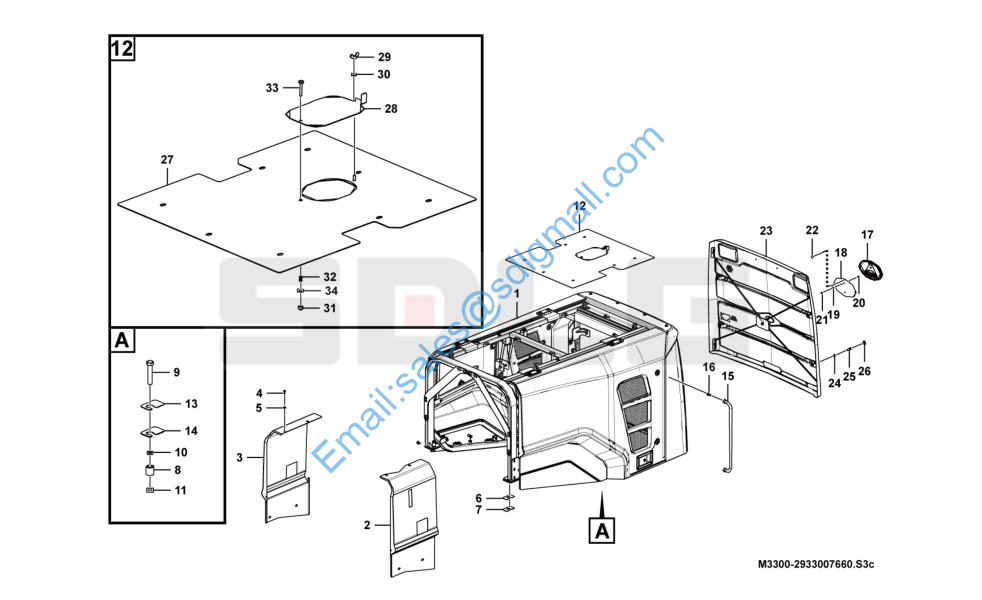

LFT26 M3300-2933007660 Bonnet

1 29330076613 发动机罩 Bonnet Y 1

2 29330073394 左盖板 Cover Y 1

3 29330073404 右盖板 Cover Y 1

4 4011001248 螺栓GB5783-M10*25flZnyc-8.8-480 Screw Y 14

5 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 14

6 29330020211 垫片 Spacer Y 2

7 29330020221 垫片 Spacer Y 2

8 4043002121 防松套LGB331-16*30*30EpZn-45 Attaching sleeve Y 8

9 4011001419 螺栓GB5783-M16*80flZnyc-8.8-480 Screw Y 8

10 4015000436 垫圈GB97.1-16flZnyc-300HV-480 Washer Y 8

11 29330023161 垫圈16 Washer Y 8

12 29330074221 上盖总成 Cover Y 1

13 29330053091 后支腿垫片 Shim Y 6

14 29330053101 后支腿垫片 Shim Y 6

15 29330070611 扶手LGB329-A25*2.5*65*650Y Hand rail Y 2

16 4011001240 螺栓GB16674-M12*25flZnyc-8.8-480 Screw Y 4

17 29360015191 后标志 Emblem Y 1

18 29330069281 过渡板 Plate Y 1

19 4015000438 垫圈GB96.1-5flZnyc-300HV-480 Washer Y 4

20 4011001565 螺栓GB5783-M5*12flZnyc-8.8-480 Screw Y 2

21 4013000377 螺母GB6170-M5flZnyc-8-480 Nut Y 2

22 4013000372 螺母GB6170-M6flZnyc-8-480 Nut Y 1

23 29330076632 后窗棂 Grille Y 1

24 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 4

25 4011001243 螺栓GB5783-M12*35flZnyc-8.8-480 Screw Y 4

26 4043002740 橡胶盖LGB348-32*5 Rubber plug Y 4

27 29330074231 上盖 Cover Y 1

28 29330074251 盖板 Cover Y 1

29 4013000230 螺母GB62.1-M8EpZn Wing nut Y 1

30 4015000256 垫圈GB96.1-8EpZn-300HV Washer Y 1

31 4013000189 螺母GB889.1-M10EpZn-8 Lock nut Y 1
32 26330005521 弹簧 Spring Y 1
33 4011001479 螺栓GB5783-M10*50flZnyc-8.8-480 Screw Y 1
34 4015000197 垫圈GB96.1-10EpZn-300HV Washer Y 3
