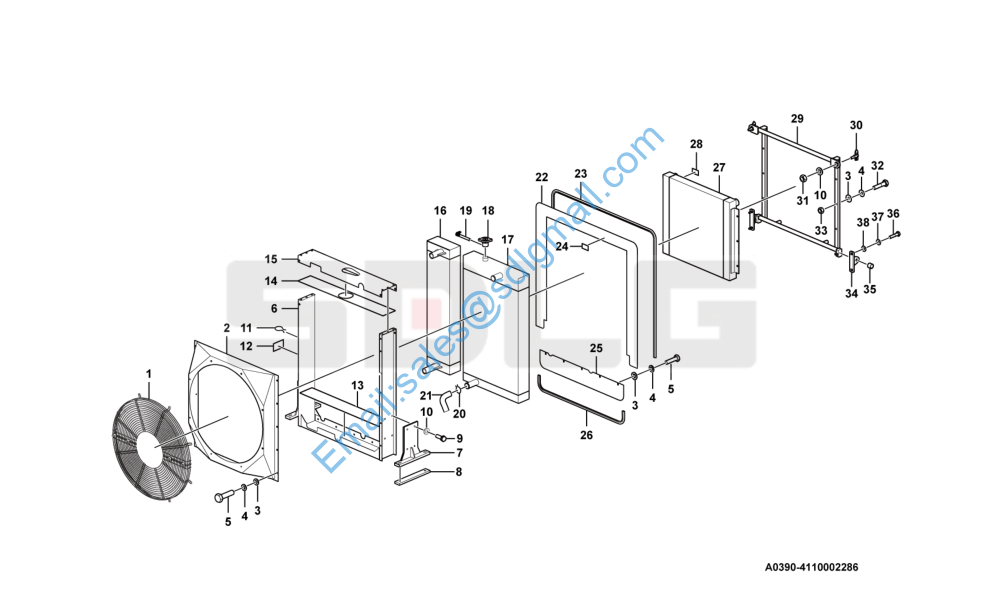

LG968N 散热器总成(321002) Radiator assembly A0390-4110002286

1 4110002286108 防护网LY-LG968N-2A-00-002 Fan guard Y 1

2 4110002286107 导风罩LY-LG968N-2A-00-001 Fan shroud Y 1

3 4015000321 垫圈GB97.2-8-300HV Washer Y 56

4 4120002278009 垫圈GB93-8 Washer Y 56

5 4011000105 螺栓GB5783-M8*20EpZn-8.8 Bolt Y 50

6 4110002286102 框架焊接部件LY-LG968N-2A-37-020 Bracket Y 1

7 4110002286110 支架焊接部件LY-LG958L-3-37-040 Radiator bracket N 2

8 4110000478012 减震垫LY-LG956-2A-00-003 Rubber mat Y 4

9 4011000087 螺栓GB5783-M12*20EpZn-8.8 Screw Y 8

10 4015000026 垫圈GB93-12-65Mn Spring washer Y 10

11 4110001205014 管夹GJ4 Clamp N 2

12 4110002286109 临工铝标牌BP-SDLG Instrument plate N 1

13 4110002286112 下减震垫LY-LG968N-2A-00-007 Damper mat Y 1

14 4110002286105 上减震垫LY-LG968N-2A-00-006 Damper mat Y 1

15 4110002286103 盖板部件LY-LG968N-2A-37-030 Cover plate Y 1

16 4110002286104 液压油散热器LY-LG968N-2A-36-01 Oil cooler Y 1

17 4110002286106 水散热器LY-LG968N-2A-37-010 Radiator Y 1

18 4110001929 Ⅱ型90Kpa复式加水口盖FG2 Cap Y 1

19 4110002370103 泄气软管(L=1500)QG2 Hose N 1

20 4110001182007 管夹GJ5 Clamp N 1

21 4110002165013 橡胶软管(L=800)QG3 Rubber tube N 1

22 4110002286101 挡风板部件LY-LG968N-2A-00-004 Wind deflector Y 1

23 4110002466017 密封条LY-LG953L-2H（AL）-00-004 Sealing collar Y 1

24 4110001182015 警示标牌BP-13 Decal N 1

25 4110002286111 下挡风板部件LY-LG968N-2A-00-005 Wind deflector Y 1

26 4110002466017 密封条LY-LG953L-2H（AL）-00-004 Sealing collar Y 1

27 4110002286113 传动油散热器LY-LG968N-2A-36-02 Oil cooler Y 1

28 4110002370110 中英文进油口标牌BP-JYK2 Name plate N 2

29 4110002286114 油散安装支架LY-LG968N-2A-00-003 Bracket Y 1

30 4110002466014 锁扣部件LY-LG946L-3-00-003 Lock Y 2

31 4013000011 螺母GB6170-M12EpZn-8 Nut Y 2

32 4011000299 螺栓GB5783-M8*40EpZn-8.8 Screw Y 6

33 4013000033 螺母GB6170-M8EpZn-8 Nut Y 6

34 4110002466021 底座LY-LG946L-3-00-004 Plate N 2

35 4110002531023 轴套 LY-LG946L-3-00-009 Sleeve Y 2

36 4011000085 螺栓GB5783-M10*35EpZn-8.8 Bolt Y 6

37 4015000025 垫圈GB93-10-65Mn Spring washer Y 6

38 4015000319 垫圈GB97.2-10-300HV Washer Y 6
