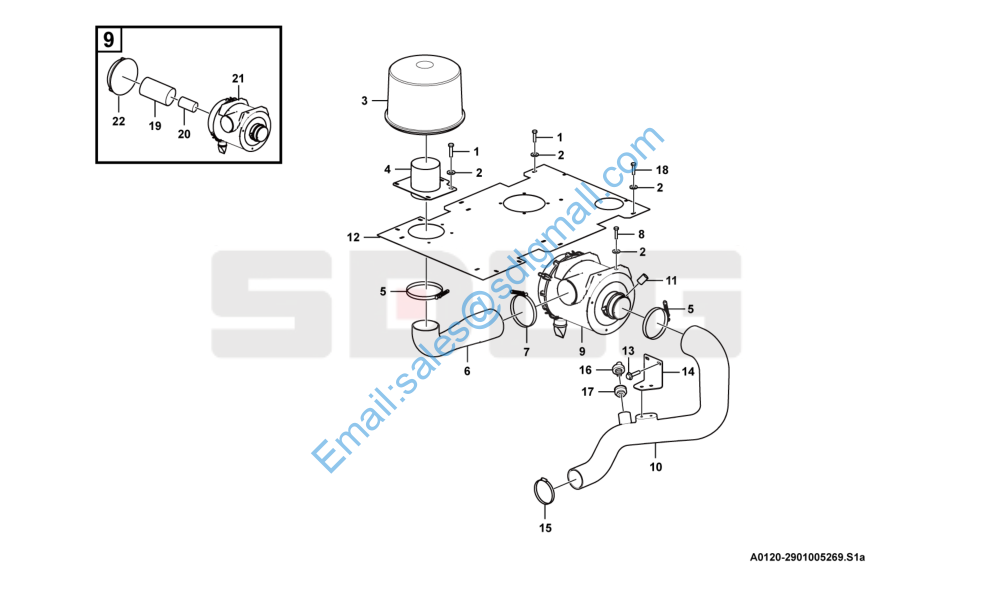

L948F 进气系统 Air inlet system A0120-2901005269

1 4011001238 螺栓GB5783-M10*20flZnyc-8.8-480 Screw Y 13

2 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 16

3 4110000680 预滤器H002432 Primary filter Y 1

4 29010053511 进气管组件 Air inlet housing Y 1

5 4019000029 T型抱箍φ127CQ136752 Clamp Y 2

6 29010053541 进气胶管 Hose Y 1

7 4110000718 T型抱箍φ139 Clamp Y 1

8 4011001262 螺栓GB5782-M10*55flZnyc-8.8-480 Bolt Y 2

9 4110002715 空气滤清器FKG110484 Air filter Y 1

10 29010053551 进气胶管 Hose Y 1

11 4110000682 压差指示器X002277 Indicator Y 1

12 29010053561 上盖板 Cover plate Y 1

13 4011001297 螺栓GB16674.1-M8*16flZnyc-8.8-480 Screw Y 4

14 29010053581 空滤支架 Bracket Y 1

15 4017000006 喉箍JB8870-d100 Clamp Y 1

16 11220460 传感器 Sensor Y 1

17 11210293 接头 Connector Y 1

18 4011001268 螺栓GB5783-M10*16flZnyc-8.8-480 Screw Y 1

19 4110002715001 空滤滤芯P626096 Air filter insert Y 1

20 4110002715002 安全滤芯P626104 Air filter insert Y 1

21 4110002715003 空气滤清器壳体P630226 Air filter housing N 1

22 4110002715004 空气滤清器盖P626094 Filter cover N 1
