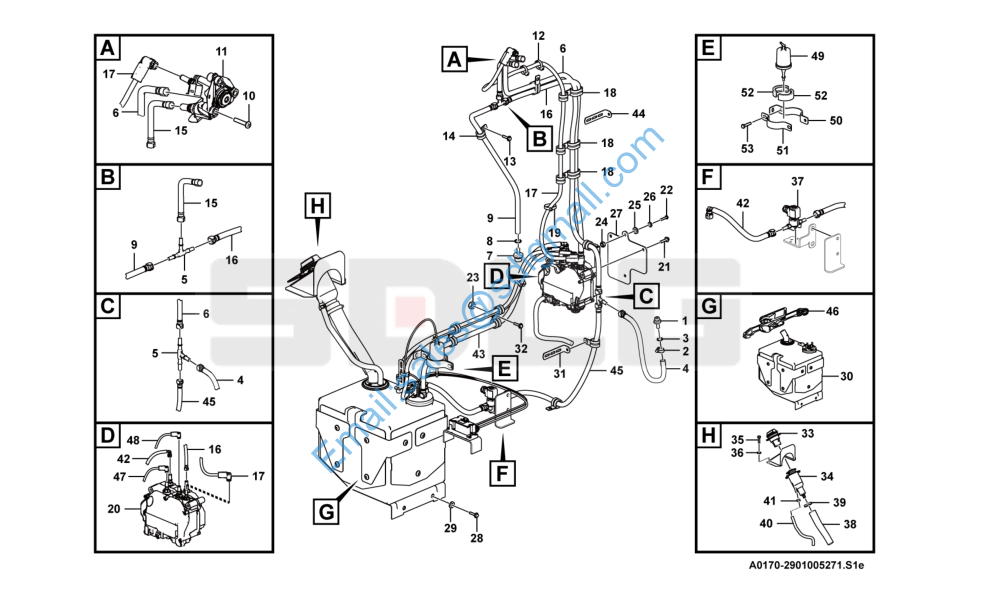

L938F DEF系统 Assembly compound A0170-2901005271

1 29010047801 接头M18*1.5 Nipple Y 1

2 4190000343 喉箍JB8870-d16 Clamp Y 2

3 4030000058 垫圈JB1002-18-T2 Washer Y 1

4 29010053711 水管 Hose Y 1

5 11220432 三通接头 3-way nipple Y 2

6 29010053721 水管 Hose Y 1

7 29010047711 接头M26*1.5 Nipple Y 1

8 4015000196 垫圈JB1002-26-T2 Washer Y 1

9 29010053731 水管 Hose Y 1

10 4014000548 螺钉GB70.1-M6*40flZnyc-8.8-480 Screw Y 3

11 11220427 尿素喷嘴 Nozzle Y 1

12 4190001839 扎丝LG13-ZS4*160 Cable tie Y 12

13 4011001297 螺栓GB16674.1-M8*16flZnyc-8.8-480 Screw Y 17

14 4041002377 管夹LGB169-A20*12.5 Clamp Y 10

15 29010053741 水管 Hose Y 1

16 29010053751 水管 Hose Y 1

17 11220466 软管 Hose Y 1

18 26370001971 管夹 Clamp N 8

19 4190001832 扎丝RTGB-200ST Cable tie Y 2

20 11220428 尿素泵 Pump Y 1

21 4011001303 螺栓GB16674.1-M8*90flZnyc-8.8-480 Screw Y 2

22 4011001342 螺栓GB5783-M8*130flZnyc-10.9-480 Screw Y 1

23 4013000373 螺母GB6170-M8flZnyc-8-480 Nut Y 4

24 4013000391 螺母GB6170-M8flZnyc-10-480 Nut Y 1

25 4015000430 垫圈GB97.1-8flZnyc-300HV-480 Washer Y 1

26 4015000425 垫圈GB96.1-8flZnyc-300HV-480 Washer Y 7

27 29010053971 安装板 Plate Y 1

28 4011001248 螺栓GB5783-M10*25flZnyc-8.8-480 Screw Y 4

29 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 4

30 11223075 尿素箱 Def tank Y 1

31 29010053791 支架 Bracket Y 2

32 4011001295 螺栓GB16674.1-M8*25flZnyc-8.8-480 Screw Y 2

33 11220430 上盖 Cover Y 1

34 11222392 过滤器 Filter Y 1

35 4014000546 螺钉GB70.1-M6*25flZnyc-8.8-480 Screw Y 4

36 4015000424 垫圈GB97.1-6flZnyc-300HV-480 Washer Y 4

37 11220434 电磁阀 Solenoid valve Y 1

38 29010053861 加注管 Hose Y 1

39 4017000009 喉箍JB8870-d50 Clamp Y 2

40 4030001124 胶管JB8406-B13*400 Hose assembly Y 1

41 4017000010 喉箍JB8870-d20 Clamp Y 2

42 29010053781 水管 Hose Y 1

43 29010053771 水管 Hose Y 1

44 29010058571 支架 Bracket Y 1

45 29010053761 水管 Hose Y 1

46 4110002518 拉紧器 Tensioner Y 1

47 11220436 软管 Hose Y 1

48 11220435 软管 Hose Y 1

49 11220429 过滤器 Filter N 1

50 29010047761 支架 Bracket Y 1

51 29010047771 支架 Bracket Y 1

52 29010047781 橡胶垫 Rubber sleeve Y 2

53 4011001247 螺栓GB5783-M8*20flZnyc-8.8-480 Screw Y 2
