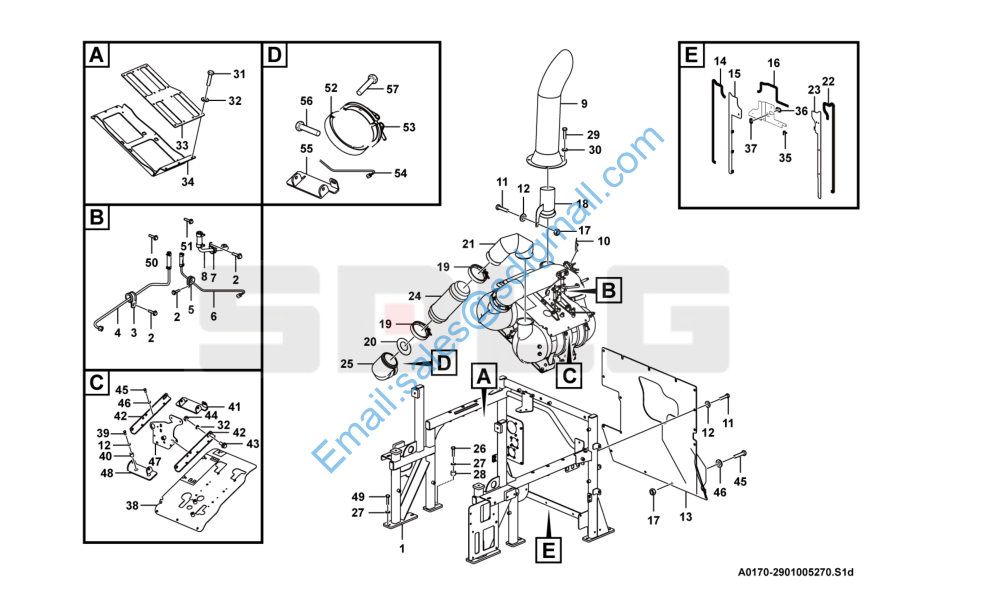

L938F 尾气处理系统 Assembly compound A0170-2901005270

1 29010053271 后处理支架 Bracket Y 1

2 4011001313 螺栓GB16674.1-M8*12flZnyc-8.8-480 Screw Y 4

3 26370001212 管夹 Clamp N 1

4 11220461 传感器单元 Sensor Y 1

5 29010052371 管夹 Clamp Y 2

6 11220462 传感器单元 Sensor Y 1

7 26370001911 管夹 Clamp N 1

8 11220463 传感器单元 Sensor Y 1

9 4110001754 排气尾管 Pipe Y 1

10 29010053591 板 Plate Y 1

11 4011001246 螺栓GB5783-M8*16flZnyc-8.8-480 Screw Y 23

12 4015000425 垫圈GB96.1-8flZnyc-300HV-480 Washer Y 32

13 29010053921 隔板 Insulator Y 1

14 4043001033 卡子胶条LGB320-TA1620 Sealing strip Y 1

15 29010053931 右隔板 Plate Y 1

16 4043001034 卡子胶条LGB320-TA1090 Sealing strip Y 1

17 4013000373 螺母GB6170-M8flZnyc-8-480 Nut Y 5

18 29010054671 排气管 Exhaust pipe Y 1

19 11220422 V型抱箍 V-band clamp Y 3

20 11220423 衬垫 Gasket Y 3

21 11220464 排气管 Exhaust pipe Y 1

22 4043001035 卡子胶条LGB320-TA1700 Sealing strip N 1

23 29010053941 左隔板 Plate Y 1

24 11220425 排气软管 Exhaust hose Y 1

25 16885019 EXHAUST PIPE Exhaust pipe N 1

26 4011001327 螺栓GB5782-M12*60flZnyc-10.9-480 Screw Y 8

27 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 10

28 29030026851 隔套 Spacer sleeve Y 8

29 4011001248 螺栓GB5783-M10*25flZnyc-8.8-480 Screw Y 4

30 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 20

31 4011001404 螺栓GB5783-M10*25flZnyc-10.9-480 Bolt Y 22

32 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 10

33 29010053951 安装板 Plate Y 1

34 29010053961 安装板 Plate Y 1

35 4043001001 卡子胶条LGB320-U130 Sealing strip Y 1

36 4043000987 卡子胶条LGB320-U250 Sealing strip Y 1

37 4043001028 卡子胶条LGB320-U170 Sealing strip Y 1

38 29010053601 隔板 Bracket Y 1

39 4011001396 螺栓GB5783-M8*35flZnyc-8.8-480 Screw Y 4

40 29010047691 隔套 Spacer bushing Y 4

41 29010053621 安装板 Plate Y 1

42 29010053661 板 Plate Y 2

43 4011001299 螺栓GB16674.1-M10*25flZnyc-8.8-480 Screw Y 4

44 4013000370 螺母GB6170-M10flZnyc-8-480 Nut Y 4

45 4011001247 螺栓GB5783-M8*20flZnyc-8.8-480 Screw Y 10

46 4015000430 垫圈GB97.1-8flZnyc-300HV-480 Washer Y 6

47 29010053671 安装板 Plate Y 1

48 29010053691 安装板 Plate Y 1

49 4011001208 螺栓GB5783-M12*30flZnyc-10.9-480 Screw Y 2

50 4011001276 螺栓GB16674.1-M6*20flZnyc-8.8-480 Screw Y 1

51 4011001389 螺栓GB5783-M6*25flZnyc-8.8-480 Screw Y 2

52 16879620 HALF CLAMP Half clamp N 1

53 16880105 HALF CLAMP Half clamp N 1

54 16880218 WIRE MESH Wire mesh N 1

55 16883702 BRACKET D6 Bracket N 1

56 4011001275 螺栓GB16674.1-M6*16flZnyc-8.8-480 Screw Y 2

57 4011001301 螺栓GB16674.1-M8*30flZnyc-8.8-480 Screw Y 4
