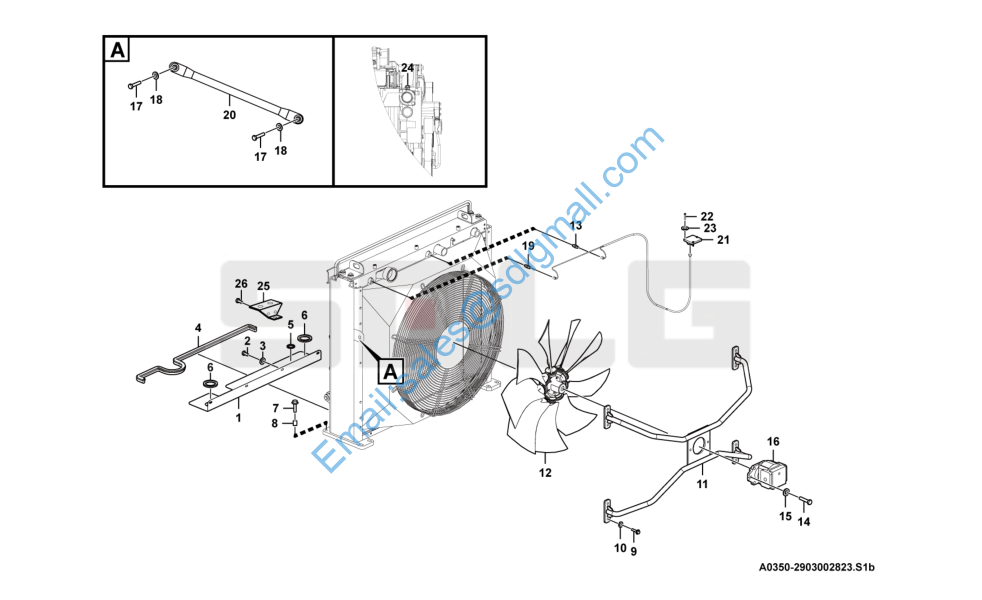

L938F 风扇马达液压系统 Fan motor hydraulic system A0350-2903002823

1 29030028291 后盖板 Plate Y 1

2 4011001246 螺栓GB5783-M8*16flZnyc-8.8-480 Screw Y 4

3 4015000425 垫圈GB96.1-8flZnyc-300HV-480 Washer Y 4

4 4043001027 卡子胶条LGB320-S1030 Sealing strip Y 1

5 29330031081 橡胶套D50 Rubber sleeve Y 1

6 4043001028 卡子胶条LGB320-U170 Sealing strip Y 2

7 4011001245 螺栓GB5782-M12*70flZnyc-10.9-480 Screw Y 8

8 29030026851 隔套 Spacer sleeve Y 8

9 4011001249 螺栓GB5783-M10*30flZnyc-8.8-480 Screw Y 8

10 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 8

11 29030028301 马达支架 Bracket Y 1

12 4110002806 风扇813_9- Fan Y 1

13 4120002637 水温传感器 Temperature sensor Y 1

14 4011001208 螺栓GB5783-M12*30flZnyc-10.9-480 Screw Y 2

15 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 2

16 4120003294 齿轮马达PGM37 Hydraulic motor Y 1

17 4011001248 螺栓GB5783-M10*25flZnyc-8.8-480 Screw Y 4

18 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 4

19 4120002638 中冷器温度传感器 Temperature sensor Y 1

20 29030028311 拉杆478 Link rod Y 2

21 4130002606 控制器CM0711 Control unit Y 1

22 4011001533 螺栓GB5783-M6*30flZnyc-8.8-480 Bolt Y 2

23 4015000424 垫圈GB97.1-6flZnyc-300HV-480 Washer Y 2

24 4030000545 螺塞JB1000-M16*1.5EpZn-35 Plug Y 1

25 29030032651 支架 Bracket Y 1

26 4011001296 螺栓GB16674.1-M8*20flZnyc-8.8-480 Screw Y 3
