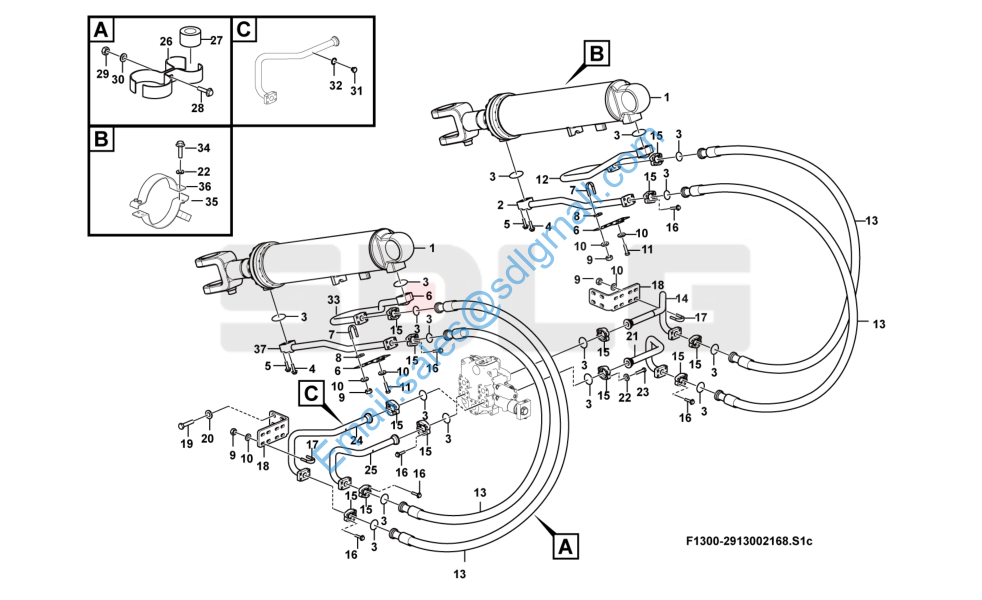

L956F 举升缸总成 Lifting cylinder assembly F1300-2913002168

1 4120009098 动臂油缸HSGF-170*90*757-1378B Lifting cylinder Y 2

2 29130021711 右动臂缸小腔钢管 Pipe Y 1

3 4030000026 O形圈GB3452.1-32.5*3.55G O-ring Y 16

4 4011001298 螺栓GB16674.1-M10*55flZnyc-8.8-480 Screw Y 8

5 4011001288 螺栓GB16674.1-M10*50flZnyc-8.8-480 Screw Y 8

6 29130013141 固定板 Anchor plate Y 2

7 4041001017 U形螺栓LGB159-13040 U-bolt Y 4

8 4041001018 底板LGB160-3040 Bracket Y 4

9 4013000370 螺母GB6170-M10flZnyc-8-480 Nut Y 24

10 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 28

11 4011001248 螺栓GB5783-M10*25flZnyc-8.8-480 Screw Y 4

12 29130013751 右动臂缸大腔钢管 Pipe Y 1

13 29130014321 胶管 Hose Y 4

14 29130013701 举升联右大腔钢管 Pipe Y 1

15 4041000026 分体法兰LGB117-310491 Flange half Y 12

16 4011001300 螺栓GB16674.1-M10*30flZnyc-8.8-480 Screw Y 44

17 4041000958 U形螺栓LGB159-03040 U-bolt Y 8

18 29130013691 支架 Bracket Y 2

19 4011001250 螺栓GB5783-M12*30flZnyc-8.8-480 Screw Y 8

20 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 8

21 29130013721 举升联右小腔钢管 Pipe Y 1

22 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 12

23 4011001354 螺栓GB5782-M10*90flZnyc-8.8-480 Screw Y 4

24 29130013771 举升联左小腔钢管 Pipe Y 1

25 29130013781 举升联左大腔钢管 Pipe Y 1

26 29130010371 管夹 Clamp Y 4

27 4041000869 缓冲套LGB123-0740 Rubber sleeve Y 4

28 4011001296 螺栓GB16674.1-M8*20flZnyc-8.8-480 Screw Y 2

29 4013000373 螺母GB6170-M8flZnyc-8-480 Nut Y 2

30 4015000430 垫圈GB97.1-8flZnyc-300HV-480 Washer Y 2

31 4041000774 螺塞LGB135-01422 Plug Y 2

32 4041000767 O形圈LGB168-11124 O-ring Y 2

33 29130013671 左动臂缸大腔钢管 Pipe Y 1

34 4011001280 螺栓GB5783-M10*40flZnyc-8.8-480 Screw Y 8

35 29130021801 管夹 Clamp Y 2

36 29130022171 管夹 Clamp Y 2

37 29130021771 左动臂缸小腔钢管 Pipe Y 1
