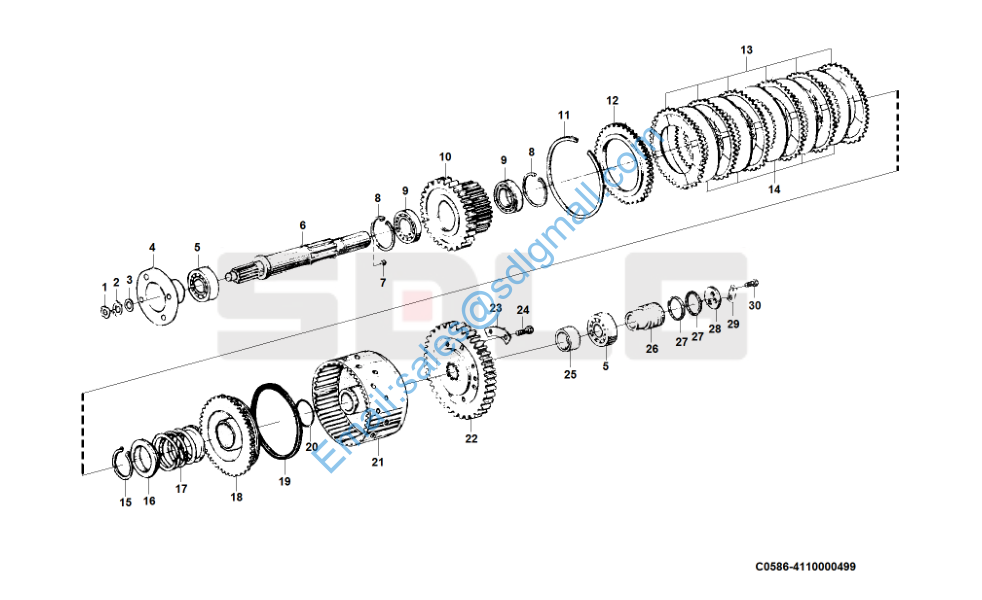

L933 输入轴总成(370804) Input shaft assembly C0586-4110000499

1 4110000499015 圆螺母01530-02010 Round nut Y 1

2 4015000285 垫圈GB858－20 Washer Y 1

3 4110000499058 垫板1BD08-00040 Plate Y 1

4 4110000499062 法兰BD08-01000 Flange Y 1

5 4021000167 P轴承GB297-32207 Bearing Y 2

6 4110000499076 输入轴1BD08-12009 Input shaft Y 1

7 4110000499089 闷塞1BD08-12007 Plug Y 1

8 4015000289 挡圈GB893.1-75-65Mn Retaining ring Y 2

9 4021000010 滚动轴承GB276-6009 Ball bearing Y 2

10 4110000499074 齿轮1BD08-12001 Gear 1bd08-12001 Y 1

11 4110000499087 挡圈1BD08-12002 Retaining ring Y 1

12 4110000499088 外端盘1BD08-12003 Disc Y 1

13 4110000499086 外摩擦片0BD08-12200 Friction disc Y 6

14 4110000499085 内摩擦片0BD08-12013 Friction disc Y 5

15 4015000155 挡圈GB894.1-60-65Mn Retaining ring Y 1

16 4110000499093 弹簧座1BD08-12014 Spring seat Y 1

17 4110000499224 弹簧BD08-12004 Spring Y 1

18 4110000499092 活塞1BD08-12012 Piston Y 1

19 4110000499084 油封圈0BD08-12005 Sealing ring Y 1

20 4030000638 O形圈GB1235-60*3.1 O-ring Y 1

21 4110000499094 离合器壳总1BD08-12100 Housing N 1

22 4110000499075 齿轮1BD08-12006 Gear 1bd08-12006 N 1

23 4110000499091 止动垫1BD08-12011 Retaining ring Y 4

24 4110000960005 螺栓01010-81025 Screw Y 8

25 4110000499077 轴套1BD08-12010 Sleeve Y 1

26 4110001984013 内封油套BD08-12008A Sleeve Y 1

27 4110001984047 密封环Φ52 BD08-00043B Sealing ring Y 2

28 4110000499053 轴端档板1BD08-00034 Guard plate Y 1

29 4110000499054 止动垫片1BD08-00035 Retaining ring Y 1

30 4110002525003 螺栓01010-80816 M8*16 Screw Y 2
