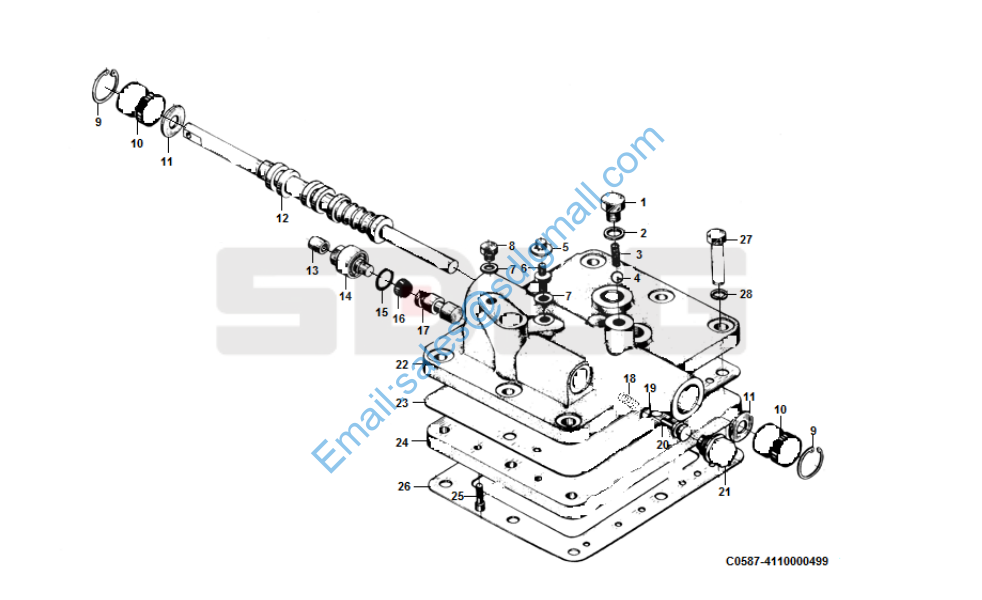

L933 变速箱操纵阀总成(370804) Control valve C0587-4110000499

1 4110001984016 螺钉ZL20-06001 Screw N 1

2 4110001984017 垫圈ZL20-06002 Washer N 1

3 4110001984018 弹簧ZL20-06003 Spring N 1

4 4110001984019 钢球10 GB308-89 Ball Y 1

5 4110001984020 防尘套(φ10)ZL20-06004 Rubber sleeve N 1

6 4110001984021 测压接头ZL20-06005 Nipple N 1

7 4110001984022 测压接头垫圈ZL20-06006 Washer N 2

8 4110000499103 螺塞M10*1-6h Q20-01 Plug N 1

9 4015000222 挡圈GB893.2-30-65Mn Retaining ring Y 2

10 4110001984024 油封14*30*10 JB2600-80 Sealing ring N 4

11 4110001984025 调整垫圈ZL20-06007 Washer N 2

12 4110001984026 操纵滑阀ZL20-06008 Valve body N 1

13 4110001984027 防尘套 (φ10)ZL20-06009 Rubber sleeve N 1

14 4110001984028 螺塞ZL20-06010 Plug N 1

15 4110001984029 O形圈22*2.5 Q26-01 O-ring N 1

16 4110001984030 皮碗ZL20-06011 Plug N 1

17 4110001984031 制动滑阀ZL20-06012 Valve body N 1

18 4110001984032 弹簧ZL20-06013 Spring N 1

19 4110001984033 O形圈16*2 Q26-01 O-ring N 1

20 4110001984034 弹簧座ZL20-06014 Spring seat N 1

21 4110001984035 螺塞ZL20-06015 Plug N 1

22 4110001984036 阀体ZL20-06016 Valve body N 1

23 4110001984037 纸垫δ0.5ZL20-06017 Gasket N 1

24 4110001984038 底板ZL20-06018 Palte N 1

25 4110001984039 圆柱头内六角螺钉M6*16 GB70-85 Screw N 15

26 4110001984040 纸垫ZL20-06001 Gasket N 1

27 4011000451 螺栓GB5782-M10*45EpZn-8.8 Screw Y 8

28 4015000381 垫圈GB7244-10-65Mn Washer N 8
