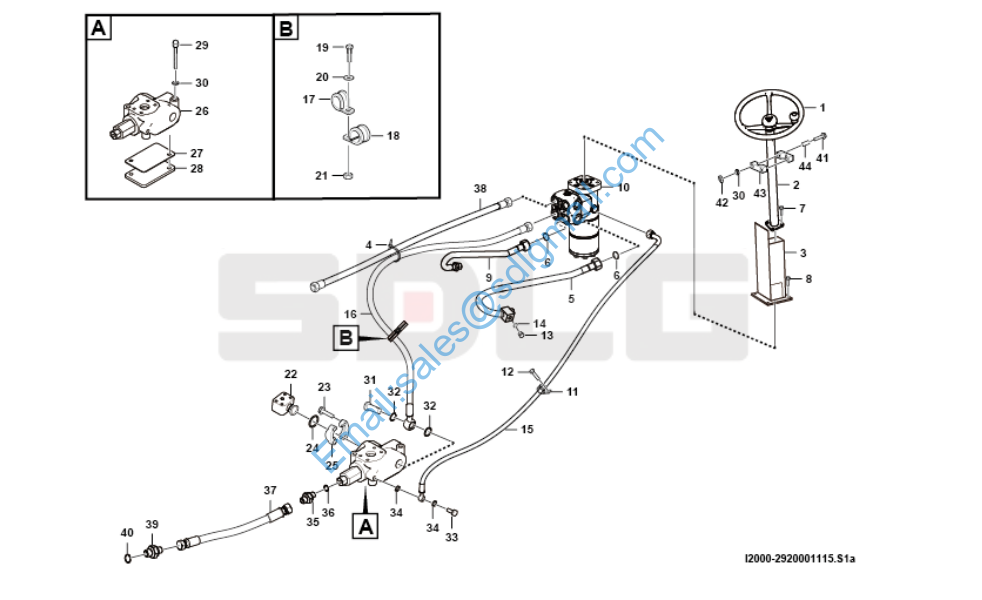

L933 转向器总成 Steering unit assembly I2000-2920001115

1 4120000018 方向盘FXP-50F Steering wheel Y 1

2 4120005406 转向柱LG20-ZXZ-28 Steering column Y 1

3 29310024341 固定架 Bracket Y 1

4 4190001839 扎丝LG13-ZS4*160 Cable tie Y 1

5 29200008561 转向器出油钢管A Pipe Y 1

6 4030000501 O形圈GB3452.1-15.0*1.80G O-ring Y 2

7 4011000473 螺栓GB16674-M10*55EpZn-8.8 Bolt Y 4

8 4011000479 螺栓GB16674-M12*30EpZn-8.8 Bolt Y 4

9 29200004031 转向器出油钢管B Hose assembly Y 1

10 29200010651 转向器BZZ6-630A总成 Diverter valve N 1

11 4041002410 管夹LGB169-A12*10 Clamp Y 1

12 4011000807 螺栓GB16674-M8*12EpZn-8.8 Bolt Y 1

13 4041000774 螺塞LGB135-01422 Plug Y 1

14 4041000767 O形圈LGB168-11124 O-ring Y 1

15 29200007772 优先阀反馈油管 Hose assembly Y 1

16 29200005032 转向器进油管 Hose assembly Y 1

17 4041002413 管夹LGB169-A25*10 Clamp Y 1

18 4041002412 管夹LGB169-A20*10 Clamp Y 1

19 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 1

20 4015000072 垫圈GB97.1-8EpZn-300HV Washer Y 1

21 4013000033 螺母GB6170-M8EpZn-8 Nut Y 1

22 29200005051 优先阀进油钢管 Pipe Y 1

23 4011000475 螺栓GB16674-M10*30EpZn-8.8 Bolt Y 4

24 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 1

25 4041000056 分体法兰LGB117-312550 Flange half Y 1

26 4120005053 优先阀VLH-240S-14 Priority valve Y 1

27 29200009871 橡胶板 Rubber plate Y 1

28 29200009981 板 Plate Y 1

29 4011000797 螺栓GB5782-M10*110EpZn-8.8 Bolt Y 2

30 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 8

31 4011000402 螺栓JB999-M33*2*50EpZn-35 Bolt Y 1

32 4030000063 垫圈JB1002-33-T2 Washer Y 2

33 4011000319 螺栓JB999-M12*1.5*28EpZn-35 Bolt Y 1

34 4030000056 垫圈JB1002-12-T2 Washer Y 2

35 4041000084 直接头LGB155-01214 Nipple Y 1

36 4030000285 O形圈GB3452.1-12.5*2.65G O-ring Y 1

37 4041001939 软管LGB164-003070 Hose assembly Y 1

38 4041001004 软管LGB164-010130 Hose Y 1

39 4041000133 直接头LGB120-01414 Nipple Y 1

40 4041000775 O形圈LGB168-21124 O-ring Y 1

41 4011000528 螺栓GB16674-M10*100EpZn-8.8 Bolt Y 2

42 4013000007 螺母GB6170-M10EpZn-8 Nut Y 2

43 29310011251 固定板 Anchor plate Y 2

44 29310011301 调整座 Block Y 2
