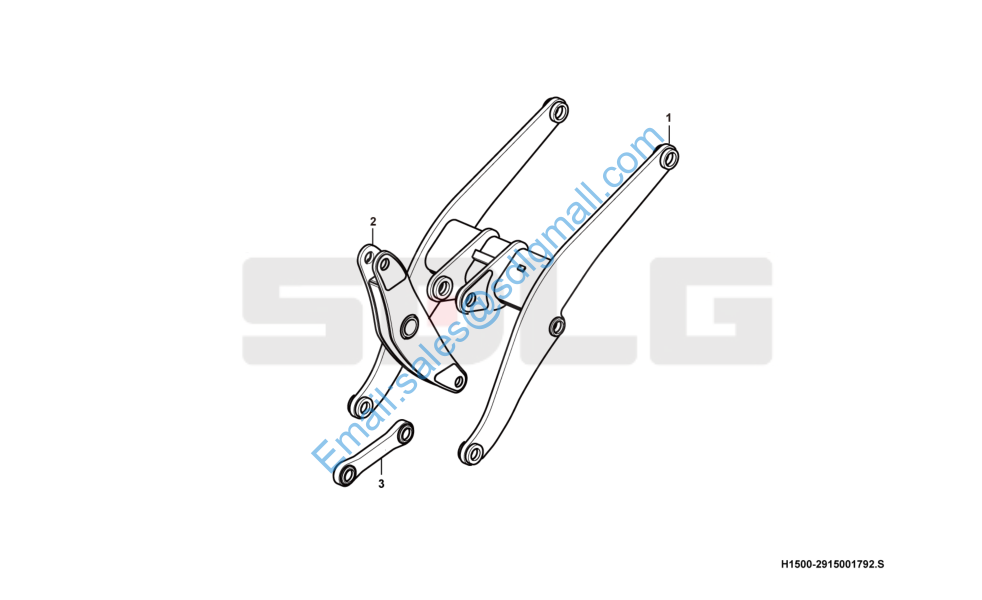

L953F 连杆机构 Linkage system H1500-2915001792

1 29150017934 动臂LL2810A Lifting arm N 1

2 29150012281 摇臂 Rocker arm Y 1

3 29150012291 连杆 Connecting rod N 1

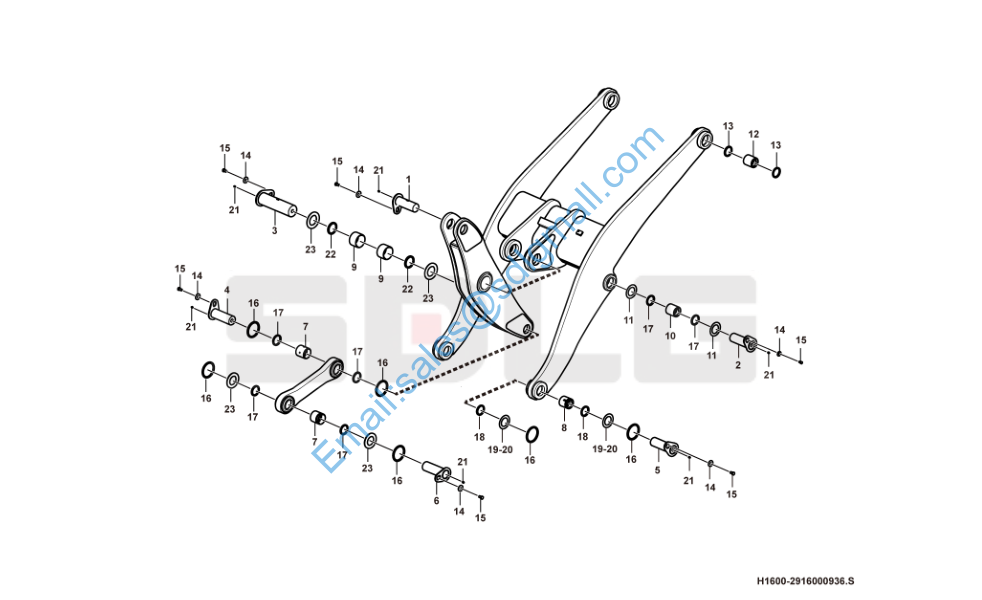

工作装置附件 Working equipment H1600-2916000936

1 4043001506 销轴LGB301-95*130*240-1000Y Weld pin Y 1

2 4043000728 销轴LGB301-85*115*210/2G-40Cr Weld pin Y 2

3 4043001422 销轴LGB301-110*212*405-1300Y Weld pin Y 1

4 4043001507 销轴LGB301-85*130*240-1000Y Weld pin Y 1

5 4043000173 销轴LGB301-80*140*260-40Cr Weld pin Y 2

6 4043001505 销轴LGB301-85*142*265-1000Y Weld pin Y 1

7 4043001508 轴套LGB302-85*95C2 Bushing Y 2

8 4043000026 轴套LGB302-80*90A2 Bushing Y 2

9 4043000467 轴套LGB302-110*80C1 Bushing Y 2

10 4043000439 轴套LGB302-85*80C2 Bushing Y 2

11 4043000035 垫片LGB303-85*130*1 Shim Y 4

12 4043000752 轴套LGB302-95*104C2 Bushing Y 2

13 4043000057 防尘圈LGB307-95 Sealing ring Y 4

14 4040000051 垫圈LGB001-16flZnyc-480 Washer Y 8

15 4011001261 螺栓GB5783-M16*30flZnyc-8.8-480 Screw Y 8

16 4043000059 O形圈LGB308-128*12 O-ring Y 8

17 4043000056 防尘圈LGB307-85 Sealing ring Y 8

18 4043000055 防尘圈LGB307-80 Sealing ring Y 4

19 4043000033 垫片LGB303-80*130*1 Shim Y 4

20 4043000034 垫片LGB303-80*130*2 Shim Y 4

21 4030000065 油杯JB7940.1-M10*1 Lubricating nipple Y 8

22 4043000058 防尘圈LGB307-110 Sealing ring Y 2

23 4043000043 垫片LGB303-110*180*1 Shim Y 4
