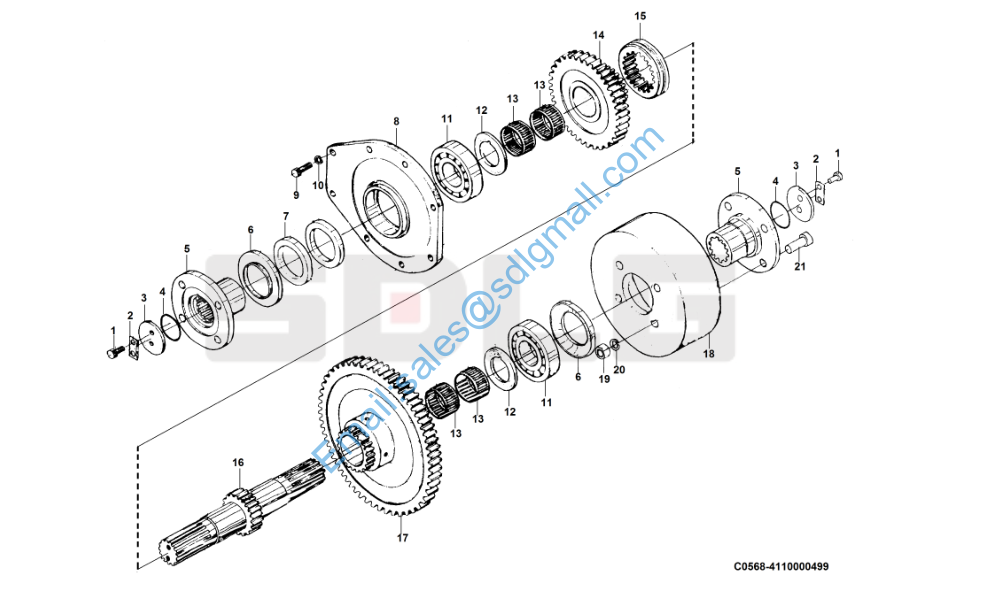

L933 输出轴总成（330101） Output shaft C0568-4110000499

1 4011001164 螺栓GB5783-M10*25-8.8 Screw Y 4

2 4110000145062 螺栓锁片 1269 302 164 Lock plate N 2

3 4110000499259 压板ZL20-0320078 Plate N 2

4 4110000499260 O形圈 52×5.7 GB/T1235-1976 O-ring Y 2

5 4110000038243 输出轴法兰 ZL20-030013-1 Flange Y 2

6 4110000038241 防尘罩 ZL20-030030 Dust cap Y 2

7 4110000499261 唇形密封圈 FB65*90*10 GB/T9877.1-1988 Sealing ring Y 4

8 7200002265 输出轴后端盖ZL20-030071 Cover plate Y 1

9 4011000777 螺栓GB5783-M10*30-8.8 Screw Y 8

10 4015000025 垫圈GB93-10-65Mn Spring washer Y 8

11 4021000022 滚动轴承GB276-6310 Ball bearing Y 2

12 4110000038232 止推环 ZL20-030010A Thrust washer Y 2

13 4110000038233 轴承衬套 SF-15530 Bushing Y 4

14 4110000499262 齿轮(Z=36) ZL20-03009X1 Gear N 1

15 4110000038017 高低档滑动齿套ZL20-030019 Bushing Y 1

16 4110000499263 输出轴ZL20-030072A Shaft Y 1

17 4110000499264 齿轮(Z=56) ZL20-030021X1 Gear Y 1

18 4110000038242 手制动鼓 ZL20-030029 Disc brake Y 1

19 4013000013 螺母GB6170-M14EpZn-8 Nut Y 4

20 4015000027 垫圈GB93-14-65Mn Spring washer Y 4

21 4011000772 螺栓GB5783-M14*40-8.8 Screw Y 4
