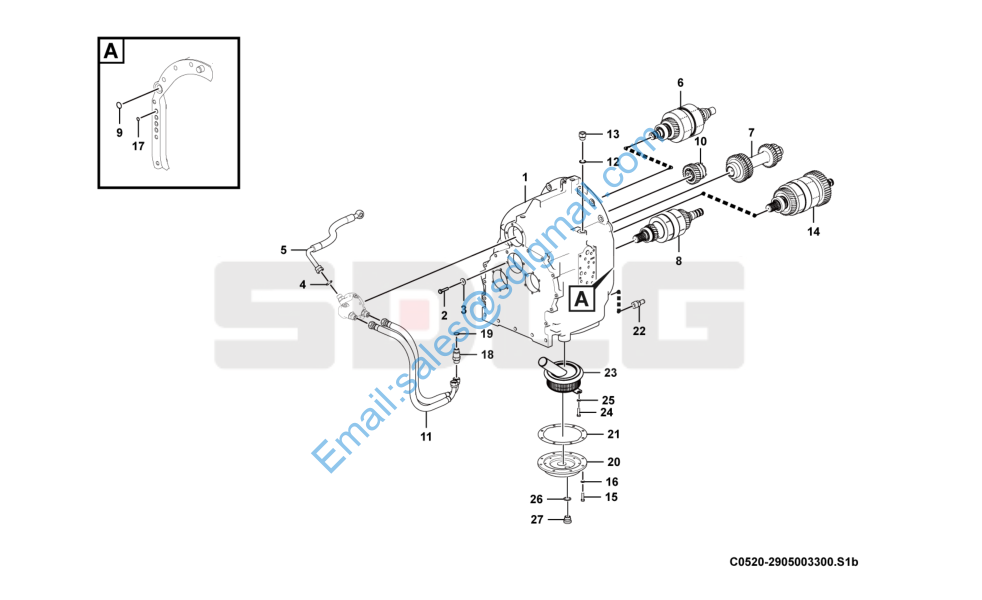

离合器箱总成 Transm ission C0520-2905003300

1 29050012942 变速箱体 Transm ission house Y 1

2 4011000934 螺栓G B5783-M 8*12-8.8 Screw Y 2

3 4015000297 垫圈LG B001-8 W asher Y 2

4 4030000809 O 形圈G B3452.1-12.5*1.80G -FPM O -ring Y 5

5 29050013001 胶管 H ose assem bly Y 1

6 29050013231 离合器KFR Clutch Y 1

7 29050025181 中间轴总成 Interm ediate shaft assem bly N 1

8 29050013381 离合器K34 Clutch Y 1

9 4030000816 O 形圈G B3452.1-23.6*3.55G -FPM O -ring Y 1

10 29050014541 后退挡过渡齿轮总成 G ear Y 1

11 29050013071 F/R胶管总成 H ose assem bly Y 2

12 4030000060 垫圈JB1002-22-T2 W asher Y 1

13 29050013161 油嘴 N ipple Y 1

14 29050025191 离合器K12 Clutch Y 1

15 4011001500 螺栓G B5783-M 8*30flZnyc-8.8-480 Screw Y 8

16 29050015471 垫圈8 W asher Y 8

17 4030000810 O 形圈G B3452.1-11.8*1.80G -FPM O -ring Y 4

18 29050013701 接头 N ipple Y 2

19 4041001270 O 形圈LG B168-21724 O -ring Y 2

20 29050035701 油底壳 Cover Y 1

21 29050013331 密封垫 G asket Y 1

22 29050012951 油管接头 N ipple Y 1

23 29050013361 滤油器总成LX736/180 O il filter Y 1

24 4011001291 螺栓G B5783-M 6*12flZnyc-8.8-480 Bolt Y 2

25 29050015461 垫圈6 W asher Y 2

26 4041001264 O 形圈LG B168-22331 O -ring Y 1

27 29050013351 放油螺塞 Plug Y 1

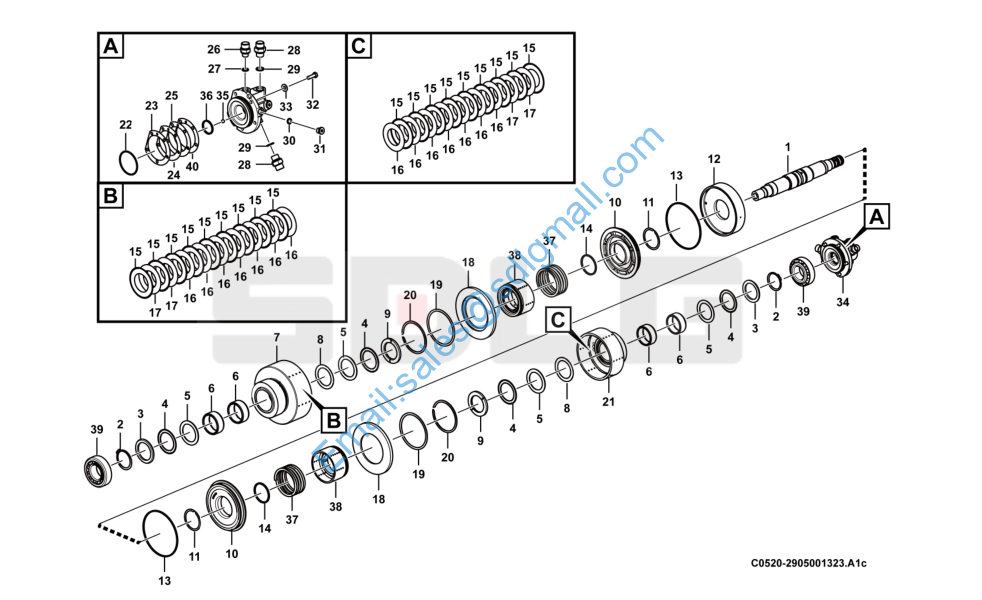

离合器KFR Clutch C0520-2905001323

1 29050013801 KFR轴 Clutch shaft Y 1
2 29050014061 挡圈54 Retaining ring Y 2
3 29050013811 止推垫片 Shim Y 2
4 4110000628 轴承N TA-3446 Bearing Y 4
5 29050014041 止推垫片 Shim Y 4
6 4110000625 轴承W J-344016 Bearing Y 4
7 29050013821 齿轮总成R11 G ear Y 1
8 29050013931 止推垫片 Shim Y 2
9 29050013951 隔离环 Spacer ring Y 2
10 29050013881 活塞 Piston Y 2
11 29050013991 卡环 Retaining ring Y 2
12 29050013891 隔离架 Separator Y 1
13 29050014001 活塞环 Piston ring Y 2
14 29050013971 活塞环 Piston ring Y 2
15 29050013861 主动摩擦片 Friction disc Y 18
16 29050013871 从动摩擦片 Friction disc Y 6
17 29050015511 从动摩擦片 Friction disc Y 12
18 29050013851 受压盘 Pressure disc Y 2
19 29050013841 卡环 Retaining ring Y 2
20 29050013831 卡环 Retaining ring Y 2
21 29050013901 齿轮总成R12 G ear Y 1
22 4030000820 O 形圈G B3452.1-82.5*3.55G -FPM O -ring Y 1
23 29050013241 调整垫片 Shim Y 2
24 29050013251 调整垫片 Shim Y 4
25 29050013261 调整垫片 Shim Y 6
26 29050014201 直接头 N ipple Y 1
27 4040000019 O 形圈LG B168-21324 O -ring Y 1
28 4041000132 直接头LG B120-02220 N ipple Y 2
29 4041001270 O 形圈LG B168-21724 O -ring Y 2
30 4041000775 O 形圈LG B168-21124 O -ring Y 2

31 29050014411 螺塞 Plug Y 2
32 4011000448 螺钉G B70.1-M 8*30EpZn-8.8 Screw Y 5
33 29050013451 垫片 Shim Y 5
34 29050013631 配油器 O il distributor Y 1
35 4090000130 钢球G B308-8.5-G Cr15 Ball Y 2
36 29050013911 活塞环 Piston ring Y 3
37 29050013981 弹簧 Spring Y 2
38 29050013961 离合器轮毂 Clutch hub Y 2
39 4021000173 轴承H M 803149/2/110/2/Q CL7C Bearing Y 2
40 29050026111 调整垫片 Shim Y 1
