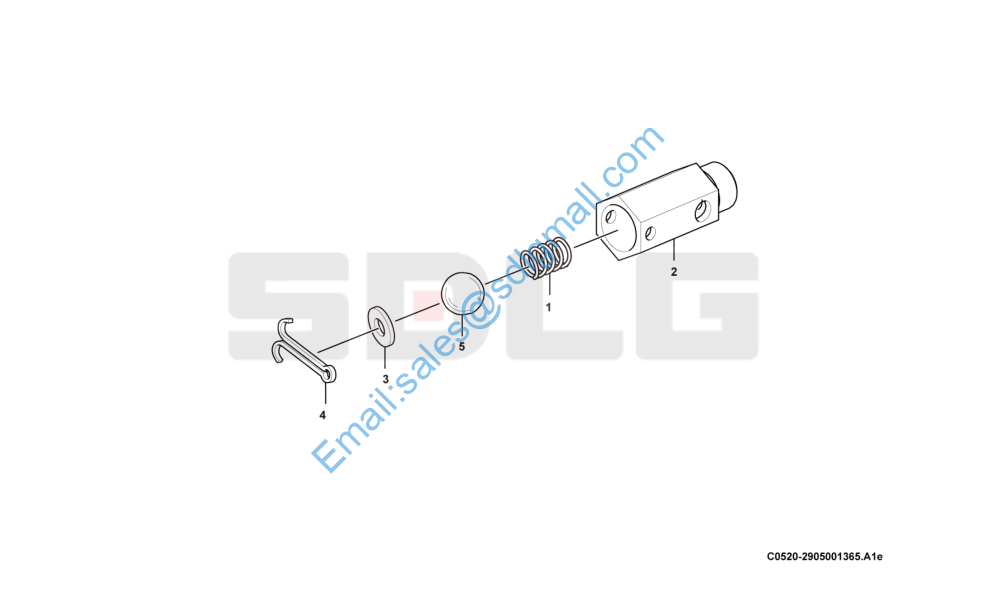

安全阀 Safety valve C0520-2905001365

1 29050015321 弹簧 Spring Y 1

2 29050015311 阀体 V alve body N 1

3 4015000072 垫圈G B97.1-8EpZn-300H V W asher Y 1

4 4016000281 开口销G B91-4*32EpZn-Q 235B Split pin Y 1

5 4090000127 钢球G B308-15-G Cr15 Ball N 1

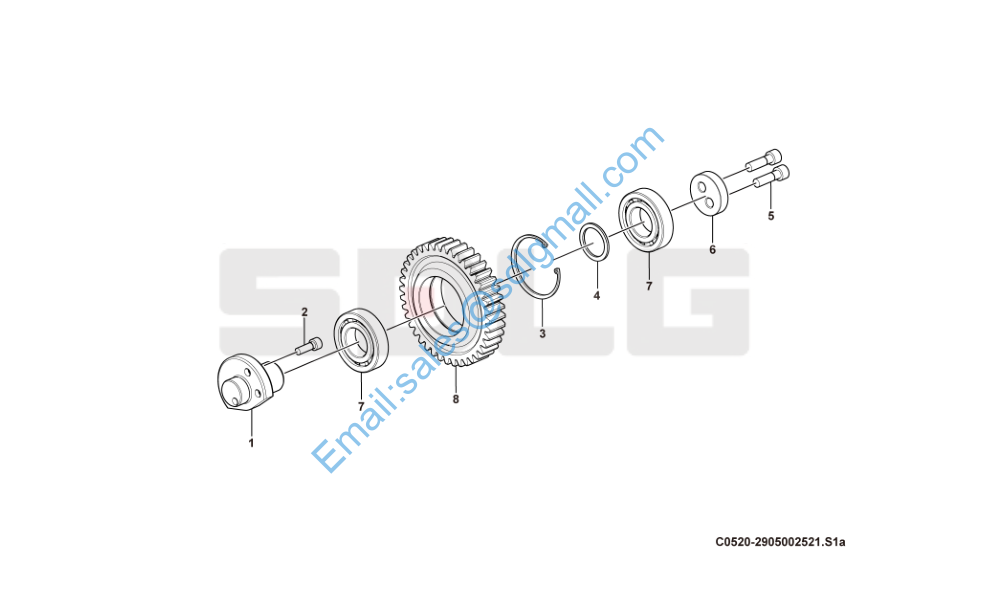

取力器过渡齿轮总成 G ear C0520-2905002521

1 29050013404 轴 Shaft Y 1

2 4014000587 螺钉G B70.1-M 8*25-10.9 Screw Y 5

3 4015000273 挡圈G B893.2-72-65M n Retaining ring Y 1

4 29050013421 限位环 Retaining ring Y 1

5 4014000344 螺钉G B70.1-M 10*30-10.9 Screw Y 2

6 29050013411 垫片 Shim Y 1

7 4021000158 轴承N J207ECP Bearing Y 2

8 29050024341 齿轮 齿轮 Y 1

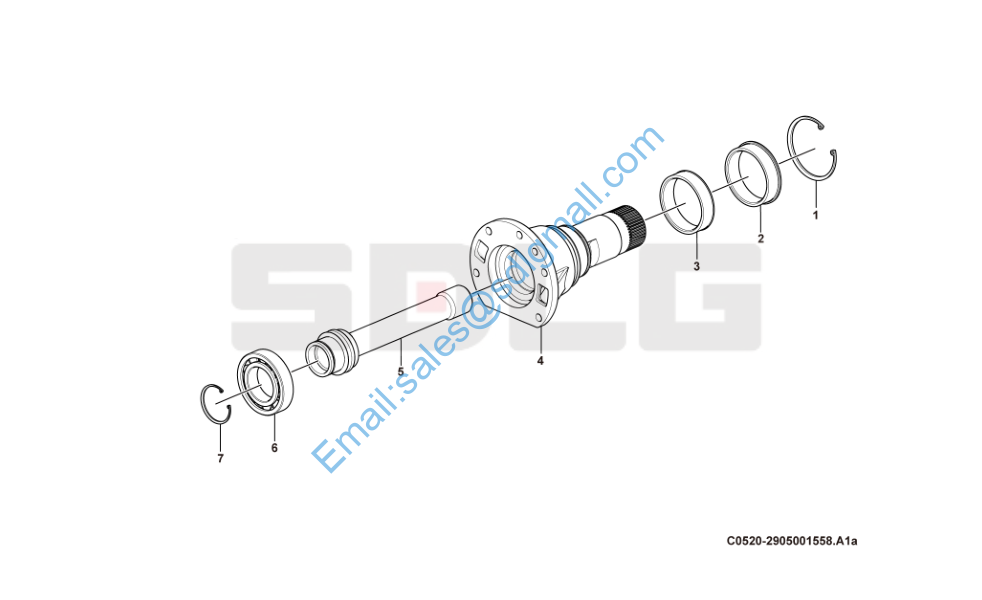

导轮座总成 Stator housing C0520-2905001558

1 4015000306 挡圈G B894.1-75-65M n Retaining ring Y 1

2 29050015551 内圈 Sleeve Y 1

3 4110000707 轴承K85*92*20 Bearing Y 1

4 29050015571 导轮座 Converter base Y 1

5 29050015561 涡轮轴 Turbine shaft Y 1

6 4110000652 滚动轴承6210 Bearing Y 1

7 4015000046 挡圈G B894.1-50-65M n Retaining ring Y 1
