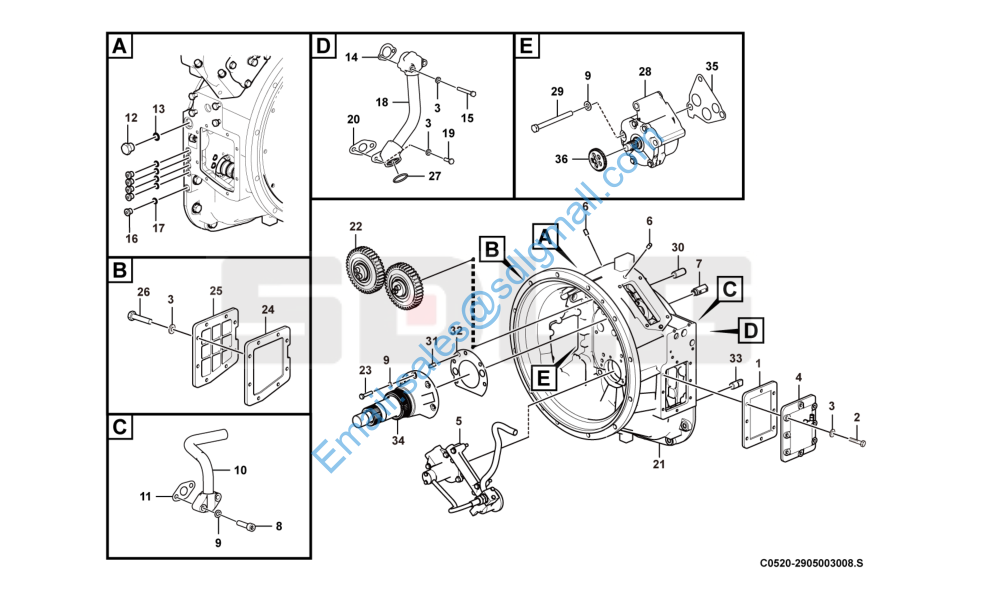

Torque converter C0520-2905003008

1 29050013081 密封垫 G asket Y 1

2 4011001500 螺栓G B5783-M 8*30flZnyc-8.8-480 Screw Y 8

3 29050015471 垫圈8 W asher Y 20

4 29050013091 盖板总成 Cover plate Y 1

5 29050014501 变矩器润滑系统 Lubricating system N 1

6 4016000243 销G B119.2-10*18-B Pin Y 4

7 29050013651 安全阀 Safety valve Y 1

8 4011000796 螺钉G B70.1-M 10*40-8.8 Screw Y 2

9 29050013611 垫片 Shim Y 10

10 29050013641 管 Tube Y 1

11 29050013661 密封垫 G asket Y 1

12 4041000777 螺塞LG B135-02227 Plug Y 1

13 4041001265 O 型圈LG B168-21924 O -ring Y 1

14 29050013671 密封垫 G asket Y 1

15 4011000719 螺栓G B5782-M 8*65-8.8 Screw Y 2

16 29050014411 螺塞 Plug Y 5

17 4041000775 O 形圈LG B168-21124 O -ring Y 5

18 29050013731 吸油管 Tube Y 1

19 4011000724 螺栓G B5783-M 8*25-8.8 Bolt Y 2

20 29050018411 密封垫 G asket Y 1

21 29050012973 变矩器壳体 Converter housing N 1

22 29050025211 取力器过渡齿轮总成 G ear N 1

23 4011000777 螺栓G B5783-M 10*30-8.8 Screw Y 5

24 29050013181 密封垫 G asket Y 1

25 29050013191 端盖 End plate Y 1

26 4011001397 螺栓G B5783-M 8*25flZnyc-8.8-480 Screw Y 8

27 4030000818 O 形圈G B3452.1-35.5*3.55G -FPM O -ring Y 1

28 4110003088 变速泵总成 G ear pum p Y 1

29 4011000932 螺栓G B5782-M 10*110-8.8 Bolt Y 3

30 4016000224 销G B119.2-20h6*45-B Pin Y 1

31 29050013601 定位销 Locating pin Y 1

32 29050013781 垫片 G asket Y 1

33 29050013371 销轴 Pin Y 1

34 29050015581 导轮座总成 Seat N 1

35 29050013591 密封垫 G asket Y 1

36 29050030021 齿轮 G ear Y 1

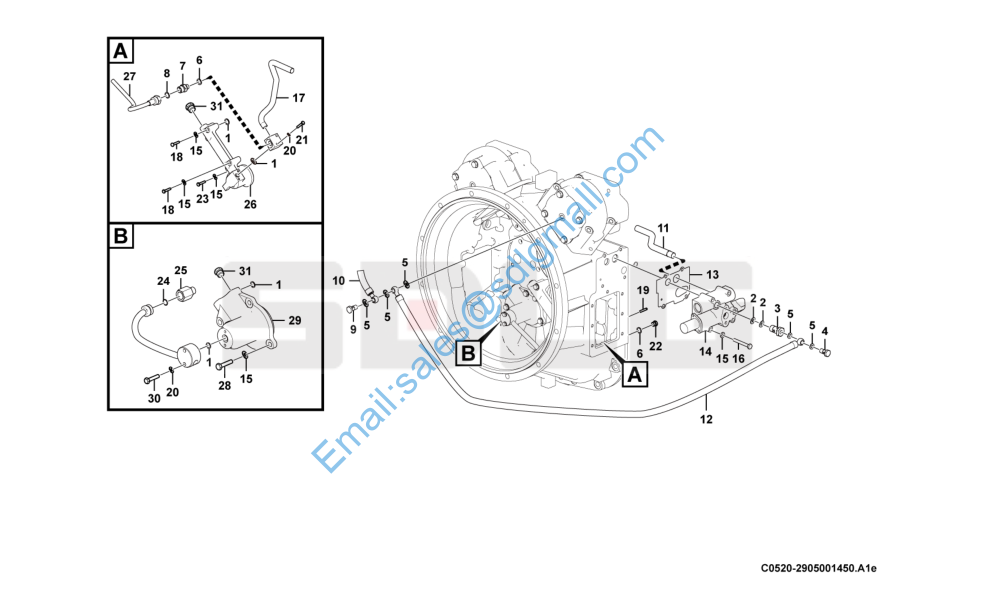

变矩器润滑系统 Lubricating system C0520-2905001450

1 4030000810 O 形圈G B3452.1-11.8*1.80G -FPM O -ring Y 6

2 4030000058 垫圈JB1002-18-T2 W asher Y 2

3 29050014221 螺栓 Screw Y 1

4 29050013121 螺栓 Screw Y 2

5 4030000056 垫圈JB1002-12-T2 W asher Y 7

6 4040000019 O 形圈LG B168-21324 O -ring Y 2

7 29050014201 直接头 N ipple Y 1

8 4030000809 O 形圈G B3452.1-12.5*1.80G -FPM O -ring Y 1

9 29050012991 螺栓 Screw Y 1

10 29050013221 管 H ose assem bly Y 1

11 29050013621 回油管 Tube Y 1

12 29050013131 胶管 H ose assem bly Y 1

13 29050013151 密封垫 G asket Y 1

14 29050012981 变矩器润滑阀 Lubricating oil valve Y 1

15 29050015471 垫圈8 W asher Y 11

16 4011000718 螺栓G B5782-M 8*60EpZn-8.8 Screw Y 4

17 29050013771 管 Tube Y 1

18 4011000717 螺栓G B5782-M 8*60-8.8 Screw Y 3

19 29050018421 销 Pin Y 2

20 29050015461 垫圈6 W asher Y 4

21 4011000713 螺栓G B5782-M 6*40-8.8 Screw N 2

22 4041001459 螺塞LG B135-11422 Plug Y 1

23 4011000715 螺栓G B5783-M 8*35-8.8 Screw Y 2

24 4030000811 O 形圈G B3452.1-14.0*1.80G -FPM O -ring Y 1

25 29050013791 管接头 N ipple Y 1

26 29050013741 配油器 O il distributor Y 1

27 29050013751 管 Tube Y 1

28 4011000723 螺栓G B5783-M 8*20-8.8 Bolt Y 2

29 29050013581 油分流块 Connection block Y 1

30 4011000966 螺栓G B5782-M 6*35-8.8 Screw Y 2

31 29050014701 螺塞 Plug Y 4

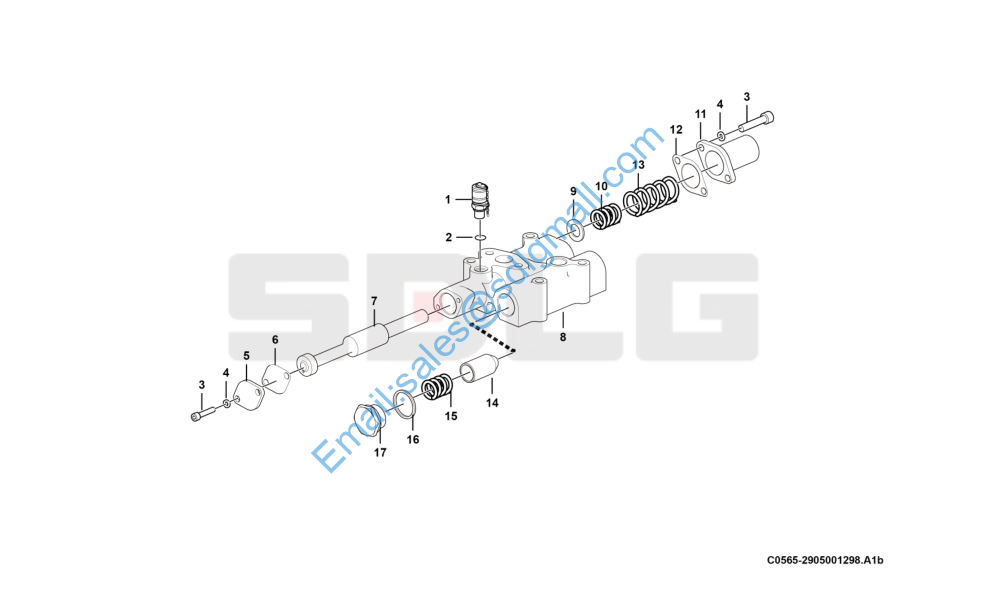

变矩器润滑阀 Lubricating oil valve C0565-2905001298

1 4120002109 测压接头SM K20-M 14*1.5-V E-SK Joint Y 1

2 4041000767 O 形圈LG B168-11124 O -ring Y 1

3 4014000058 螺钉G B70.1-M 6*20EpZn-8.8 Screw Y 4

4 4015000207 垫圈G B97.1-6EpZn-300H V W asher Y 4

5 29050015011 端盖 Cover N 1

6 29050015451 垫片 Shim Y 1

7 29050015061 阀杆 V alve slide N 1

8 29050015081 阀体 V alve housing N 1

9 29050015071 垫圈 W asher N 1

10 29050015041 弹簧 Spring Y 1

11 29050015001 端盖 Cover N 1

12 29050015441 垫片 Shim Y 1

13 29050015031 弹簧 Spring Y 1

14 29050015051 阀杆 V alve slide N 1

15 29050015021 弹簧 Spring Y 1

16 29050015331 垫圈 W asher N 1

17 29050015341 螺塞 Plug N 1
