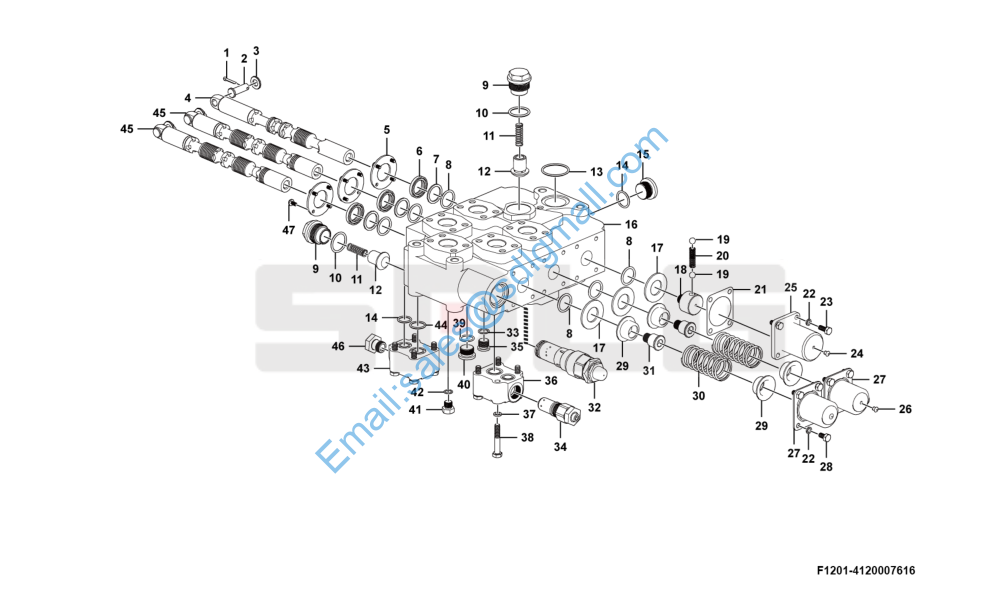

L955F 4120007616 多路阀 DFS-32Ⅲ-18.5（331005） Control valve

1 4016000035 开口销GB91-4*20EpZn-Q235A Split pin Y 3

2 4120002279101 圆肩销DF-32-01 Pin Y 3

3 4015000320 垫圈GB97.2-12-300HV Washer Y 3

4 4120001052104 动臂阀杆GDF-32Ⅲ-03c1 Valve rod Y 1

5 4120002279107 压板GDF-32-04 Plate Y 3

6 4120002432407 防尘圈CK28 Sealing ring Y 3

7 4120002432405 垫圈GDF-32-02 Washer Y 3

8 4120005747001 O型圈27.7×3.55 GB3452.1-82 O-ring N 6

9 4120002432410 单向阀座GDF-32-05 Valve seat N 2

10 4030000757 O形圈GB3452.1-31.5*3.55G O-ring Y 2

11 4120005199008 单向阀弹簧GDF-32-07 Valve spring N 2

12 4120005199009 单向阀GDF-32-08 Direction valve Y 2

13 4030000760 O形圈GB1235-50*3.1 O-ring Y 1

14 4030000013 O形圈GB1235-32*3.1 O-ring Y 3

15 4120005199028 螺塞DF-32-20A Plug Y 1

16 4120001052105 阀体GDF-32Ⅲ-01B Valve body N 1

17 4120002279114 垫板GDF-32-09A Plate Y 3

18 4120002432421 弹簧座GDF-32-15 Spring seat N 1

19 4120005747002 钢球GB308-7/16″ Ball Y 2

20 4120002432420 弹簧407428 Spring N 1

21 4120002432427 密封垫GDF-32-17 Sealing Y 3

22 28100003661 垫圈8（GB93） Washer N 12

23 4011000708 螺栓GB21-M8×20 Screw Y 4

24 4120002279121 端盖橡胶塞GDF-32-20 Rubber plug Y 1

25 4120002432428 端盖GDF-32-14B Valve cover Y 1

26 4120002279119 端盖橡胶塞GDF-32-19 Rubber plug Y 2

27 4120002432429 端盖GDF-32-12B Valve cover Y 2

28 4011001194 螺栓GB21-M8*15EpZn-8.8 Screw Y 8

29 4120002279118 弹簧压座GDF-32-11 Spring seat Y 4

30 4120002432425 回位弹簧GDF-32-16 Spring Y 2

31 4120002279116 弹簧座GDF-32-10a Spring seat N 2

32 4120007618002 安全阀XDY32G02-00A-18.5 Valve Y 1

33 3801000020 O型圈20×2.4 GB1235-76 O-ring Y 1

34 4120002059003 高压过载阀D32A.1-00b-20 Valve Y 1

35 4120001054222 螺塞D32-3 Plug Y 1

36 4120002432430 过载阀阀体ZL50106C1-01A Valve Y 1

37 4015000025 垫圈GB93-10-65Mn Spring washer Y 8

38 4011000050 螺栓GB5782-M10*60EpZn-8.8 Bolt Y 8

39 4030000281 O形圈GB3452.1-21.2*2.65G O-ring Y 1

40 4120005199026 螺塞GDF-25-18B Plug Y 1

41 4120005199025 测压口堵头GDF-32-18 Plug Y 1

42 4030000986 O形圈GB3452.1-11.8*2.1G O-ring Y 1

43 4120002432431 过载补油阀阀体 ZL50106C1-01 Valve Y 1

44 4120001054228 O型圈GB1235-76 28X3.1 O-ring Y 2

45 4120002279135 转斗阀杆GDF-32Ⅲ-06c1 Valve rod Y 1

46 4120002038161 低压过载阀XDYB20G01-00E-12 Valve Y 12

47 4120005747003 螺钉GB67-M6*11 Screw Y 2
