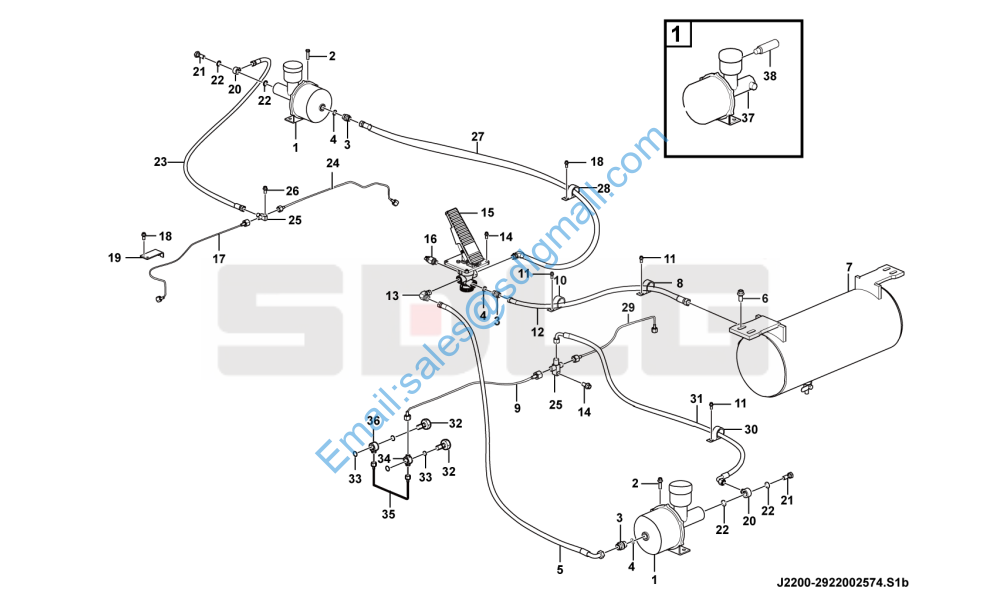

L955F 2922002574 行车制动总成 Travel brake system

1 29220028431 加力泵LG22-JLB-C 1 N 2

2 4011001294 螺栓GB16674.1-M10*20flZnyc-8.8-480 Screw Y 4

3 29220017601 直接头 Nipple Y 5

4 29220000811 垫圈 Washer Y 5

5 4041002643 软管LGB173-106340 Hose assembly Y 1

6 4011001337 螺栓GB16674.1-M12*20flZnyc-8.8-480 Screw Y 4

7 29220020851 储气罐 Air tank N 1

8 4041002412 管夹LGB169-A20*10 Clamp Y 1

9 29220001301 后桥左油管 Brake pipe Y 1

10 4041002417 管夹LGB169-B20*12.5 Clamp Y 3

11 4011001313 螺栓GB16674.1-M8*12flZnyc-8.8-480 Screw Y 5

12 4041002644 软管LGB173-106280 Hose assembly Y 1

13 29220016531 弯接头总成 Nipple Y 1

14 4011001295 螺栓GB16674.1-M8*25flZnyc-8.8-480 Screw Y 4

15 4120006889 气制动阀HP3514AD-1(LinG)35゜A Brake valve Y 1

16 4120003757 制动灯开关YK209KLA Pressure switch Y 1

17 29220001281 前桥左油管 Brake pipe Y 1

18 4011001297 螺栓GB16674.1-M8*16flZnyc-8.8-480 Screw Y 5

19 29220001121 前桥油管防护板 Protecting plate Y 2

20 29220001241 加力泵接头块 Nipple Y 2

21 29220001231 加力泵管接头 Bolt Y 2

22 4030000551 O形圈 O-ring Y 4

23 4041001027 软管LGB153-202046 Hose assembly Y 1

24 29220001291 前桥右油管 Brake pipe Y 1

25 29220000131 三通接头 Three-way nipple Y 2

26 4011001301 螺栓GB16674.1-M8*30flZnyc-8.8-480 Screw Y 2

27 4041002832 软管LGB173-106190 Hose assembly Y 1

28 4041002413 管夹LGB169-A25*10 Clamp Y 1

29 29220001311 后桥右油管 Brake pipe Y 1

30 4041002409 管夹LGB169-A10*10 Clamp Y 1

31 4041001195 软管LGB154-202200 Hose assembly Y 1
32 29220001251 制动器管接头 Nipple Y 8
33 4030000552 O形圈 O-ring Y 16
34 29220001271 制动器三通块 Block Y 4
35 29220001321 桥油管 Brake pipe Y 4
36 29220001261 制动器接头块 Block Y 4
37 4120009227 加力泵（不含呼吸器）LG22-JLB-C Pneumatic cylinder Y 2
38 4120008464 加力泵呼吸器 Breather cap Y 2
