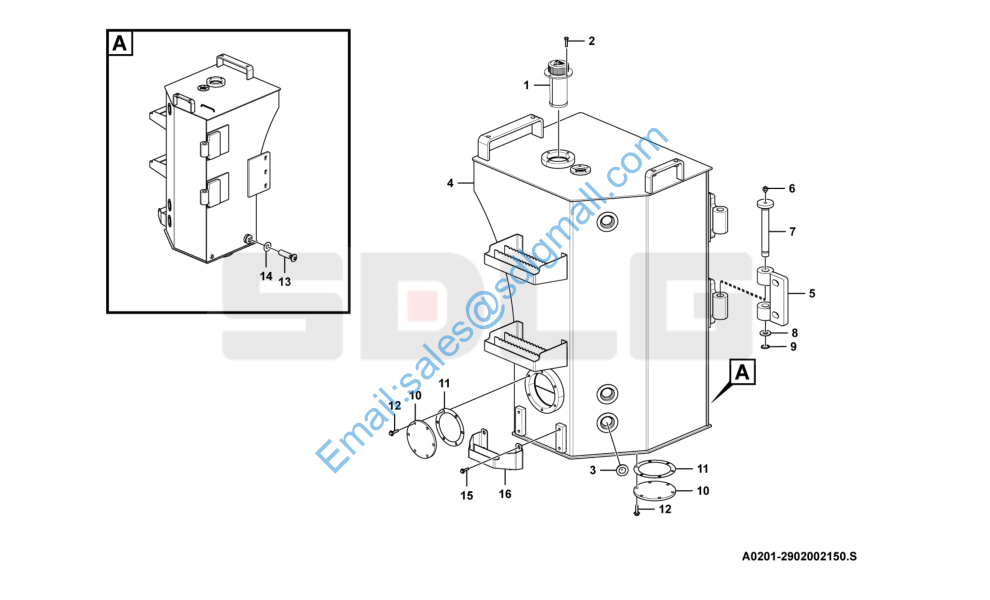

L955FC 2902002150 Fuel tank assembly

1 4120000081 液压空气过滤器QUQ2.5b Breather cap Y 1

2 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 4

3 4110000807 圆形油标YB-M42*1.5 Level gauge Y 3

4 29020021511 燃油箱体 Fuel tank N 1

5 29020001051 合页 Hinge Y 2

6 4030000101 油杯JB7940.2-45°M10*1 Lubricating nipple Y 2

7 29020001061 销轴 Pin Y 2

8 29020001071 垫圈 Washer Y 2

9 4015000130 挡圈GB894.1-25-65Mn Retaining ring Y 2

10 29020019491 法兰盖 Cover plate N 2

11 29020019481 垫圈 Washer N 2

12 4011000455 螺栓GB16674-M8*25EpZn-8.8 Bolt Y 16

13 29020019231 滤油器总成 Fuel filter Y 1

14 29020019031 垫圈 Washer N 1

15 4011000137 螺栓GB16674-M12*20EpZn-8.8 Bolt Y 4

16 29100029691 下踏板 Foot step Y 1
