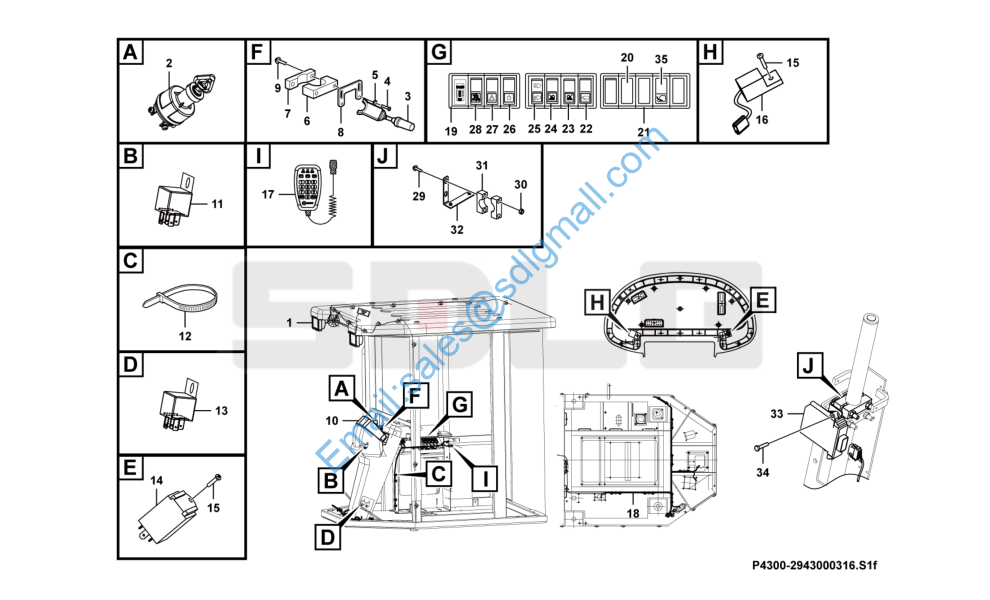

L953 2943000316 Electric equipment

1 4130001685 工作灯148*86-H3-24V Lamp Y 2

2 4130001342 电锁JK433B Starter switch Y 1

3 4130000290 转向开关JK802A Rocker switch Y 1

4 4014000026 螺钉GB818-M6*16EpZn-4.8 Screw Y 2

5 4015000207 垫圈GB97.1-6EpZn-300HV Washer Y 2

6 29370026241 固定座 Retainer Y 1

7 29370026231 管夹 Clamp Y 1

8 29370026251 支撑板 Support plate Y 1

9 4011000161 螺栓GB16674-M8*35EpZn-8.8 Bolt Y 2

10 4130001718 仪表盘ZL2-256T-OIL Display panel Y 1

11 4130000869 中间继电器024-1Z6GD2 Relay Y 5

12 4190001839 扎丝LG13-ZS4*160 Cable tie Y 24

13 4130000912 蓄电池继电器024-1H2T-80A Relay Y 2

14 4130000022 闪光器SG252 Flasher unit Y 1

15 4014000066 螺钉GB845-ST4*10-C-H Screw Y 2

16 4130001291 蜂鸣器FM251S Buzzer Y 1

17 4130002691 键盘BOSTON3_KEYBOARD10 Keyboard Y 1

18 29430003187 仪表台线束 Cable harness Y 1

19 4130000498 侧边单框架JK931-01CKJ Switch panel Y 6

20 4130000496 盖板JK931-01GB Cover plate Y 3

21 4130000497 中间单框架JK931-01ZKJ Switch panel Y 7

22 4130000493 刮雨器开关JK931-01GYQ Rocker switch N 1

23 4130000491 后照灯开关JK931-01HZD Rocker switch N 1

24 4130000490 前照灯开关JK931-01QZD Rocker switch Y 1

25 4130000555 前大灯开关JK931-01QDD Rocker switch Y 1

26 4130000489 背光灯开关JK931-01BGD Rocker switch Y 1

27 4130000492 警示灯开关JK931-01JSD Rocker switch Y 1

28 4130001052 静音开关JK931-01JY Rocker switch Y 1

29 4011000476 螺栓GB16674-M10*70EpZn-8.8 Bolt Y 2

30 4013000007 螺母GB6170-M10EpZn-8 Nut Y 2

31 29310011251 固定板 Anchor plate Y 2
32 29430004941 支架 Plate Y 1
33 4130002790 GPS终端BOSTON3-2.0 Control unit Y 1
34 4014000058 螺钉GB70.1-M6*20EpZn-8.8 Screw Y 2
35 4130002779 新风开关JK931-01XF Rocker switch Y 1
