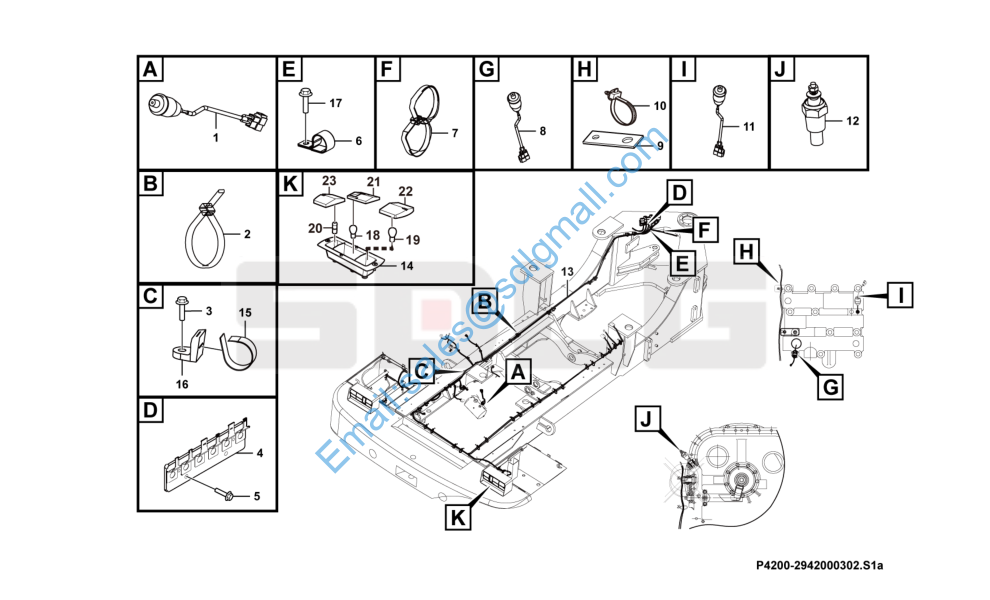

L953 2942000302 Rear frame electric assembly

1 4130001412 制动压力开关YK-ZD Pressure switch Y 1

2 4190001839 扎丝LG13-ZS4*160 Cable tie Y 45

3 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 2

4 29370025671 固定板 Plate Y 1

5 4011000153 螺栓GB16674-M6*16EpZn-8.8 Bolt Y 2

6 4041002411 管夹LGB169-A15*10 Clamp Y 1

7 4190001835 扎丝RTGB-370ST Cable tie Y 4

8 4130001294 隔膜式压力开关310-LGK1 Pressure switch Y 1

9 29370018861 支板 Bracket Y 2

10 4190001095 扎丝N90666101 Cable tie Y 6

11 4130001300 压力开关YK215B1 Pressure switch Y 1

12 4130000202 温度传感器WDG1371 Temperature sensor Y 1

13 29420003033 后车架线束 Cable harness Y 1

14 4130001134 后尾灯LRHD-24V Tail light Y 2

15 14400341 扎带 Strip clamp Y 2

16 14400340 扎带座 Strip clamp Y 2

17 4011000807 螺栓GB16674-M8*12EpZn-8.8 Bolt Y 3

18 4130000915 灯泡PHILIPS 13499(24V 21W/5W) Bulb Y 2

19 4130000618 灯泡PHILIPS 13498(24V 21W) Bulb Y 2

20 4130000916 灯泡PHILIPS 13814(24V 10W) Bulb Y 2

21 4130001132001 琥珀色灯罩 Lamp shroud N 2

22 4130001132002 红色灯罩 Lamp shroud N 2

23 4130001132003 白色灯罩 Lamp shroud N 2
