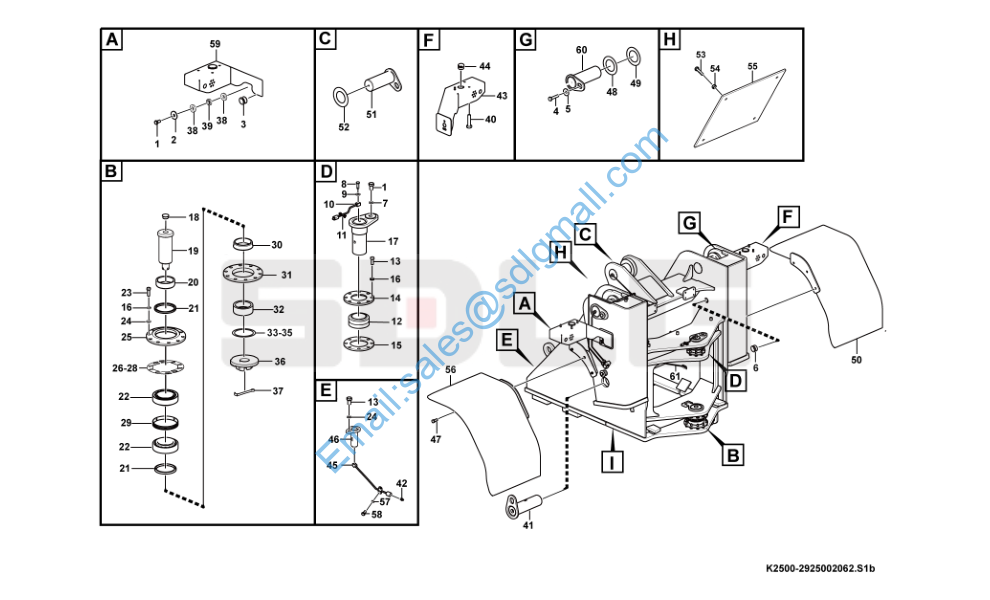

L952 2925002062 Accessories

1 4011001270 螺栓GB5783-M10*35flZnyc-8.8-480 Screw Y 8

2 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 14

3 29250001361 走线胶套 Rubber sleeve Y 2

4 4011001261 螺栓GB5783-M16*30flZnyc-8.8-480 Screw Y 6

5 4040000002 垫圈LGB001-16 Washer Y 5

6 29250001351 走线胶套 Rubber sleeve Y 2

7 29250018651 垫片18*55*10 Shim Y 1

8 29250000291 通油螺栓 Bolt Y 3

9 29250000301 垫片 Shim Y 6

10 29250001211 油管 Lubricating pipe Y 1

11 29250000311 管夹 Clamp Y 3

12 4021000043 关节轴承GB9163-GE70ES-2RS Spherical plain bearing Y 1

13 4011001250 螺栓GB5783-M12*30flZnyc-8.8-480 Screw Y 18

14 29250001031 法兰 Flange Y 1

15 29250001051 联接板 Flange Y 1

16 4015000026 垫圈GB93-12-65Mn Spring washer Y 36

17 29250001081 上铰接销 Pin Y 1

18 29270009421 塑料塞 Plastic plug Y 1

19 29250017661 下铰接销 Pin Y 1

20 29250009441 套 Sleeve Y 1

21 4043000057 防尘圈LGB307-95 Sealing ring Y 2

22 4021000058 轴承GB297-33116 Roller bearing Y 2

23 4011001243 螺栓GB5783-M12*35flZnyc-8.8-480 Screw Y 20

24 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 22

25 29250000091 盘 Flange Y 1

26 29250000061 垫片 Shim Y 2

27 29250000071 垫片 Shim Y 2

28 29250000081 垫片 Shim Y 2

29 29250000051 间隔套 Sleeve Y 1

30 29250009451 套 Sleeve Y 1

31 29250009461 盘 Flange Y 1

32 29250009421 套 Sleeve Y 1

33 29250017701 垫片 Shim Y 1

34 29250017721 垫片 Shim Y 1

35 29250017711 垫片 Shim Y 1

36 29250017691 开槽螺母 Nut Y 1

37 4016000043 开口销GB91-8*80EpZn-Q235A Split pin Y 1

38 16835582 RUBBER DAMPER Rubber damper N 16

39 16835953 TUBE Tube N 8

40 4011001248 螺栓GB5783-M10*25flZnyc-8.8-480 Screw Y 6

41 4043001060 销轴LGB301-85*150*290-1A11G Weld pin Y 2

42 4030000065 油杯JB7940.1-M10*1 Lubricating nipple Y 9

43 29250018181 右灯架 Lamp bracket Y 1

44 29250008461 走线胶套 Rubber sleeve Y 2

45 29250022321 油管 Lubricating pipe Y 1

46 29250018341 转向销轴 Pin Y 2

47 4011001240 螺栓GB16674-M12*25flZnyc-8.8-480 Screw Y 6

48 4043000037 垫片LGB303-95*150*1 Shim Y 4

49 4043000038 垫片LGB303-95*150*2 Shim Y 4

50 29250010901 右前挡泥瓦 Front fender Y 1

51 4043000017 销轴LGB301-95*133*250G-40Cr Weld pin Y 1

52 4043000040 垫片LGB303-95*160*1 Shim Y 4

53 4011001280 螺栓GB5783-M10*40flZnyc-8.8-480 Screw Y 5

54 4043002603 防松套LGB331-10*20*16flZnyc-45 Attaching sleeve Y 5

55 29140014801 前盖板 Cover plate Y 1

56 29250010881 左前挡泥瓦 Front fender Y 1

57 4015000213 垫圈GB93-6EpZn-65Mn Washer Y 6

58 4014000510 螺钉GB818-M6*10flZnyc-4.8-480 Screw Y 6

59 29250018171 左灯架 Lamp bracket Y 1

60 4043000020 销轴LGB301-95*149R*285G-40Cr Weld pin Y 2

61 29250022821 油管 Lubricating pipe Y 1
