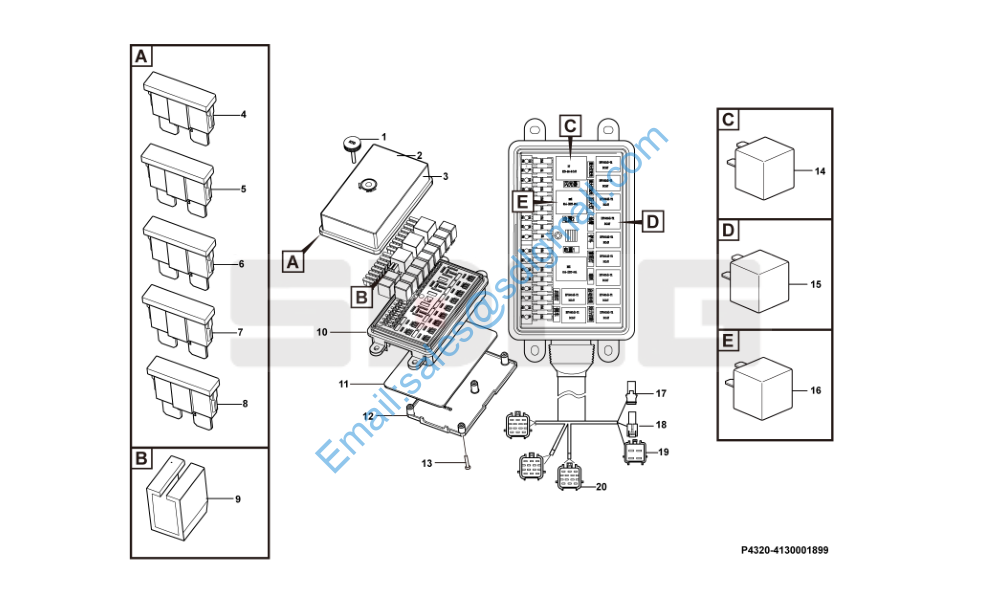

G9165 4130001899 中央电器控制盒(410707) Fuse and relay unit

1 4130001639 旋钮 Knob N 1
2 4130001904 标识 Decal set N 1
3 4130001640 控制盒上盖 Cover N 1
4 4130001324 保险片ATS 5A Fuse Y 1
5 4130001327 保险片ATS 10A Fuse Y 13
6 4130001649 保险片ATS 15A Fuse Y 1
7 4130001332 保险片ATS 25A Fuse Y 1
8 4130001648 保险片ATS 30A Fuse Y 1
9 4130001330 保险夹 Clamp N 1
10 4130001678 CONTROL BOX PEDESTAL CECB-5 Control box N 1
11 4130001905 PCB板L1-24F17R1402 Plate N 1
12 4130001647 控制盒底盖 Cover N 1
13 4130001720 螺钉GB845-M3*16 Screw N 5
14 4130001399 闪光器RTD-SG-B Flasher unit Y 1
15 4130001398 继电器HFV6024Z-TR Relay Y 11
16 4130000912 蓄电池继电器024-1H2T-80A Relay Y 2
17 4130001400 护套总成DJ7.14-7.8-21 Protecting cover N 1
18 4130001401 护套总成DJ7014-7.8-11 Protecting cover N 1
19 4130001677 KET护套总成MG610331 Casing N 1
20 4130001402 KET护套总成MG610350 Casing N 3
