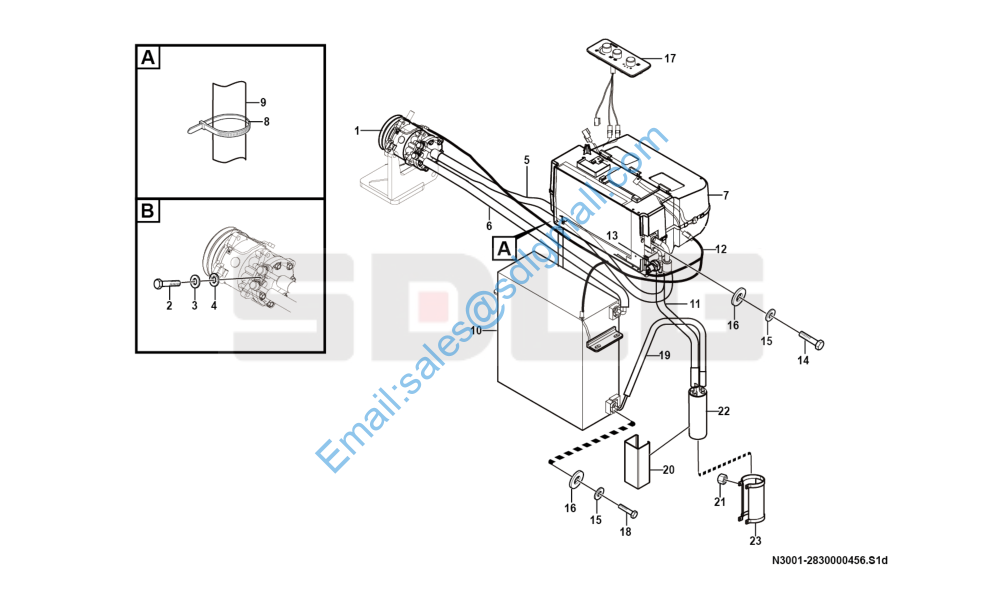

G9165 2830000456 平地机空调系统 Air conditioning unit
G9165 2830000456 平地机空调系统 Air conditioning unit
1 4190002758 压缩机 Compressor Y 1
2 4011001074 螺栓GB5786-M10*1.25*35EpZn-8.8 Screw Y 1
3 4015000025 垫圈GB93-10-65Mn Spring washer Y 1
4 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 1
5 4190002913 蒸压管 Evaporator pipe Y 1
6 4190002912 压冷管 Evaporator pipe Y 1
7 4190003082 蒸发器总成 Evaporator system N 1
8 4019000023 扎丝 LG13-ZS4*185 Cable tie Y 2
9 4190003468 排水管组件 Water pipe Y 2
10 4190002909 冷凝器总成 Condenser Y 1
11 4190002910 储蒸管 Evaporator pipe Y 1
12 4190002914 连接线束 Wiring harness Y 1
13 4190002765 压力开关 Switch Y 1
14 4011000276 螺栓GB5783-M6*25EpZn-8.8 Bolt Y 7
15 4015000035 垫圈GB93-6-65Mn Spring washer Y 5
16 4015000207 垫圈GB97.1-6EpZn-300HV Washer Y 9
17 4190002760 控制面板 Panel N 1
18 4011000291 螺栓GB5783-M6*30EpZn-8.8 Screw Y 2
19 4190002911 冷储管 Evaporator pipe Y 1
20 4190002867 储液器护套 Rubber sleeve Y 1
21 4013000211 螺母GB889.1-M6EpZn-8 Nut Y 2
22 4190002863 储液器 Reservoir Y 1
23 4190002864 储液器支架 Bracket Y 1
