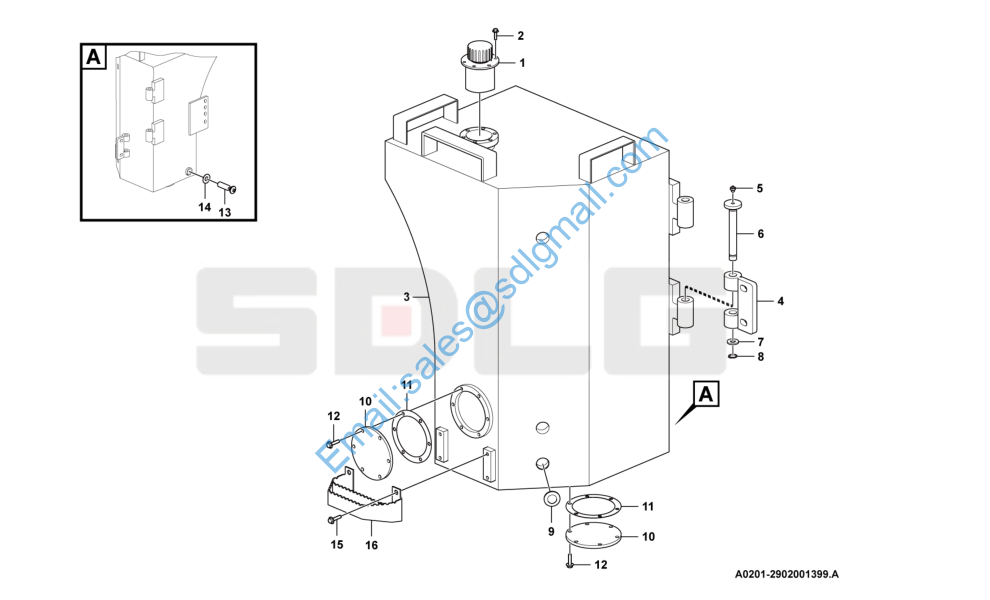

LG953 2902001399 燃油箱总成 Fuel tank assembly

Key Part No. Description Spare parts Y/N Qty Remarks

1 4110000613 带锁加油滤清器QL8 Fuel filter Y 1

2 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 4

3 29020013981 燃油箱体 Fuel tank N 1

4 29020001051 合页 Hinge Y 2

5 4030000101 油杯JB7940.2-45°M10*1 Lubricating nipple Y 2

6 29020001061 销轴 Pin Y 2

7 29020001071 垫圈 Washer Y 2

8 4015000130 挡圈GB894.1-25-65Mn Retaining ring Y 2

9 4110000807 圆形油标YB-M42*1.5 Level gauge Y 3

10 29020001081 法兰盖 Cover plate Y 2

11 29020001091 垫圈 Washer Y 2

12 4011000474 螺栓GB16674-M10*25EpZn-8.8 Bolt Y 16

13 29020001101 滤油器总成 Fuel filter Y 1

14 29020007931 垫圈 Washer Y 1

15 4011000137 螺栓GB16674-M12*20EpZn-8.8 Bolt Y 4

16 29020012601 下踏梯 Step Y 1
