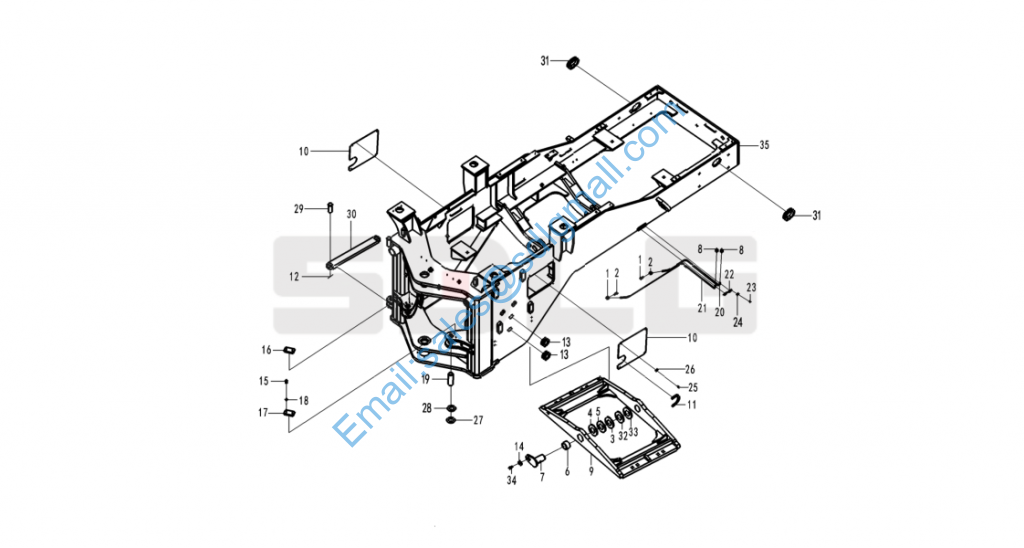

LG944MSK 2926000971/2927001504 后车架及附件总成 Rear frame system

1 29250000291 通油螺栓 Bolt Y 2

2 29250000301 垫片 Shim Y 4

3 29270001051 调整垫片 Shim Y 2

4 29270001061 调整垫片 Shim Y 2

5 29270001071 调整垫片 Shim Y 2

6 29270007831 套 Bushing Y 2

7 29270008591 焊接销轴 Pin Y 2

8 4030000065 油杯JB7940.1-M10*1 Lubricating nipple Y 4

9 29270015051 副车架 Rear axle bridge Y 1

10 29270008551 盖板 Cover plate Y 2

11 29270007792 橡胶套 Rubber sleeve Y 2

12 4016000040 开口销GB91-6.3*50EpZn-Q235A Split pin Y 2

13 29270007551 走线胶套 Rubber sleeve Y 2

14 4040000001 垫圈LGB001-12 Washer Y 2

15 4011000197 螺栓GB5783-M12*25EpZn-8.8 Bolt Y 4

16 29250001111 卡板 Plate Y 2

17 29250001121 卡板 Plate Y 2

18 4015000026 垫圈GB93-12-65Mn Spring washer Y 4

19 29270007971 后转向销 Pin Y 2

20 29270007751 后输油管 Lubricating pipe Y 1

21 29270007771 前输油管 Lubricating pipe Y 1

22 29250000311 管夹 Clamp Y 2

23 4014000024 螺钉GB818-M6*10EpZn-4.8 Screw Y 4

24 4015000035 垫圈GB93-6-65Mn Spring washer Y 4

25 4011000102 螺栓GB5783-M8*16EpZn-8.8 Bolt Y 8

26 4015000256 垫圈GB96.1-8EpZn-300HV Washer Y 8

27 4043000064 垫片LGB303-40*70*1 Shim Y 4

28 4043000325 垫片LGB303-40*70*2 Shim Y 4

29 4016000222 销轴GB882-B30*80EpZn-35 Clevis pin Y 2

30 29270008891 锁定杆 Transport lock Y 1

31 29270009101 走线胶套 Rubber sleeve Y 2
32 29270009311 调整垫片 Shim Y 2
33 29270009321 调整垫片 Shim Y 2
34 4011000087 螺栓GB5783-M12*20EpZn-8.8 Screw Y 2
35 29260009713 后车架 Rear frame Y 1
