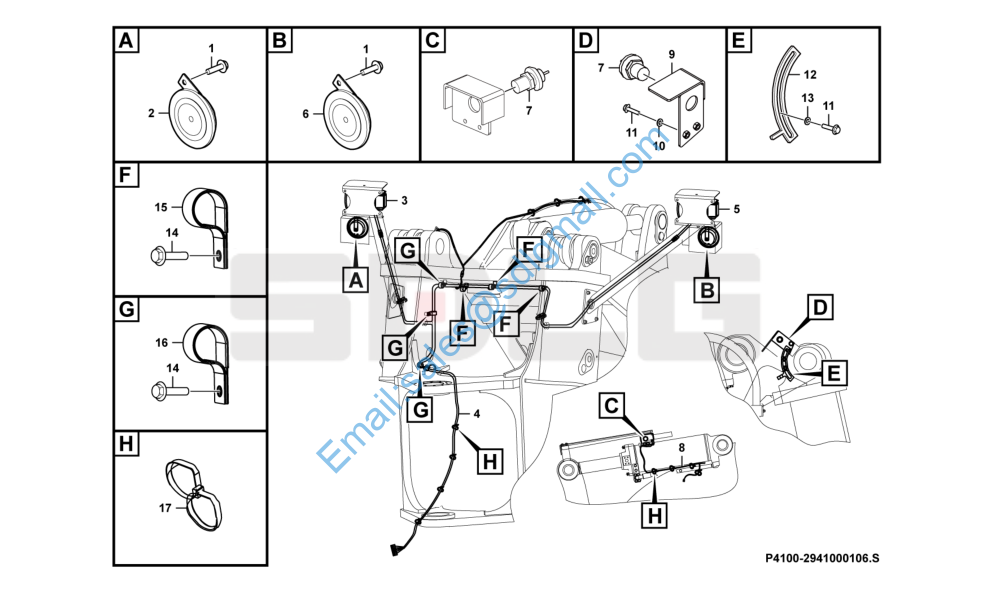

LG956L 2941000106 前车架电气总成 Front frame electric system

1 4011000152 螺栓GB16674-M6*10EpZn-8.8 Bolt Y 2

2 4130001287 盆型喇叭DL125-100L Horn Y 1

3 4130001731 左前组合灯LFLDH4-1-24V Lamp Y 1

4 29410001032 前车架线束 Wiring harness Y 1

5 4130001732 右前组合灯LFRDH4-1-24V Lamp Y 1

6 4130001286 盆型喇叭DL125-100H Horn Y 1

7 4130001028 接近开关J7-D10B1/DC Position switch Y 2

8 29410000301 接近开关过渡线束 Wiring harness Y 1

9 29140007541 接近开关支架 Bracket Y 1

10 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 2

11 4011000087 螺栓GB5783-M12*20EpZn-8.8 Screw Y 4

12 29140007551 动臂指示板 Indicator plate Y 1

13 4015000186 垫圈GB96.1-12EpZn-300HV Washer Y 2

14 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 11

15 4041002410 管夹LGB169-A12*10 Clamp Y 4

16 4041002411 管夹LGB169-A15*10 Clamp Y 3

17 4190001838 扎丝RTGB-370HD-S Cable tie Y 10
