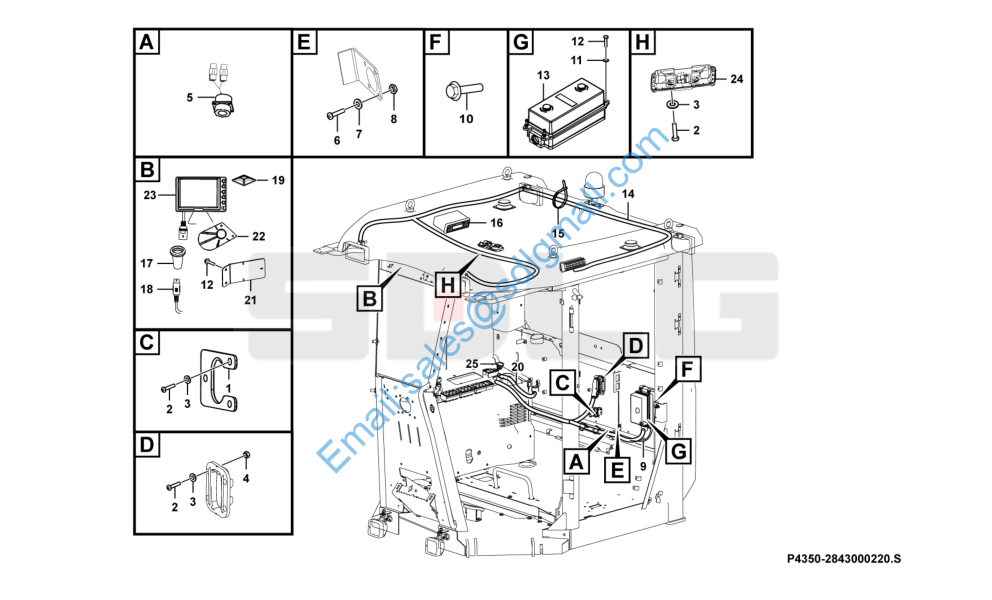

G9190 2843000220 驾驶室内置电气 Cab electric system

1 28430000741 固定支架 Bracket Y 1

2 4014000042 螺钉GB818-M5*20EpZn-4.8 Screw Y 10

3 4015000110 垫圈GB97.1-5EpZn-300HV Washer Y 10

4 4013000118 螺母GB6170-M5EpZn-8 Nut Y 4

5 11210355 套筒 Socket Y 1

6 4014000267 螺钉GB818-M3*10EpZn-4.8 Screw Y 4

7 4015000200 垫圈GB97.1-3EpZn-300HV Washer Y 4

8 4013000159 螺母GB6170-M3EpZn-8 Nut Y 4

9 28430002212 仪表台线束 Wiring harness N 1

10 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 1

11 4015000207 垫圈GB97.1-6EpZn-300HV Washer Y 4

12 4011000153 螺栓GB16674-M6*16EpZn-8.8 Bolt Y 6

13 4130002658 中央电器控制盒H1-24F29R1600 Fuse and relay unit Y 1

14 28430000991 驾驶室线束 Cable harness Y 1

15 4190000020 扎丝LG13-ZS4*250 Cable tie Y 70

16 29290033811 无收音机机体模块 Substitute for radio N 1

17 4043003027 密封护套LGB346-3*30*28 Rubber sleeve Y 1

18 4130002033 视频电源转接线AE-CB112 Wire Y 1

19 4190001836 扎丝固定座GN-4A Seat Y 3

20 4130001485 转接线 Wiring harness Y 1

21 29310020241 弯板 Plate Y 1

22 4130001486 安装装置 Bracket Y 1

23 4130002031 彩色液晶显示器AE-SV70L Display panel Y 1

24 4130001413 室内灯24-6212-24V Lamp Y 1

25 4130000700 点烟器插头8EZ008022-011 Cigarette lighter Y 1
