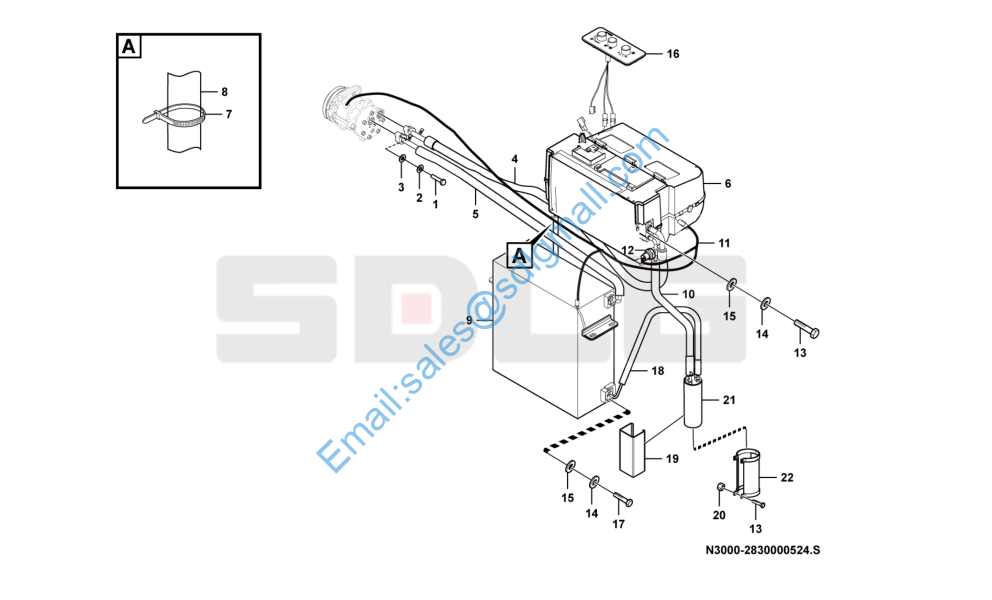

G9190 2830000524 CE平地机空调系统 Air conditioning system

1 4011000107 螺栓GB5783-M8*30EpZn-8.8 Bolt Y 2

2 4015000036 垫圈GB93-8-65Mn Spring washer Y 2

3 4015000072 垫圈GB97.1-8EpZn-300HV Washer Y 2

4 4130002697 蒸压管GK33-5.0P3-20 Evaporator pipe Y 1

5 4130002698 压冷管GK33-5.0P3-10 Connecting hose Y 1

6 4130002699 蒸发器GKZ33-5.0P3 Evaporator Y 1

7 4019000023 扎丝 LG13-ZS4*185 Cable tie Y 2

8 4190003468 排水管组件 Water pipe Y 2

9 4130002679 冷凝器总成GKL33-5.0P3 Condenser Y 1

10 4190002910 储蒸管 Evaporator pipe Y 1

11 4130002703 连接线束GK33-5.0P3-30 Connecting wire Y 1

12 4190002765 压力开关 Switch Y 1

13 4011000276 螺栓GB5783-M6*25EpZn-8.8 Bolt Y 7

14 4015000035 垫圈GB93-6-65Mn Spring washer Y 5

15 4015000207 垫圈GB97.1-6EpZn-300HV Washer Y 9

16 4190002760 控制面板 Panel N 1

17 4011000291 螺栓GB5783-M6*30EpZn-8.8 Screw Y 2

18 4190002911 冷储管 Evaporator pipe Y 1

19 4190002867 储液器护套 Rubber sleeve Y 1

20 4013000211 螺母GB889.1-M6EpZn-8 Nut Y 2

21 4190002863 储液器 Reservoir Y 1

22 4190002864 储液器支架 Bracket Y 1
