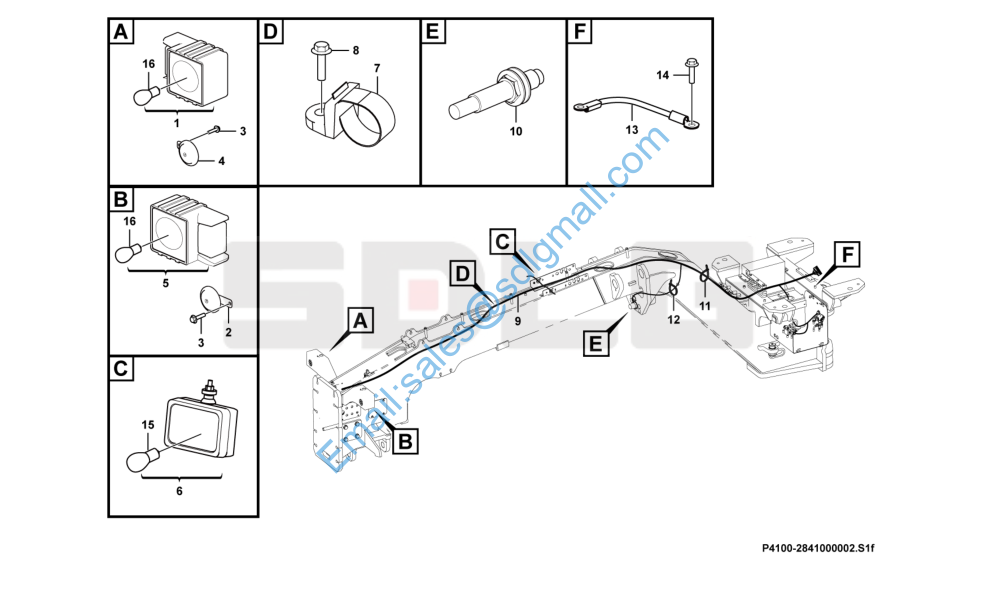

G9220 2841000002 前车架电气总成 Front frame electric system

1 4130001732 右前组合灯LFRDH4-1-24V Lamp Y 1

2 4130002557 盆型喇叭DL125-100L-01 Horn Y 1

3 4011000153 螺栓GB16674-M6*16EpZn-8.8 Bolt Y 2

4 4130002556 盆型喇叭DL125-100H-01 Horn Y 1

5 4130001731 左前组合灯LFLDH4-1-24V Lamp Y 1

6 4130001101 工作灯A0782A606400 Work lamp Y 2

7 14400342 扎带 Strip clamp Y 10

8 4011000458 螺栓GB16674-M8*20EpZn-8.8 Bolt Y 10

9 28320003832 前车架线束 Wiring harness Y 1

10 4130002002 接近开关J3-D2B2/DC Position switch Y 1

11 4190000020 扎丝LG13-ZS4*250 Cable tie Y 6

12 4190001832 扎丝RTGB-200ST Cable tie Y 6

13 29370023221 接地线P15*500 Battery cable Y 1

14 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 2

15 4130001103 灯泡64156 Bulb N 2

16 4130002035 灯泡PHILIPS 13961(24V4W) Bulb Y 2
