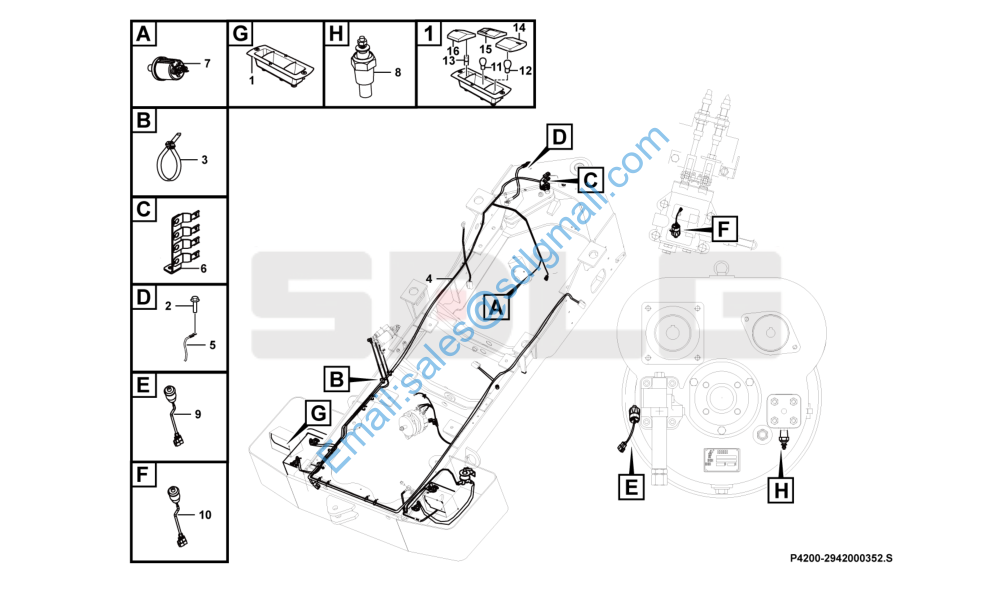

LG916 2942000352 后车架电气总成 Rear frame electric assembly

1 4130001134 后尾灯LRHD-24V Tail light Y 2
2 4011000461 螺栓GB16674-M816EpZn-8.8 Bolt Y 5 3 4190001839 扎丝LG13-ZS4160 Cable tie Y 30
4 29420003532 后车架线束 Wiring harness Y 1
5 29370023221 接地线P15*500 Battery cable Y 1
6 29370022731 插件支架 Bracket Y 1
7 4130001412 制动压力开关YK-ZD Pressure switch Y 1
8 4130000202 温度传感器WDG1371 Temperature sensor Y 1
9 4130001300 压力开关YK215B1 Pressure switch Y 1
10 4130001294 隔膜式压力开关310-LGK1 Pressure switch Y 1
11 4130000915 灯泡PHILIPS 13499(24V 21W/5W) Bulb Y 2
12 4130000618 灯泡PHILIPS 13498(24V 21W) Bulb Y 2
13 4130000916 灯泡PHILIPS 13814(24V 10W) Bulb Y 2
14 4130001132001 琥珀色灯罩 Lamp shroud N 2
15 4130001132002 红色灯罩 Lamp shroud N 2
16 4130001132003 白色灯罩 Lamp shroud N 2
