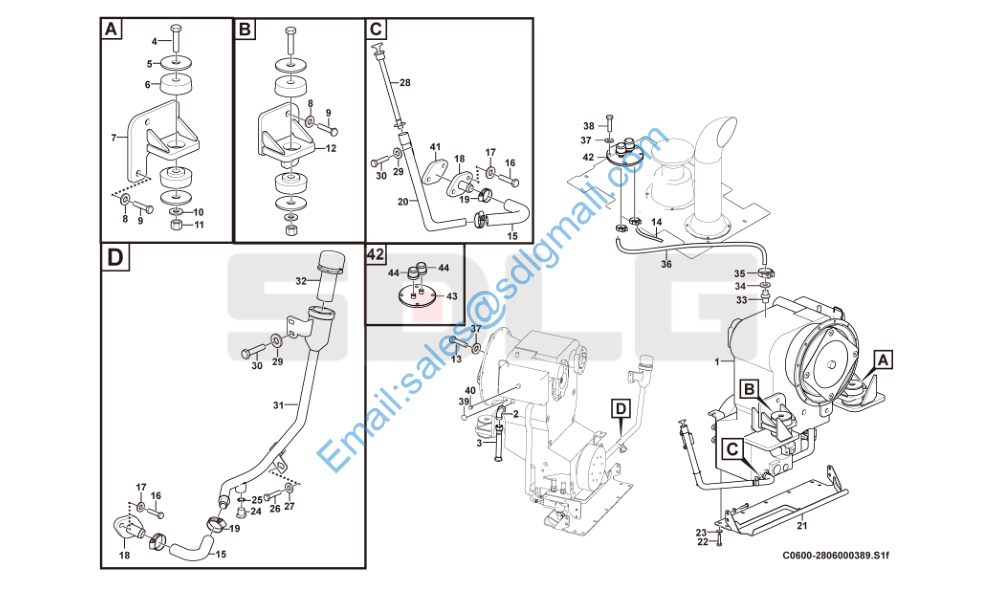

G9220 2806000389 变速箱总成 Transmission assembly

1 4110002230 G9190变速箱总成4644 026 376 Transmission Y 1

2 4120000145 过渡接头EW28LOMDA3C Nipple Y 1

3 28060003111 油管 Tube Y 1

4 4011000378 螺栓GB5785-M24*2*160EpZn-8.8 Bolt Y 2

5 29050019331 垫圈 Washer Y 4

6 4110001527 减震器CBB114 Absorber Y 4

7 28060002951 右连接座 Transmission mounting Y 1

8 4015000176 垫圈GB97.1-20EpZn-300HV Washer Y 4

9 4011000168 螺栓GB5783-M20*40EpZn-8.8 Screw Y 4

10 28060003861 厚垫圈24 Washer Y 2

11 4013000157 螺母GB889.2-M24*2EpZn-8 Lock nut Y 2

12 28060002991 左连接座 Transmission mounting Y 1

13 4011000084 螺栓GB5783-M10*30EpZn-8.8 Bolt Y 12

14 4120005835 胶管JB8406-B10*1800 Hose Y 1

15 28060003161 胶管 Hose Y 2

16 4011000106 螺栓GB5783-M8*25EpZn-8.8 Bolt Y 4

17 4015000072 垫圈GB97.1-8EpZn-300HV Washer Y 4

18 28060003041 法兰口 Flange Y 2

19 4017000008 喉箍JB8870-d40 Clamp Y 4

20 28060003881 油标尺管 Dipstick tube Y 1

21 28060003611 挡泥板总成 Fender Y 1

22 4011000089 螺栓GB5783-M12*30EpZn-8.8 Bolt Y 11

23 28120002011 厚垫圈12 Washer Y 11

24 4041000508 螺塞LGB135-01824 Plug Y 1

25 4041000768 O形圈LGB168-11524 O-ring Y 1

26 4011000080 螺栓GB5783-M10*16EpZn-8.8 Bolt Y 1

27 4015000197 垫圈GB96.1-10EpZn-300HV Washer Y 1

28 4110002030 油标尺总成-LGG8190 Dipstick Y 1

29 4015000256 垫圈GB96.1-8EpZn-300HV Washer Y 4

30 4011000105 螺栓GB5783-M8*20EpZn-8.8 Bolt Y 4

31 28060003071 加油口 Inlet pipe Y 1

32 4120005563 加油滤清器4120005563 Oil filter Y 1

33 28060003361 接头 Nipple Y 1

34 4015000140 垫圈JB982-10 Washer Y 1

35 4017000010 喉箍JB8870-d20 Clamp Y 3

36 4030000427 胶管JB8406-B10*1000 Hose Y 1

37 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 16

38 4011000082 螺栓GB5783-M10*25EpZn-8.8 Bolt Y 4

39 4041000775 O形圈LGB168-21124 O-ring Y 1

40 4130001612 压力开关YK-ZF Pressure switch Y 1

41 28060005601 密封垫 Gasket Y 2

42 28060005611 呼吸器总成 Breather cap N 1

43 28060005621 呼吸器座 Seat Y 1

44 4120005062 呼吸器SPB-S-1-10-B04-O Breather cap Y 2
